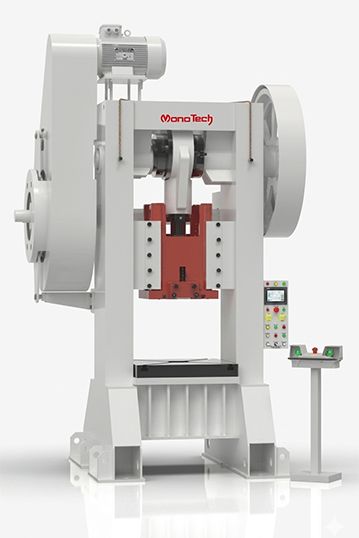

H Type Pneumatic Power Press
Product Overview
Monotech Engineers Pvt Ltd proudly introduces its robust H Type Pneumatic Power Press — a perfect synergy of structural strength, pneumatic speed, and production precision. Engineered for high-volume operations in metal stamping, punching, embossing, and forming, our presses are available in capacities ranging from 10 Ton to 400 Ton, delivering unmatched performance in industrial manufacturing lines.
Applications of C-Type Mechanical Press
Stamping & Blanking
Precise cut-outs and sheet separation with high accuracy.
Bending & Forming
Fast and repeatable shaping of metal components.
Embossing
Creating raised or recessed detailing on metal surfaces.
Trimming & Piercing
Clean trimming and accurate hole creation.
Coining
High-force precision shaping for detailed parts.
Automotive Parts
Manufacturing brackets, clips, panels, and structural parts.
Electrical Panels
Production of boxes, covers, and enclosures for electrical systems.
Product Range
| Capacity | 10 TON | 20 TON | 30 TON | 50 TON | 75 TON | 100 TON | 150 TON | 200 TON | 250 TON | 300 TON | 400 TON |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C Type | 330x483 | 368x559 | 406x660 | 508x254 | 559x813 | 686x940 | 737x1016 | 813x1219 | 864x1321 | 965x1422 | 1016x1524 |
| H Type | - | - | 457x457 | 558x558 | 610x610 | 711x711 | 762x762 | 864x864 | 914x914 | 965x965 | 1016x1016 |
| Gap | 330 | 381 | 432 | 483 | 533 | 610 | 635 | 660 | 686 | 711 | 762 |
| Stroke | 64 | 76 | 89 | 102 | 127 | 152 | 152 | 178 | 178 | 203 | 203 |
| Main Shaft | 76 | 89 | 102 | 121 | 140 | 165 | 210 | 121 | 229 | 254 | 279 |
| Wheel | 584 | 635 | 711 | 864 | 914 | 1016 | 1118 | 1219 | 1321 | 1422 | 1524 |
| Gear | 457 | 559 | 610 | 711 | 813 | 965 | 1069 | 1219 | 1321 | 1422 | 1524 |
| Punch Bore | 28 | 32 | 35 | 38 | 45 | 50 | 55 | 60 | 65 | 70 | 75 |
| Total Height | 1702 | 1905 | 2057 | 2413 | 2413 | 2540 | 2794 | 3048 | 3302 | 3556 | 3810 |
* Capacities rated for MS. (LTS 45g/mm²) Bending capacities stated are only representative and non dinding. Allow extra capacity nditions. Right to change specification, features without entice reserved. Compliance with safety requirements as per local regulations is responsibility of the user
Design & Construction
- ✔Pressing Capacity: 10 to 400 Ton (customized as per application)
- ✔Frame Type: H Type Pillar Frame – optimized for centralized load distribution and rigidity
- ✔Bed Size: 400 mm x 600 mm up to 1000 mm x 1600 mm
- ✔Stroke Length & Speed: Adjustable stroke lengths with high-speed repetitive operation
- ✔Actuation System: Pneumatic drive system for consistent and rapid ram movement
- ✔Tool Area: Wide bolster with T-slot bed and ram for die mounting
- ✔Structure: Heavily ribbed mono-block steel frame for vibration resistance and minimal deflection

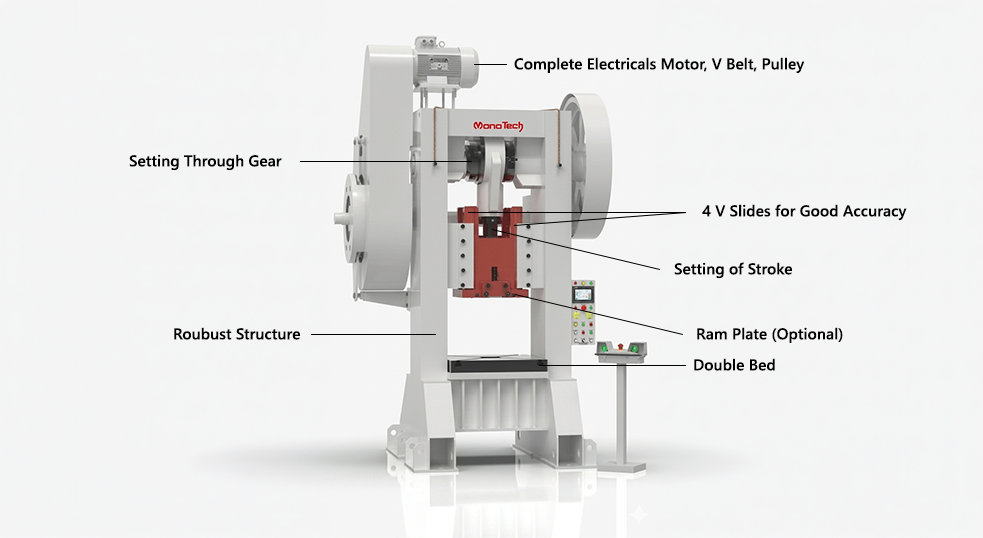

- ✔Guiding Mechanism: Four-pillar design with hardened steel bushes ensures alignment accuracy
What Makes Our Design Unique?
At Monotech Engineers, our H Type Pneumatic Power Press is designed to withstand industrial stress while maintaining precision and operator comfort. What sets our design apart:
- ✔H-Type Mono-Block Frame:Ensures minimal deflection and high-load endurance for extended machine life
- ✔Pneumatic Cylinder with Air Regulators: Ensures operator safety during emergency stops and overload conditions
- ✔High Precision Ram Guides: Designed to maintain alignment even under eccentric loads
- ✔Spacious Tooling Area: Accommodates a wide range of dies and multi-stage operations
- ✔Vibration-Free Operation:Reinforced foundation with dynamic balancing for silent, smooth performance
Key Features & Accessories
Performance-Driven Design
Built for Strength: Rugged C-Frame Design
The crankshaft and flywheel system ensures uniform power delivery throughout the stroke, even in high-load applications.
Consistent Force Delivery
The crankshaft and flywheel system ensures uniform power delivery throughout the stroke, even in high-load applications.
Boost Your Productivity with Automatic Feeding
Integrate an automatic feeding system to accelerate material handling and improve cycle times. Key Benefits: • Ideal for high-volume applications • Reduces manual loading time • Ensures consistent, accurate feeding for smooth production
High-Speed Production
Our machines are optimized for rapid cycle times, making them suitable for mass production environments where output matters.
Advanced Ram Guidance
Linear guides and precision bushings provide smooth ram travel and reduce wear, enabling high-accuracy performance across multiple shifts.
Quick Die Changeover
Removable bolster plates allow fast tool changes, reducing downtime and enhancing operational flexibility.
Built for Strength & Stability
Our mechanical presses feature a stress-relieved, single-piece welded C-frame structure that minimizes deflection, ensuring long-term accuracy and durability.
Want to Know More?
Download our brochure or request more information to learn how Monotech can help you achieve your manufacturing goals.
The MONOTECH Advantage
Monotech Engineers operates with a modern, well-equipped manufacturing facility designed for precision engineering and heavy fabrication. Our infrastructure supports high-capacity production, ensuring seamless handling of raw materials, machining, assembly, and quality inspection — all under one roof. This enables faster turnaround, consistent quality, and reliable delivery timelines.
With over three decades of industry experience, Monotech Engineers has built a strong reputation in sheet metal machinery and industrial solutions. Our deep engineering expertise allows us to understand complex customer requirements and deliver machines that perform with precision, durability, and efficiency in demanding environments.
Our machines are widely used across diverse industries including automotive, fabrication, construction, and heavy engineering. From precision CNC machines to robust forming solutions, Monotech products are trusted for their performance, accuracy, and long operational life.
We believe in building long-term partnerships, not just delivering machines. Our growing base of satisfied clients reflects our commitment to quality, service, and continuous support. From installation to after-sales service, we ensure our customers operate with confidence and reliability.
Build Quality & Benefits
Heavy-Duty H-Type Frame Structure
The Pneumatic H Type Press is built with a rigid, high-strength fabricated steel frame, ensuring superior load-bearing capacity and minimal deflection. The H-frame design provides excellent stability, making it ideal for heavy-duty and high-precision operations.
High-Speed Pneumatic System
Equipped with an advanced pneumatic mechanism, the machine delivers fast and smooth pressing cycles. It ensures quick response time, making it suitable for mass production and high-speed industrial applications.
Superior Precision & Alignment
The dual-column (H-type) structure ensures perfect alignment between ram and bed, resulting in highly accurate and repeatable operations. This enhances product quality and reduces rejection rates.
Uniform Force Distribution
Designed to distribute load evenly across the working area, the press ensures consistent pressure application. This is especially beneficial for large components and heavy forming applications.
Superior Precision & Alignment
The dual-column (H-type) structure ensures perfect alignment between ram and bed, resulting in highly accurate and repeatable operations. This enhances product quality and reduces rejection rates.
Uniform Force Distribution
Designed to distribute load evenly across the working area, the press ensures consistent pressure application. This is especially beneficial for large components and heavy forming applications.
Energy Efficient Operation
The pneumatic system is optimized for low air consumption and energy efficiency. It reduces operational costs while maintaining high productivity and performance.
User-Friendly Control System
Comes with an easy-to-use control panel with push buttons, indicators, and optional PLC integration. Operators can control speed, pressure, and stroke with ease, improving workflow efficiency.
Adjustable Stroke & Pressure Settings
The machine allows flexible adjustment of stroke length and pressing force, making it suitable for applications like punching, forming, embossing, assembly, and straightening.
Low Maintenance & Long Service Life
With fewer mechanical complexities and high-quality components, the machine ensures reduced wear and tear. This results in lower maintenance costs and longer operational life.
Tooling Versatility
Supports a wide range of dies and tooling configurations, allowing flexibility for different industrial applications. Quick setup and changeover improve production efficiency.
Enhanced Safety & Reliability
Integrated with essential safety features such as emergency stop, dual-hand operation (optional), and overload protection. Ensures safe and reliable performance in demanding industrial environments.
