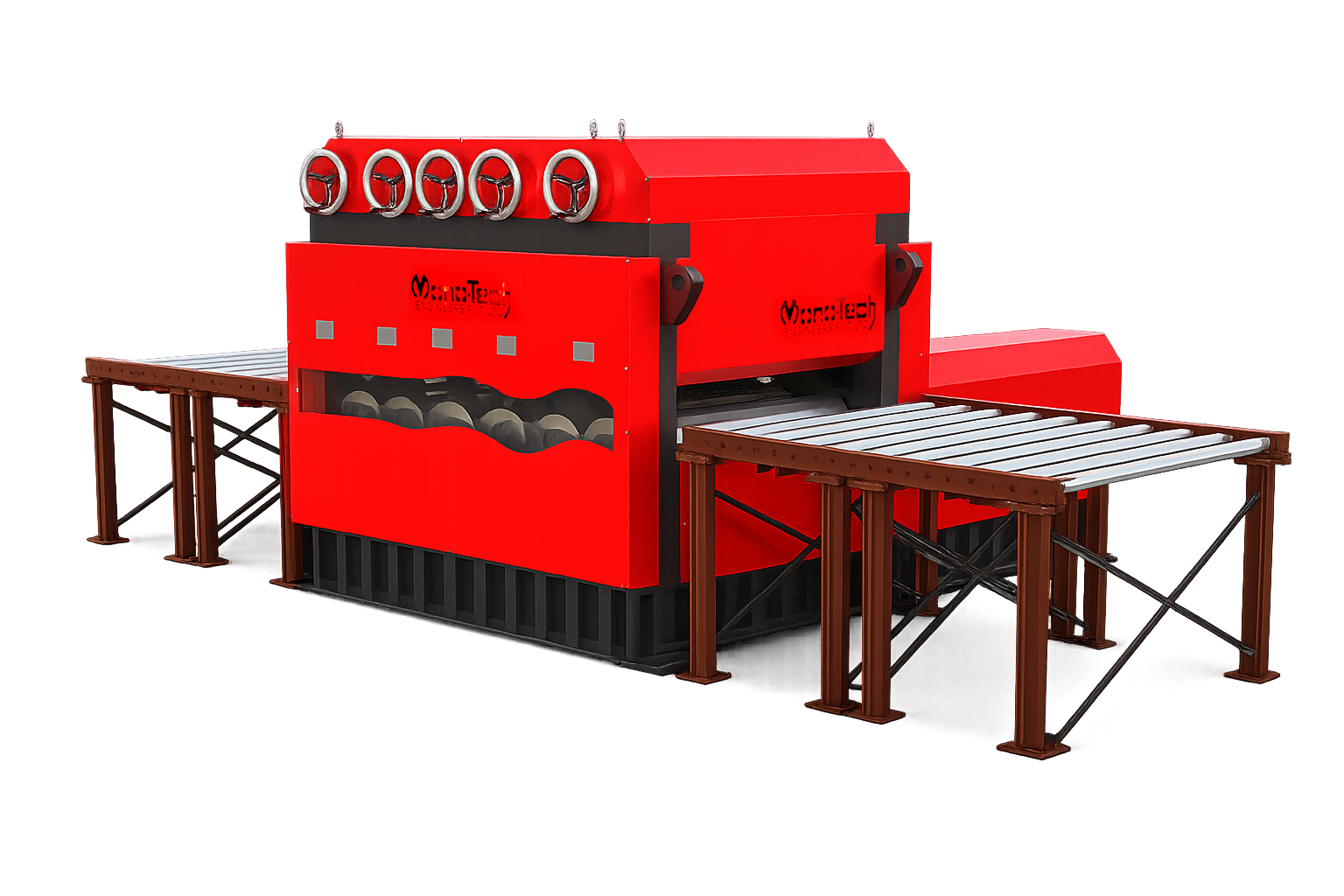

Semi Automatic Straightening Machine
Product Overview
Monotech Engineers’ Semi‑Automatic Straightening Machine delivers reliable flatness with simple, safe controls, combining hardened precision rolls, a rigid frame, and stable electro‑mechanical drives to remove coil set, bow, and waviness from scrap sheets, strips, and blanks for reuse, cut‑to‑length, or forming with confidence. Available for strip widths of 300–2500 mm and thicknesses of 2–35 mm (MS), with custom builds for stainless and high‑strength grades, it integrates seamlessly with manual decoilers or feeders for economical straightening lines while aligning with modern manufacturing SEO best practices for product pages and spec clarity.
Applications of Semi Automatic Straightening Machine

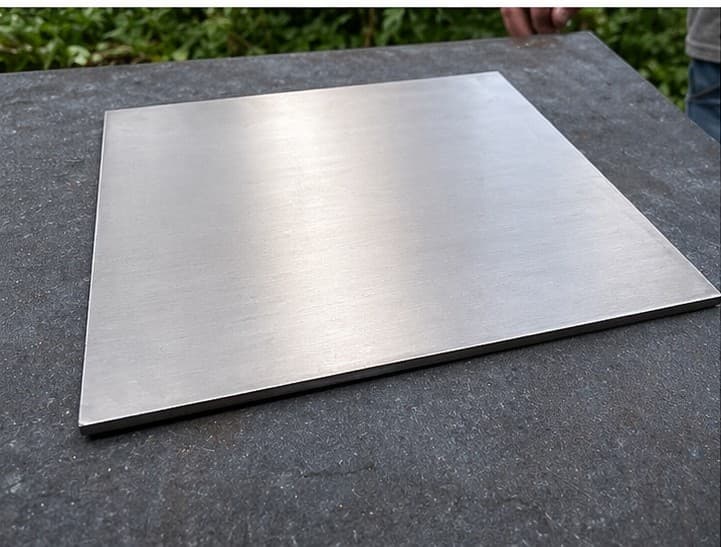

Plate & Sheet Straightening
Accurate leveling of metal sheets and plates to eliminate waviness, buckling, and residual stress

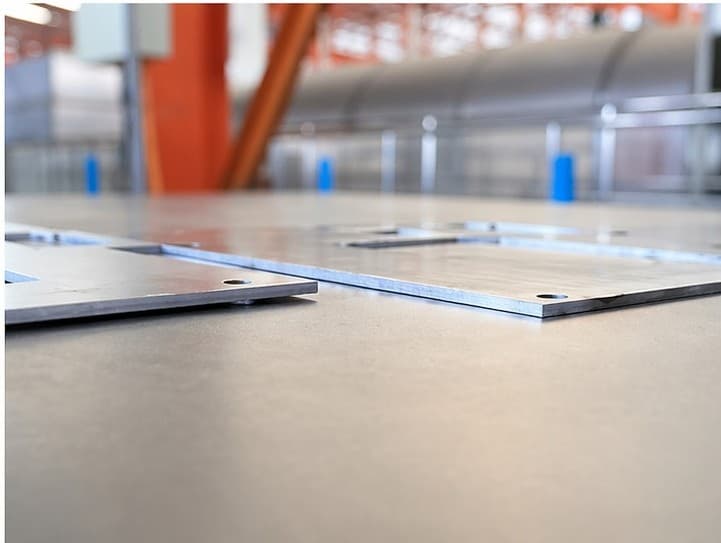

Laser / Plasma Cut Part Flattening
Restores flatness of thermally distorted components after laser or plasma cutting for better assembly accuracy.
Pre-Welding Preparation
Ensures perfectly flat components for high-quality robotic and manual welding operations.

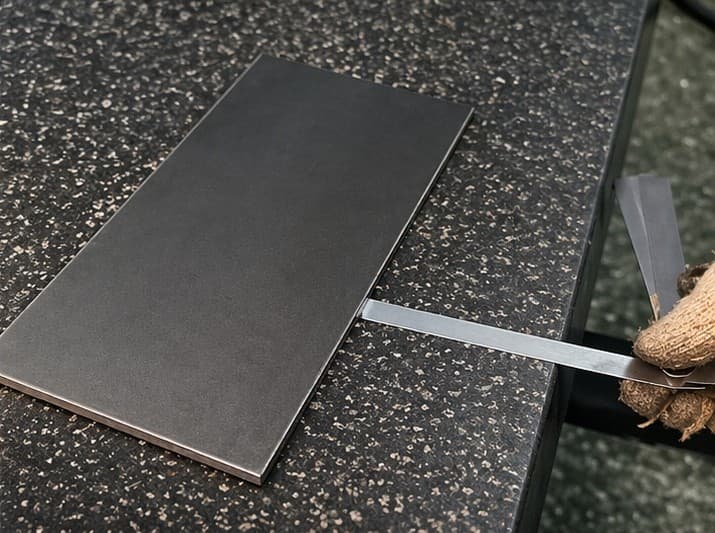

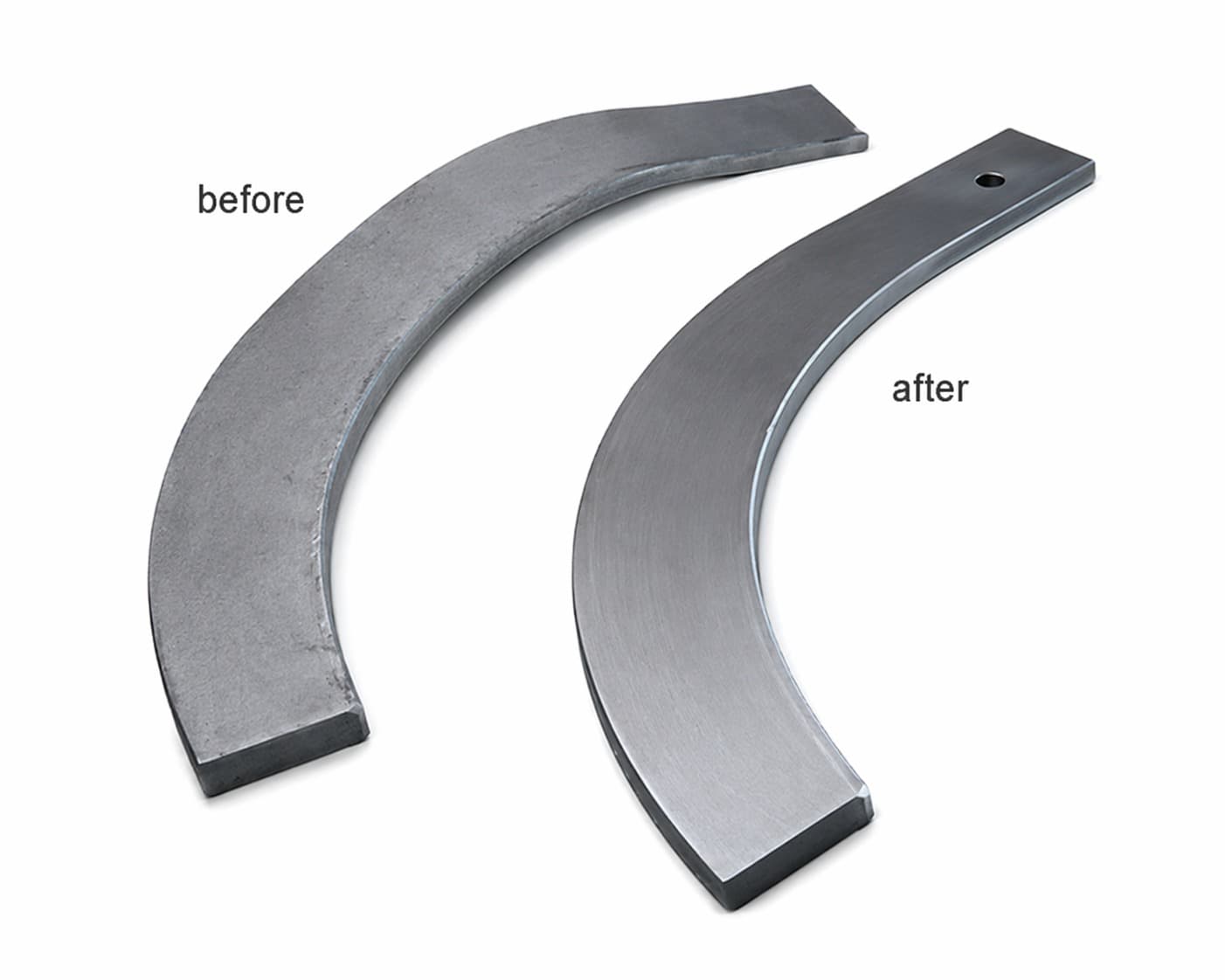

Precision Component Correction
Corrects deformation in fabricated parts to meet tight dimensional tolerances.

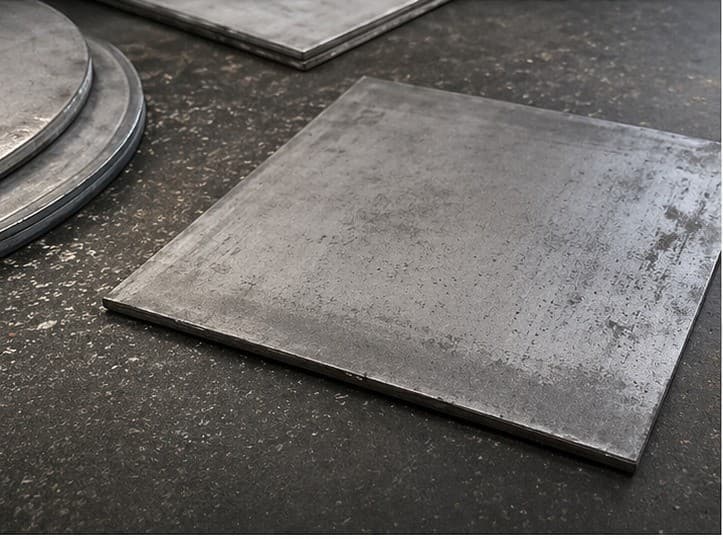

Heavy Plate Processing
Efficient straightening of thick plates used in heavy engineering, construction, and infrastructure applications.
Operational Benefits

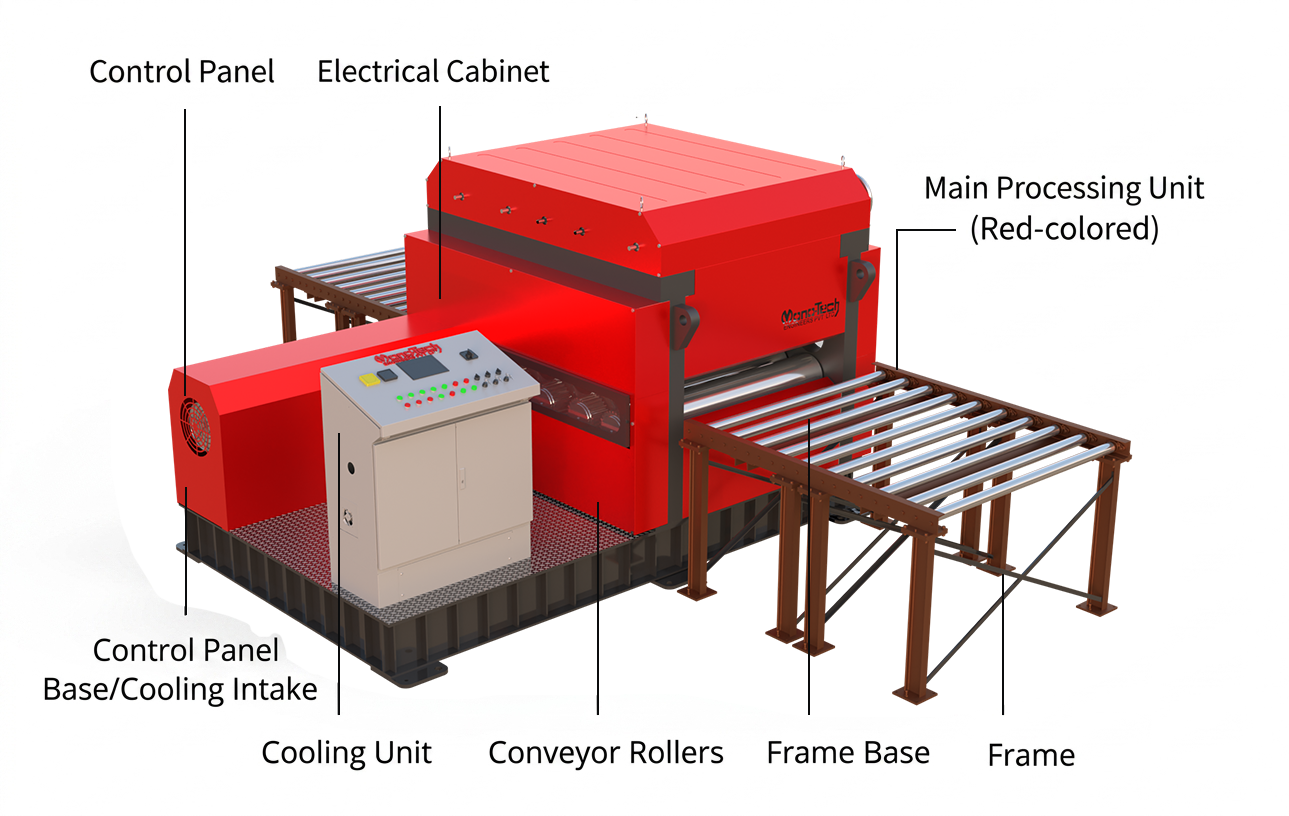

Design & Construction
- ✔Drive system: A robust electro‑mechanical main drive with a helical gearbox and VFD speed control maintains stable surface speed under varying load, improving feed steadiness and energy efficiency expected on modern industrial lines.
- ✔Work‑roll cassette: 5/7/9/11 hardened, precision‑ground alloy‑steel rolls with entry/exit pinch rolls ensure secure threading and consistent contact to correct flatness deviations across a range of gauges and materials.
- ✔Backup support: Multi‑row backup bearings limit roll deflection on thicker or work‑hardened scrap, maintaining uniform correction across the strip width and preventing center sag that can induce edge waves.
- ✔Adjustment: Motorized top‑roll bank with digital position read‑outs uses wedge/jack or screw actuators, including left‑right independent crown compensation for precise, recipe‑driven penetration.
- ✔Frame: Stress‑relieved, heavy‑plate welded structure with deep cross‑members minimizes vibration to stabilize leveling forces and roll engagement over long duty cycles.
- ✔Controls: A simple operator panel features a speed knob, jog/auto selector, preset roll penetration buttons, load/current display, and safety interlocks to streamline setup and protect operators.
What Makes Our Design Unique?
- ✔Semi‑automatic presets: Stored penetration presets with quick recall cut changeover time; manual trim remains available for variable scrap mixes.
- ✔Adaptive jogging: Soft start/stop and fine inching aid seam alignment and reduce end‑flat marks during threading and exit.
- ✔Surface‑safe contact: Polished, hardened rolls with optional chrome; PU‑covered pinch rolls minimize print‑through on coated or cleaned stock.
- ✔Cleanability: Quick‑release wipers and roll access panels simplify cleaning when processing rusty or scale‑bearing material.
- ✔Environmental hardening: Sealed bearings, guarded mechanisms, and centralized lubrication maintain performance in dusty yards and fabrication floors.
- ✔Contamination control: Labyrinth/dual‑lip seals and magnetic drain plugs extend service intervals in abrasive environments.
- ✔Uptime by design: Cartridge valves, modular drives, and front‑serviceable guides reduce MTTR and simplify spare‑parts planning.
- ✔Training‑light: Clear SOPs, quick‑start cards, and on‑screen prompts shorten learning curves for new operators.
- ✔Footprint efficiency: Compact control architecture and integrated lube points fit tight shop layouts while easing daily checks.
Key Features & Accessories
Performance-Driven Design
Performance‑driven productivity:
The crankshaft and flywheel system ensures uniform power delivery throughout the stroke, even in high-load applications.
Consistent Force Delivery
The crankshaft and flywheel system ensures uniform power delivery throughout the stroke, even in high-load applications.
Boost Your Productivity with Automatic Feeding
Integrate an automatic feeding system to accelerate material handling and improve cycle times. Key Benefits: • Ideal for high-volume applications • Reduces manual loading time • Ensures consistent, accurate feeding for smooth production
High-Speed Production
Our machines are optimized for rapid cycle times, making them suitable for mass production environments where output matters.
Advanced Ram Guidance
Linear guides and precision bushings provide smooth ram travel and reduce wear, enabling high-accuracy performance across multiple shifts.
Quick Die Changeover
Removable bolster plates allow fast tool changes, reducing downtime and enhancing operational flexibility.
Built for Strength & Stability
Our mechanical presses feature a stress-relieved, single-piece welded C-frame structure that minimizes deflection, ensuring long-term accuracy and durability.
Want to Know More?
Download our brochure or request more information to learn how Monotech can help you achieve your manufacturing goals.
The MONOTECH Advantage
Monotech Engineers operates with a modern, well-equipped manufacturing facility designed for precision engineering and heavy fabrication. Our infrastructure supports high-capacity production, ensuring seamless handling of raw materials, machining, assembly, and quality inspection — all under one roof. This enables faster turnaround, consistent quality, and reliable delivery timelines.
With over three decades of industry experience, Monotech Engineers has built a strong reputation in sheet metal machinery and industrial solutions. Our deep engineering expertise allows us to understand complex customer requirements and deliver machines that perform with precision, durability, and efficiency in demanding environments.
Our machines are widely used across diverse industries including automotive, fabrication, construction, and heavy engineering. From precision CNC machines to robust forming solutions, Monotech products are trusted for their performance, accuracy, and long operational life.
We believe in building long-term partnerships, not just delivering machines. Our growing base of satisfied clients reflects our commitment to quality, service, and continuous support. From installation to after-sales service, we ensure our customers operate with confidence and reliability.
Build Quality & Benefits
Heavy-Duty Fabricated Structure
The Semi Automatic Straightening Machine is built with a robust, welded steel frame designed to withstand continuous industrial operations. The structure is stress-relieved to eliminate internal distortions, ensuring long-term stability, durability, and consistent performance under load.
Precision Straightening Mechanism
Equipped with a high-precision roller straightening system, the machine delivers uniform pressure distribution across the material. This ensures accurate flatness, reduced internal stress, and reliable straightening results for a wide range of components.
Semi-Automatic Control System
The machine combines manual control with automated assistance, allowing operators to adjust parameters such as roller gap and pressure efficiently. This ensures flexibility, ease of operation, and better control over the straightening process without requiring full automation.
Adjustable Roller Configuration
Designed with precisely aligned and adjustable rollers, the system can accommodate different material thicknesses and types. This flexibility enhances productivity and ensures consistent results across varied applications.
Semi-Automatic Control System
The machine combines manual control with automated assistance, allowing operators to adjust parameters such as roller gap and pressure efficiently. This ensures flexibility, ease of operation, and better control over the straightening process without requiring full automation.
Adjustable Roller Configuration
Designed with precisely aligned and adjustable rollers, the system can accommodate different material thicknesses and types. This flexibility enhances productivity and ensures consistent results across varied applications.
Energy Efficient Operation
With optimized mechanical drive systems, the machine offers efficient power consumption while maintaining high performance. It provides a cost-effective solution compared to fully automated or hydraulic systems.
Versatile Material Handling
Capable of straightening laser-cut, plasma-cut, and thermally distorted sheets and components. Suitable for medium-duty applications across multiple industries requiring reliable and consistent output.
Low Maintenance & Easy Operation
The semi-automatic design reduces system complexity, making maintenance simpler and more cost-effective. Operator-friendly controls ensure quick setup, minimal downtime, and smooth day-to-day operation.
Safety & Reliability
Equipped with essential safety features such as emergency stop systems and overload protection, ensuring safe operation. The machine is designed for dependable performance in demanding workshop environments.
