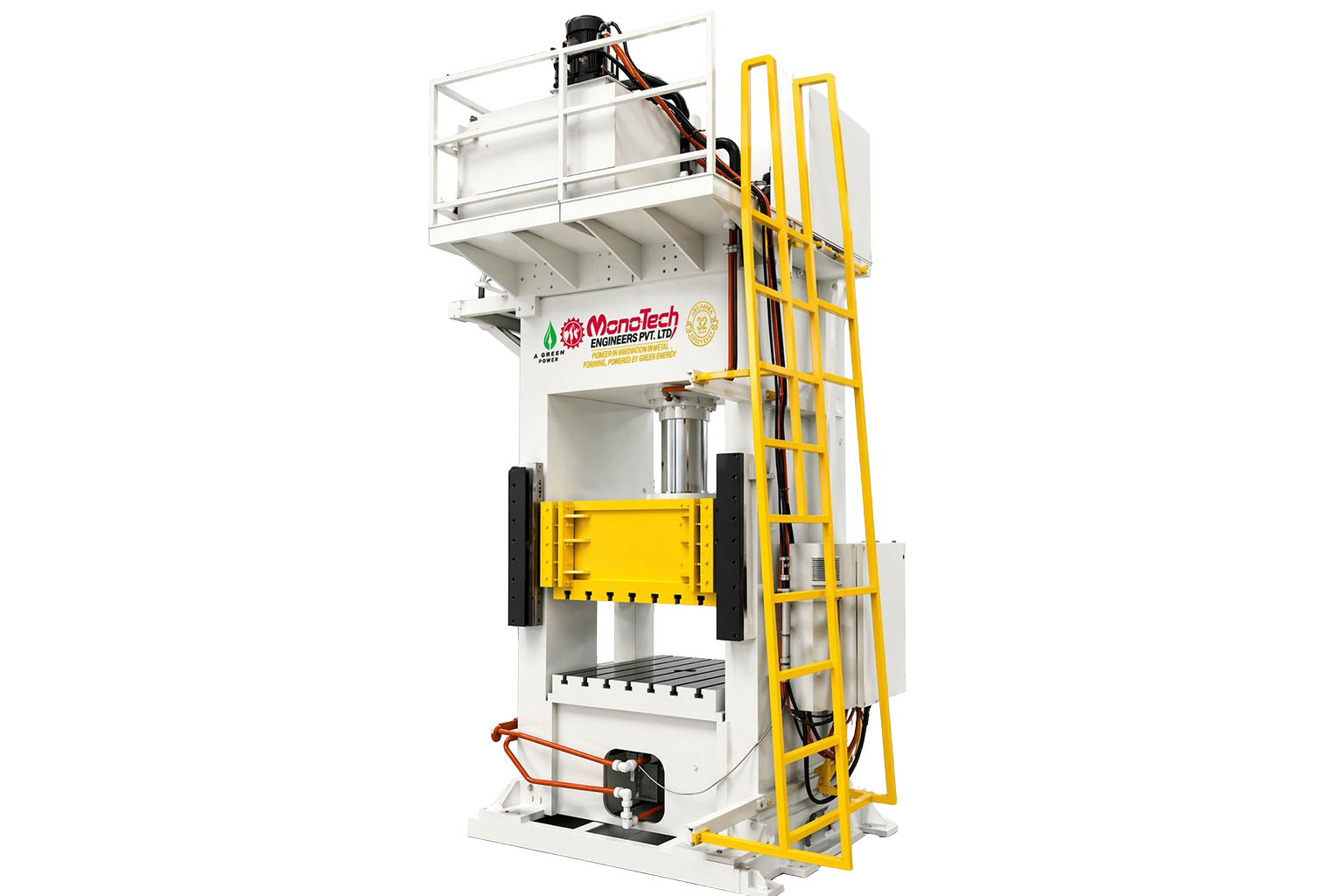

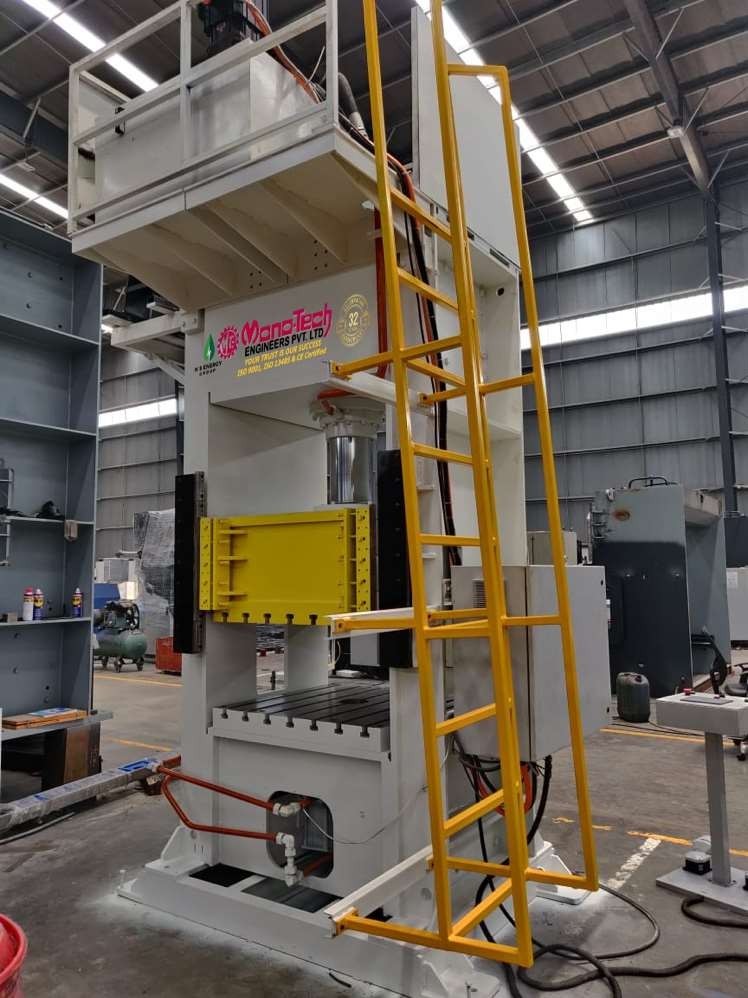

H-Type Hydraulic Press
Product Overview
Monotech Engineers Pvt Ltd proudly introduces the H-Type Hydraulic Press, a powerful and versatile solution tailored for heavy-duty metalworking tasks like metal forming, punching, blanking, forging, straightening, and molding operations.
Distinguished by its robust H-frame construction, this machine is designed to offer outstanding rigidity and stability, ensuring reliable performance even under high-pressure conditions. The H-type press’s accessible design ensures ease of use, making it the ideal choice for industries requiring a machine capable of handling challenging, high-load operations.
Applications of H-Type Hydraulic Press
Our H-Type Hydraulic Presses are designed for heavy-duty operations requiring high force, precision, and structural stability.
Automobile Industry
Used for chassis straightening, heavy component assembly, bearing fitting, and structural part forming.
Metal Forming Industry
Ideal for deep drawing, punching, bending, and forming of thick and large metal sheets.
Heavy Engineering Industry
Applied in fabrication of large components, shaft straightening, and high-load pressing operations.
Power & Energy Sector
Used in manufacturing and maintenance of turbine parts, boiler components, and heavy equipment.
Forging & Industrial Applications
Supports forging processes, die pressing, and heavy-duty production tasks requiring consistent force.
Design & Construction
- ✔Hydraulic Architecture: High‑pressure hydraulic power pack with proportional valves for smooth force and speed modulation, enabling controlled pre-bending and rolling across varying scrap thicknesses and materials.
- ✔Roll Configuration: Flexible setup as 3‑roll initial pinch, 3‑roll pyramid, or 4‑roll pre‑pinch. Rolls are alloy-steel, precision-ground, induction-hardened, with optional crowning to maintain roundness and reduce flats.
- ✔Frame & Bearings: Stress‑relieved welded frame with heavy guideways, spherical roller bearings, and labyrinth seals to withstand deflection and contamination in dusty yard conditions.
- ✔Positioning: Hydraulic side‑roll cylinders with linear scales or encoders. Synchronized roll movement maintains repeatable radii and minimizes edge flats through precise side‑roll travel.
- ✔Controls: Pendant or fixed panel with pressure/readout gauges, digital roll position display, inch/jog and auto cycles, emergency stop, and safety interlocks for consolidated control and operator safety.
- ✔Finish & Protection: Industrial coatings, guarded drive areas, and centralized lubrication points for long-term durability and simplified routine maintenance in multi‑shift operations.
What Makes Our Design Unique?
- ✔High‑Force Pre‑Bending:4‑roll hydraulic platform enables true double pre‑pinch at both edges, improving roundness near the seam and minimizing weld gaps on thicker or variable plates.
- ✔Precision Radius Control: Proportional hydraulics with linear feedback ensures smooth, repeatable side‑roll motion for consistent curvature across the sheet length.
- ✔Power Under Load:High‑torque hydraulic drives sustain rolling speed and traction under varying thickness, preventing stalling or scuffing and maintaining surface quality.
- ✔Built for Harsh Duty: Hardened rolls, wear strips, and dust‑sealed bearings safeguard critical components, extending service life in abrasive scrap environments.
- ✔Maintenance‑Friendly:Cartridge valve manifolds, advanced filtration, and easy access to cylinders and guides streamline servicing and reduce downtime during inspections.
Key Features & Accessories
Performance-Driven Design
Variable rolling speed through flow-controlled hydraulics handles thin-to-heavy gauges with smooth ramp-up/ramp-down for precise seam alignment and reduced flats.
Digital position presets with return-to-zero accelerate repeat setups and improve consistency across shifts and operators.
Safety systems include over-pressure reliefs, nip-area safety ropes, dual-channel E‑stop, door/guard interlocks, and load‑holding valves on cylinders for robust protection and controlled stops.
Continuous‑duty hydraulics with dedicated cooling and fine filtration sustain long runs and stable performance across temperatures and workloads.
Want to Know More?
Download our brochure or request more information to learn how Monotech can help you achieve your manufacturing goals.
The MONOTECH Advantage
Monotech Engineers operates with a modern, well-equipped manufacturing facility designed for precision engineering and heavy fabrication. Our infrastructure supports high-capacity production, ensuring seamless handling of raw materials, machining, assembly, and quality inspection — all under one roof. This enables faster turnaround, consistent quality, and reliable delivery timelines.
With over three decades of industry experience, Monotech Engineers has built a strong reputation in sheet metal machinery and industrial solutions. Our deep engineering expertise allows us to understand complex customer requirements and deliver machines that perform with precision, durability, and efficiency in demanding environments.
Our machines are widely used across diverse industries including automotive, fabrication, construction, and heavy engineering. From precision CNC machines to robust forming solutions, Monotech products are trusted for their performance, accuracy, and long operational life.
We believe in building long-term partnerships, not just delivering machines. Our growing base of satisfied clients reflects our commitment to quality, service, and continuous support. From installation to after-sales service, we ensure our customers operate with confidence and reliability.
Build Quality & Benefits

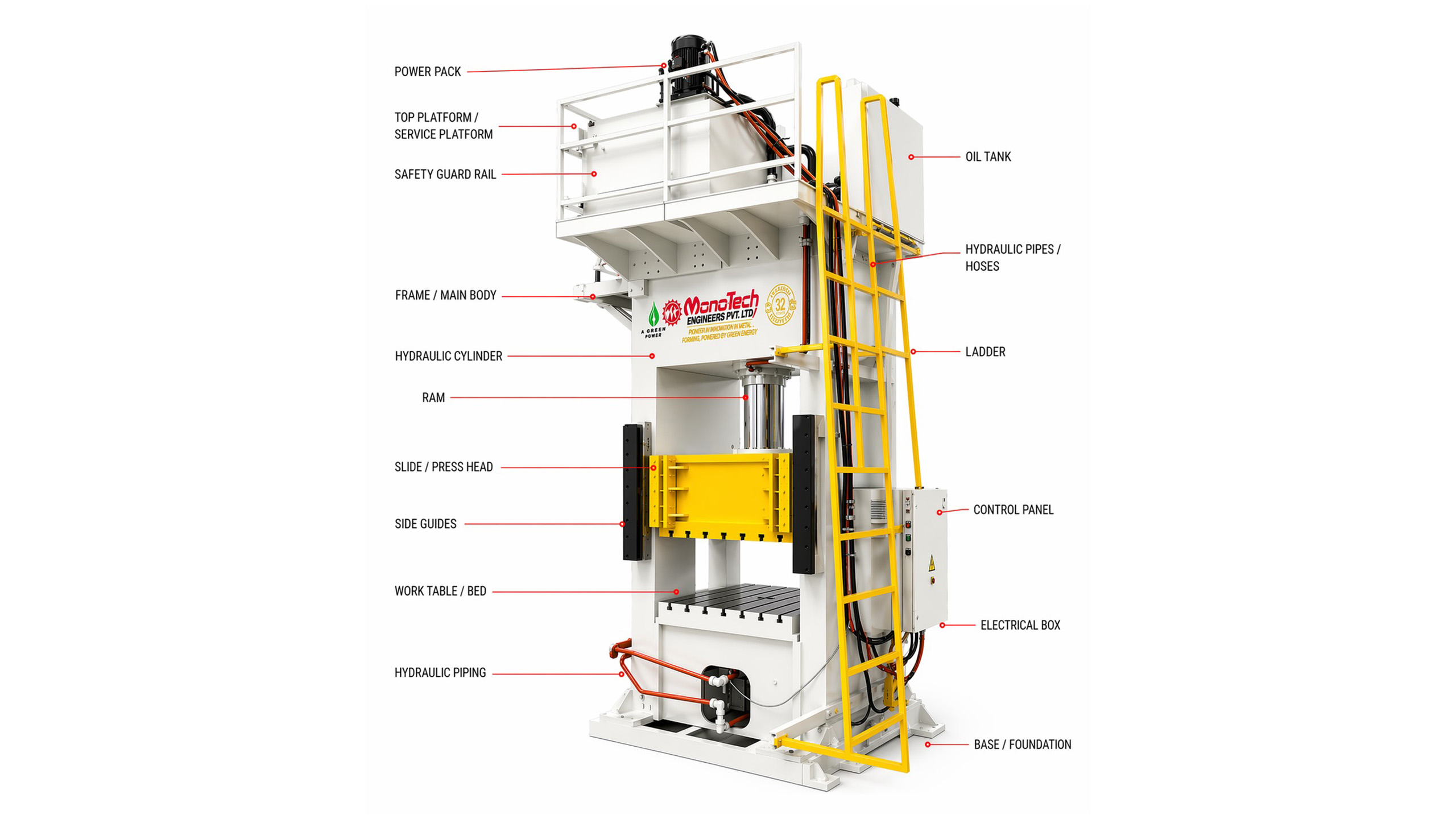

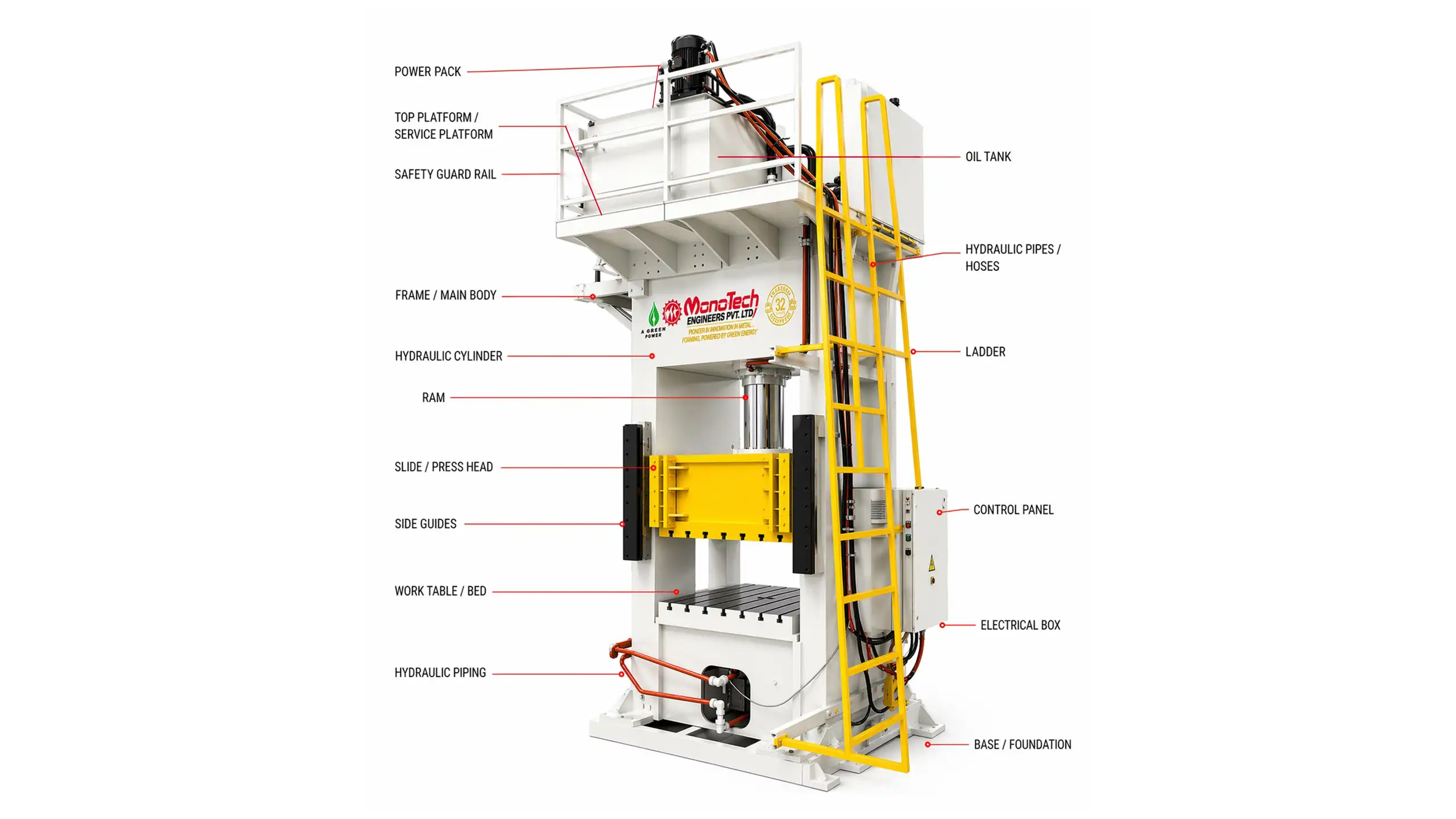

Robust H-Frame Structure
Heavy-duty H-frame construction ensures maximum rigidity, minimal deflection, and superior load-bearing capacity.
High-Capacity Hydraulic System
Equipped with powerful hydraulic cylinders for delivering high tonnage with smooth and controlled operation.
Uniform Force Distribution
Ensures even pressure across the entire working area, improving accuracy and reducing component stress.
Designed for Heavy-Duty Performance
Built to handle continuous high-load operations with consistent output and long service life.
Uniform Force Distribution
Ensures even pressure across the entire working area, improving accuracy and reducing component stress.
Designed for Heavy-Duty Performance
Built to handle continuous high-load operations with consistent output and long service life.
Customizable Design
Available with adjustable stroke, bed size, daylight, and automation features as per application needs.
Energy Efficient & Low Maintenance
Optimized hydraulic circuits reduce energy consumption and ensure minimal maintenance requirements.
Advanced Safety Features
Includes overload protection, emergency stop systems, and safety guards for secure and reliable operation.
