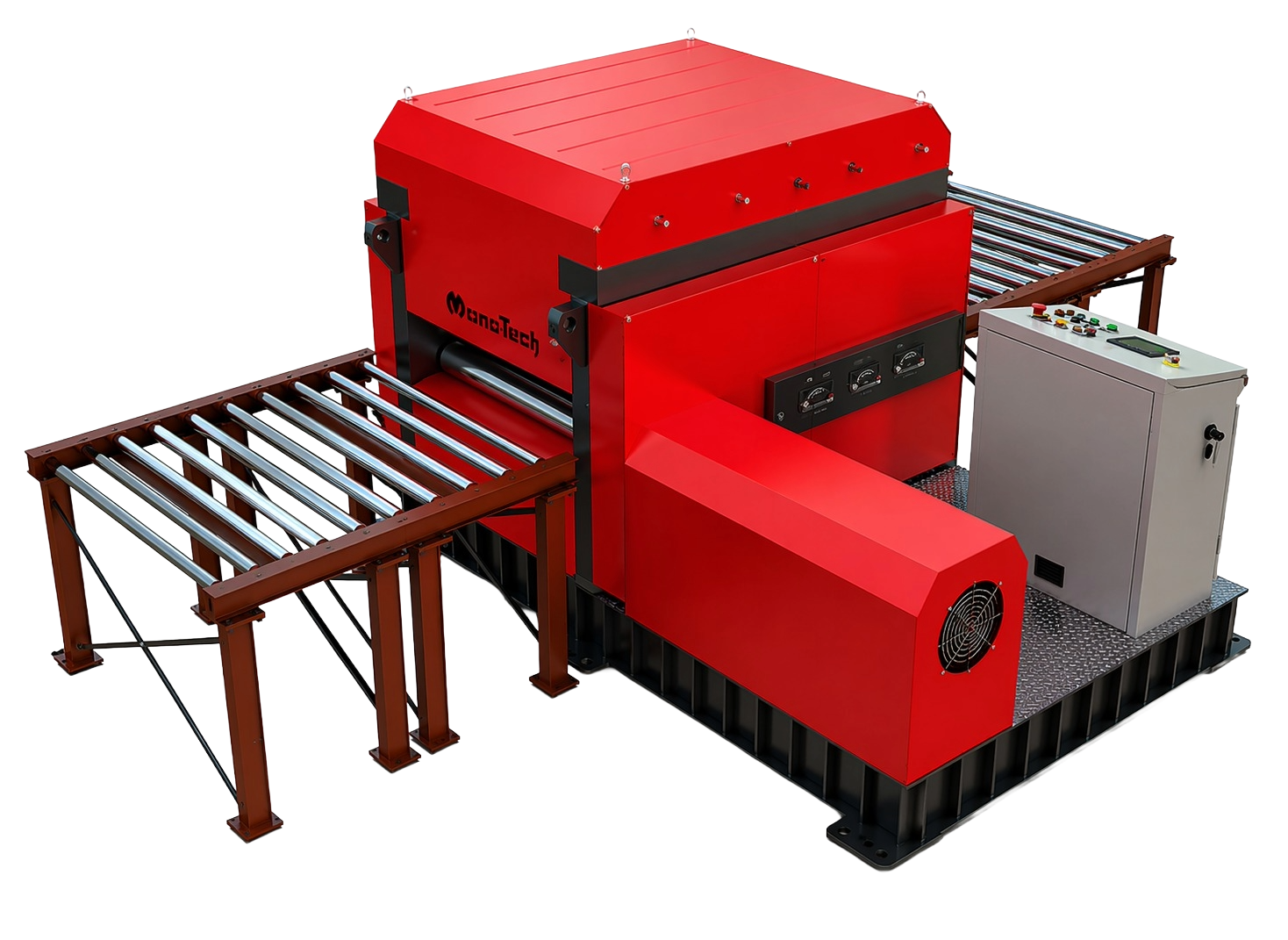

Electro Mechanical Straightening Machine
Product Overview
Monotech Engineers Pvt. Ltd. supplies an electro‑mechanical straightening solution engineered to remove coil set, cross‑bow, and waviness from scrap sheets, strips, and blanks, restoring flatness for cutting, forming, or re‑rolling with repeatable accuracy and low marking. A rugged welded frame, precision‑ground and hardened work rolls, and servo/VFD‑guided adjustments deliver consistent flatness across mixed gauges while safeguarding sensitive surfaces during corrective bending beyond yield for true leveling. Available for strip widths from 300–1600 mm and thickness ranges from 0.6–8 mm (MS), with custom variants for stainless and high‑strength materials; the system integrates seamlessly with decoilers, feeders, and shears to form a complete, high‑uptime line.
Applications of Electro Mechanical Straightening Machine
Plate & Sheet Straightening
Accurate leveling of metal sheets and plates to eliminate waviness, buckling, and residual stress
Laser / Plasma Cut Part Flattening
Restores flatness of thermally distorted components after laser or plasma cutting for better assembly accuracy.
Pre-Welding Preparation
Ensures perfectly flat components for high-quality robotic and manual welding operations.
Precision Component Correction
Corrects deformation in fabricated parts to meet tight dimensional tolerances.
Heavy Plate Processing
Efficient straightening of thick plates used in heavy engineering, construction, and infrastructure applications.
Operational Benefits

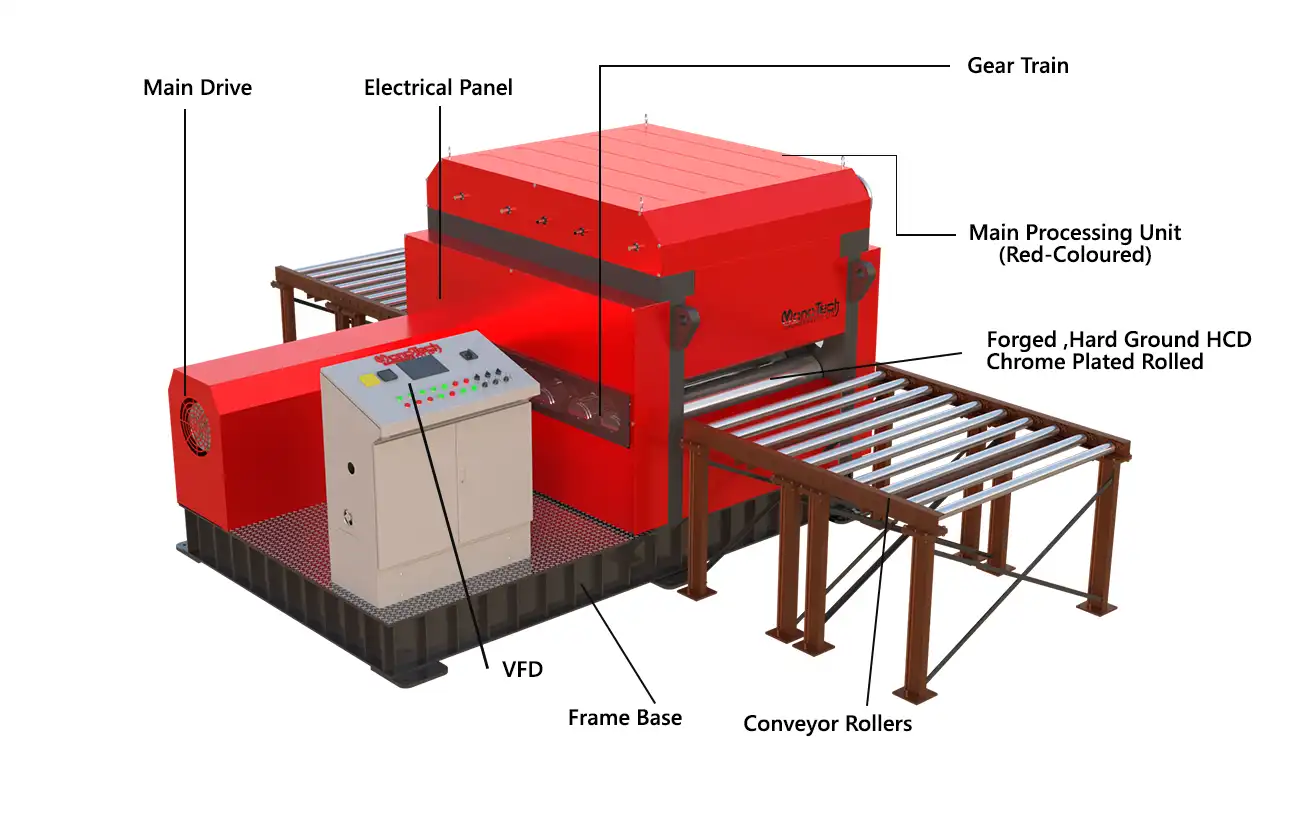

Design & Construction
- ✔Drive system: Electro‑mechanical main drive with helical gearbox and VFD speed control ensures stable torque, smooth acceleration, and constant surface speed under load for a clean, skid‑free pass.
- ✔Roll cassette: Configurable 5, 7, 9, or 11 work‑roll banks with entry/exit pinch rolls use alloy‑steel, induction‑hardened and precision‑ground rolls, with optional chrome finishing for delicate or coated stock.
- ✔Backup support: Multi‑row backup bearings limit roll deflection on thicker or work‑hardened scrap, maintaining uniform correction across the strip width and preventing center sag that can induce edge waves.
- ✔Adjustment: Motorized top‑roll bank with digital position read‑outs uses wedge/jack or screw actuators, including left‑right independent crown compensation for precise, recipe‑driven penetration.
- ✔Frame: Stress‑relieved, heavy‑plate welded structure with deep cross‑members minimizes vibration to stabilize leveling forces and roll engagement over long duty cycles.
- ✔Controls: Operator panel or PLC/HMI provides speed setpoints, roll penetration set/recipe, load/current display, jog/auto, and fully interlocked E‑stops to streamline setup and ensure safety.
What Makes Our Design Unique?
- ✔Precision penetration control: Encoder‑guided roll gap with crown compensation achieves true flatness by yielding the correct surface bands through thickness, minimizing residual stress across mixed gauges.
- ✔Surface protection: Fine‑finish, hardened rolls with optional chrome reduce print‑through on painted or coated scrap when paired with optimized penetration per material yield.
- ✔High rigidity: Reinforced frame and backup bearings resist roll bending so correction is uniform across width, improving downstream cutting and forming quality.
- ✔Low maintenance: Electro‑mechanical actuation, centralized lubrication, and sealed bearings are specified for dusty yards to extend service intervals and reduce total cost of ownership.
Key Features & Accessories
Performance-Driven Design
VFD:
Wide speed range with VFD covers thin to thick gauges; soft start and anti‑skid synchronization with pinch rolls maintain traction and surface quality.
Recipe memory:
Save penetration, speed, and crown profiles to accelerate changeovers and preserve flatness consistency across material families.
Quality tools:
Entry edge guides, exit leveling gauges, and inline flatness checks support repeatable results by verifying shape after springback.
Safety:
Two‑hand jog, emergency rope along the strip path, interlocked guards, and overload/current protection reduce operational risk without slowing throughput.
Want to Know More?
Download our brochure or request more information to learn how Monotech can help you achieve your manufacturing goals.
The MONOTECH Advantage
Monotech Engineers operates with a modern, well-equipped manufacturing facility designed for precision engineering and heavy fabrication. Our infrastructure supports high-capacity production, ensuring seamless handling of raw materials, machining, assembly, and quality inspection — all under one roof. This enables faster turnaround, consistent quality, and reliable delivery timelines.
With over three decades of industry experience, Monotech Engineers has built a strong reputation in sheet metal machinery and industrial solutions. Our deep engineering expertise allows us to understand complex customer requirements and deliver machines that perform with precision, durability, and efficiency in demanding environments.
Our machines are widely used across diverse industries including automotive, fabrication, construction, and heavy engineering. From precision CNC machines to robust forming solutions, Monotech products are trusted for their performance, accuracy, and long operational life.
We believe in building long-term partnerships, not just delivering machines. Our growing base of satisfied clients reflects our commitment to quality, service, and continuous support. From installation to after-sales service, we ensure our customers operate with confidence and reliability.
Build Quality & Benefits
Robust Electro-Mechanical Structure
Our Electro Mechanical Straightening Machines are engineered with a heavy-duty fabricated steel frame designed to handle continuous industrial loads. The structure undergoes stress-relieving processes to eliminate internal stresses, ensuring long-term durability, stability, and vibration-free operation even under high workloads.
Precision Straightening Mechanism
At the core of the machine lies a high-accuracy roller straightening system driven by electro-mechanical control. Precisely aligned rollers apply uniform pressure across the material, ensuring excellent flatness, minimal deformation, and consistent straightening results across varying thicknesses.
Servo-Controlled Automation System
Equipped with advanced servo motors and PLC-based controls, the machine delivers highly accurate and repeatable operations. Operators can easily adjust parameters such as roller gap, speed, and pressure, enabling automated control with minimal manual intervention and maximum process efficiency.
High-Accuracy Roller System
The machine features hardened and precision-ground rollers designed for long life and superior performance. The optimized roller geometry ensures uniform load distribution, reduced surface damage, and consistent straightening quality even for high-strength materials.
Servo-Controlled Automation System
Equipped with advanced servo motors and PLC-based controls, the machine delivers highly accurate and repeatable operations. Operators can easily adjust parameters such as roller gap, speed, and pressure, enabling automated control with minimal manual intervention and maximum process efficiency.
High-Accuracy Roller System
The machine features hardened and precision-ground rollers designed for long life and superior performance. The optimized roller geometry ensures uniform load distribution, reduced surface damage, and consistent straightening quality even for high-strength materials.
Energy Efficient Drive System
Unlike hydraulic systems, the electro-mechanical drive ensures significantly lower energy consumption. The use of servo motors and efficient transmission systems reduces power loss, resulting in cost savings and environmentally sustainable operations.
Wide Material Handling Capability
Designed to handle a broad range of materials including laser-cut, plasma-cut, and thermally distorted sheets. The machine supports varying thicknesses and widths, making it suitable for diverse industrial applications.
Minimal Maintenance & Clean Operation
With no hydraulic oil or complex fluid systems, maintenance requirements are significantly reduced. This ensures cleaner operations, lower downtime, and reduced long-term operational costs.
Safety & Operational Reliability
Safety is integrated at every level with features such as emergency stops, overload protection, and operator-friendly controls. The machine is built for consistent, safe, and reliable performance in demanding industrial environments.
