CNC Hydraulic Press Brake
Unmatched capacity. Superlative precision. Optimal turnout.
Product Overview
Monotech Engineers Pvt Ltd presents its next-generation CNC Hydraulic Press Brakes, equipped with European technology and unmatched structural integrity. Designed for custom-built configurations ranging from 63 Ton to 1200 Ton, and bending lengths from 1600 mm to 7200 mm, our press brakes combine speed, strength, and smart automation to deliver optimal performance in every application.
Applications of CNC Press Brake
Our CNC Press Brakes are widely used across multiple industries for precision sheet metal bending.
Automobile
Used for manufacturing car body panels, frames, doors, and structural components.
Appliance Industry
Used in making refrigerators, ovens, washing machines, and home appliance panels.
Construction Industry
Used for roofing sheets, structural frames, and building components.
Electronics
Used for electrical panels, enclosures, and precision metal parts.
Aerospace
Used for aircraft panels, wing parts, and precision engineered components.
Operational Benefits

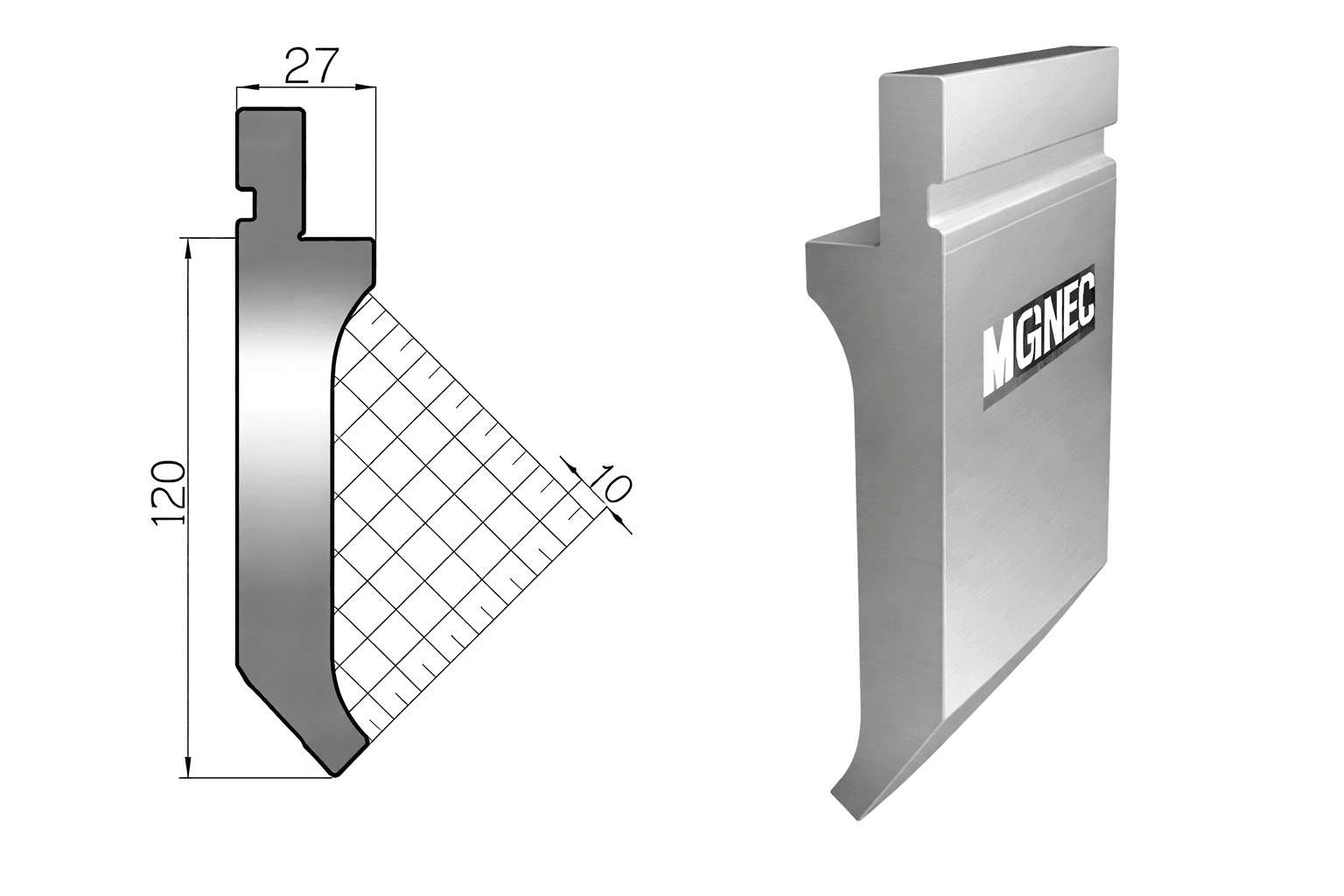

SASH PUNCH

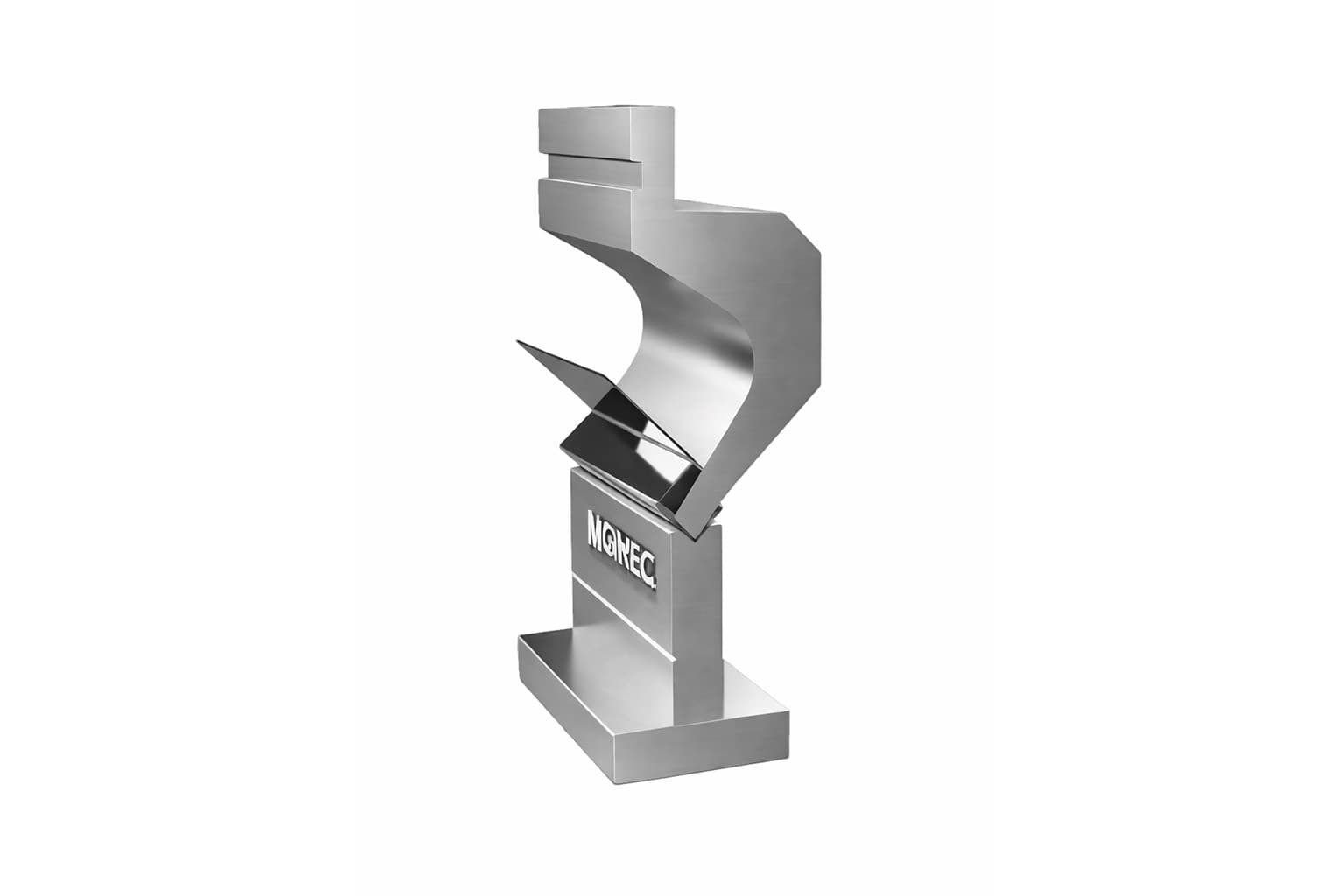

GOOSENECK PUNCH

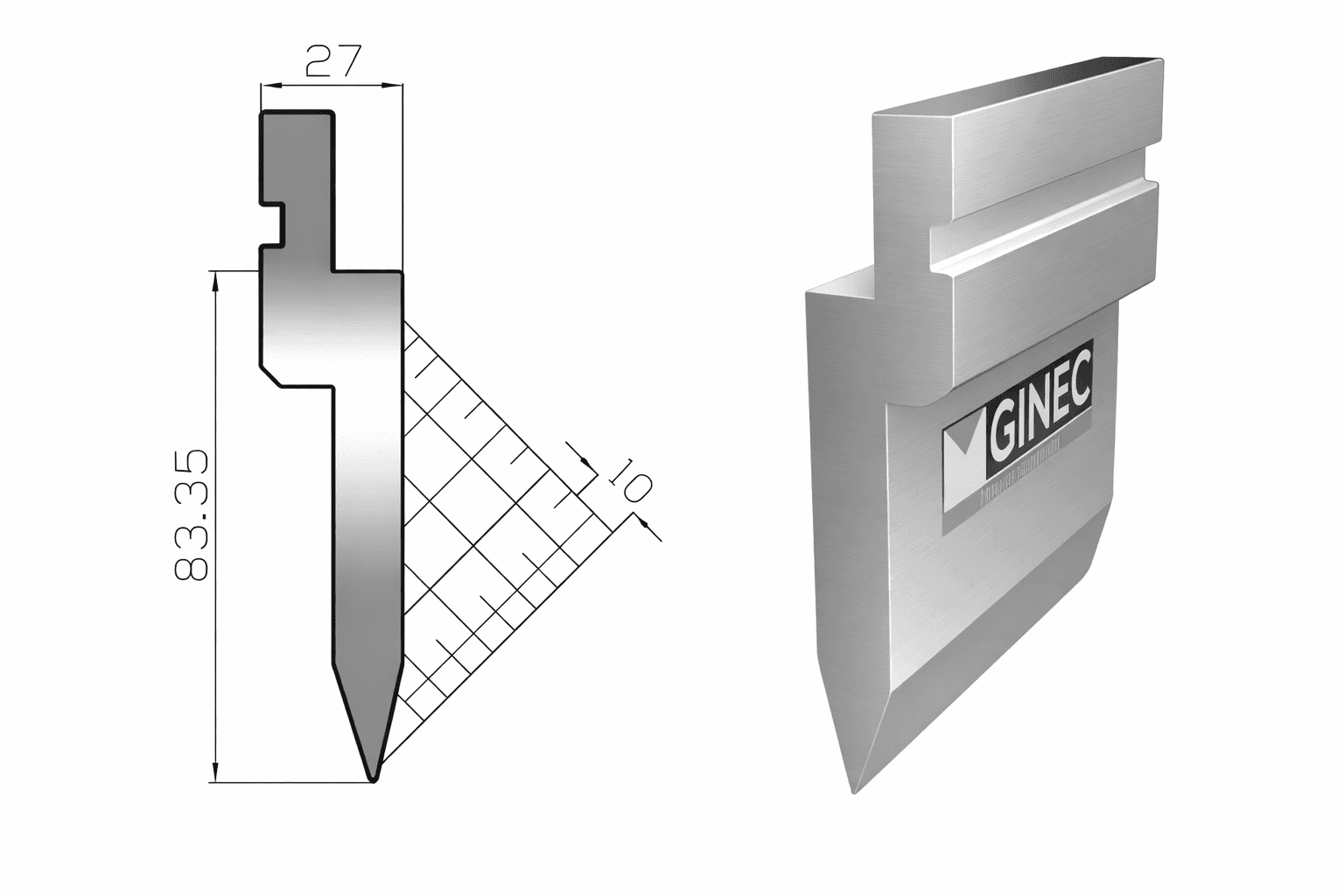

KNIFE PUNCH

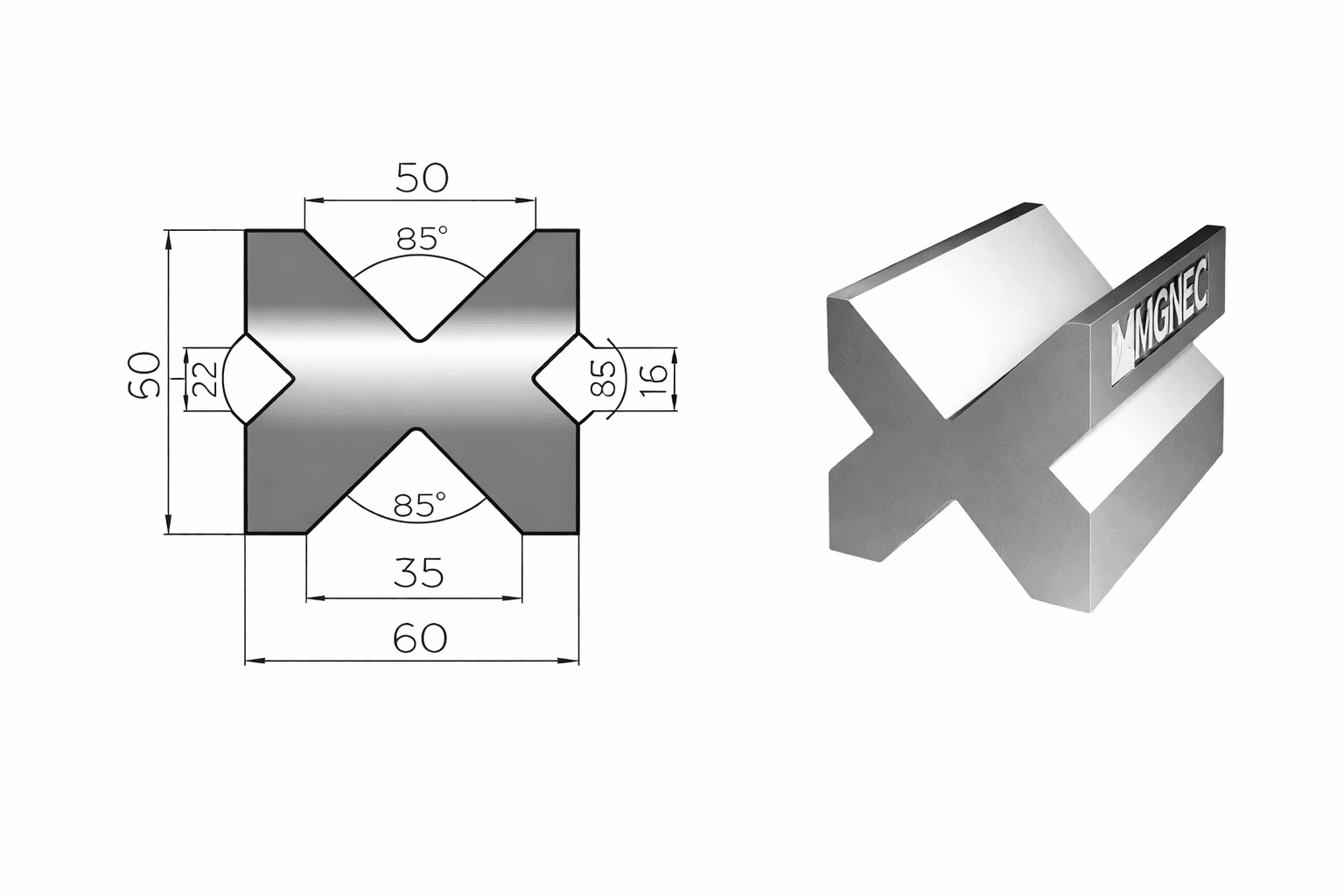

4 V DIE

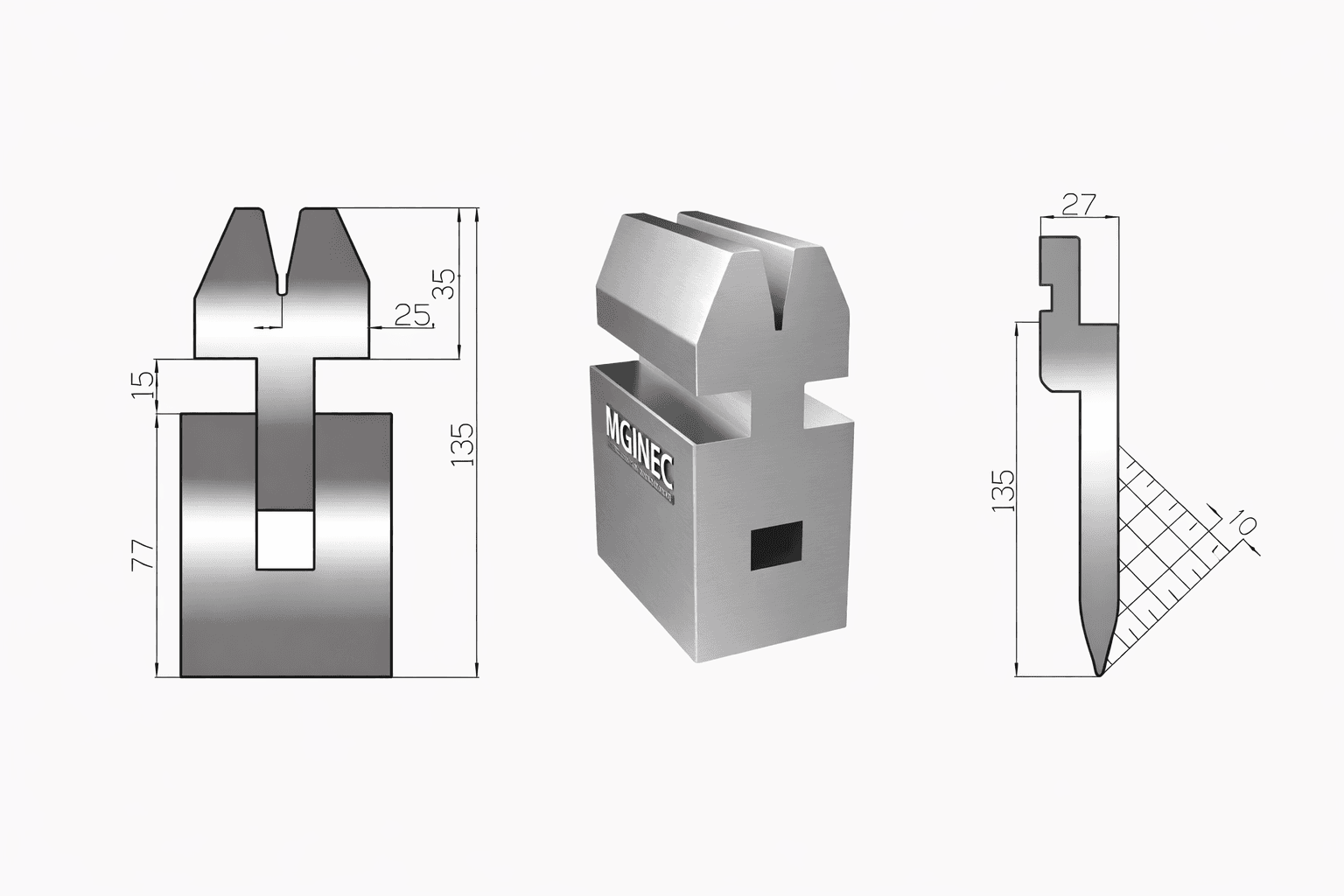

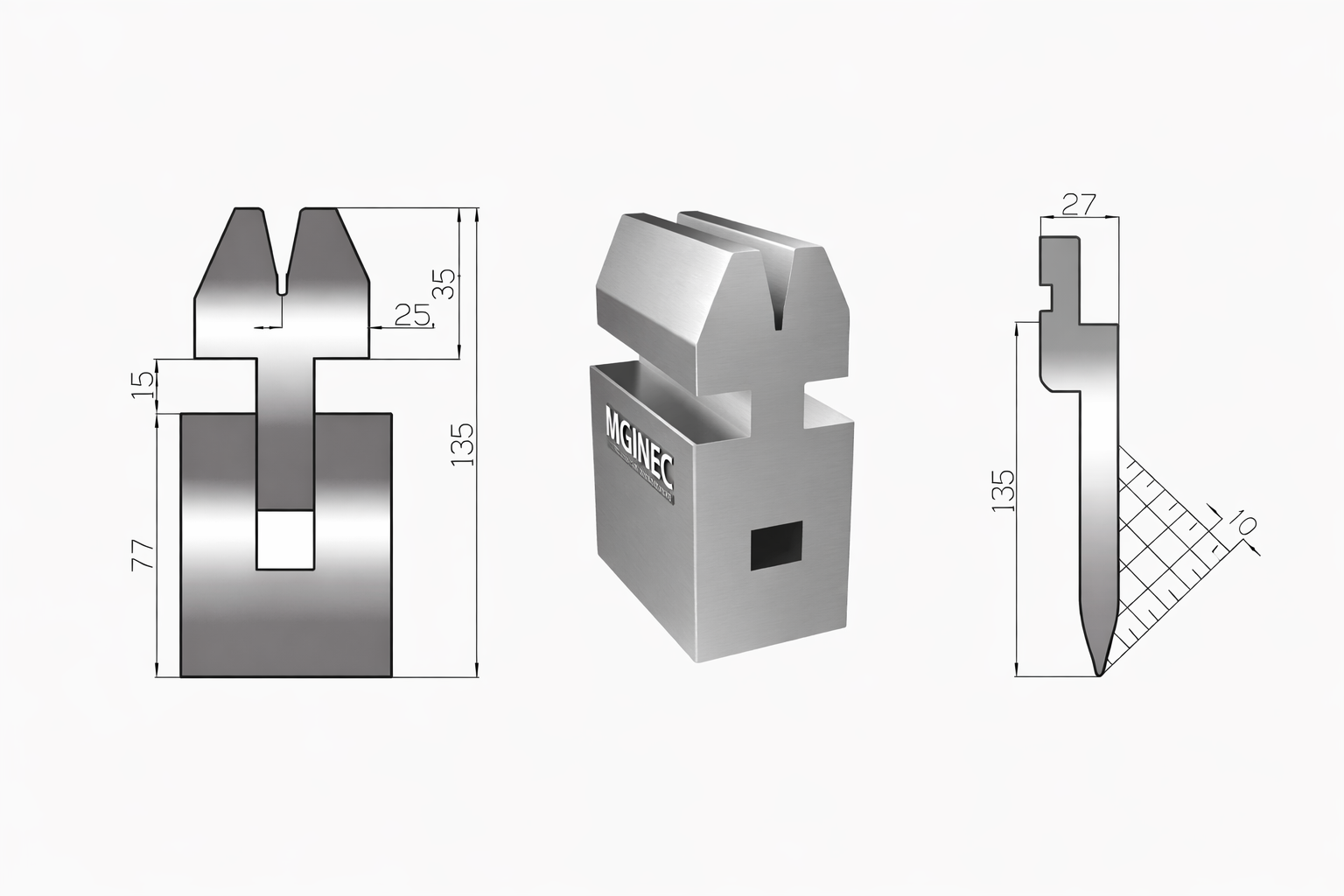

SPRING HEMMING DIE & PUNCH

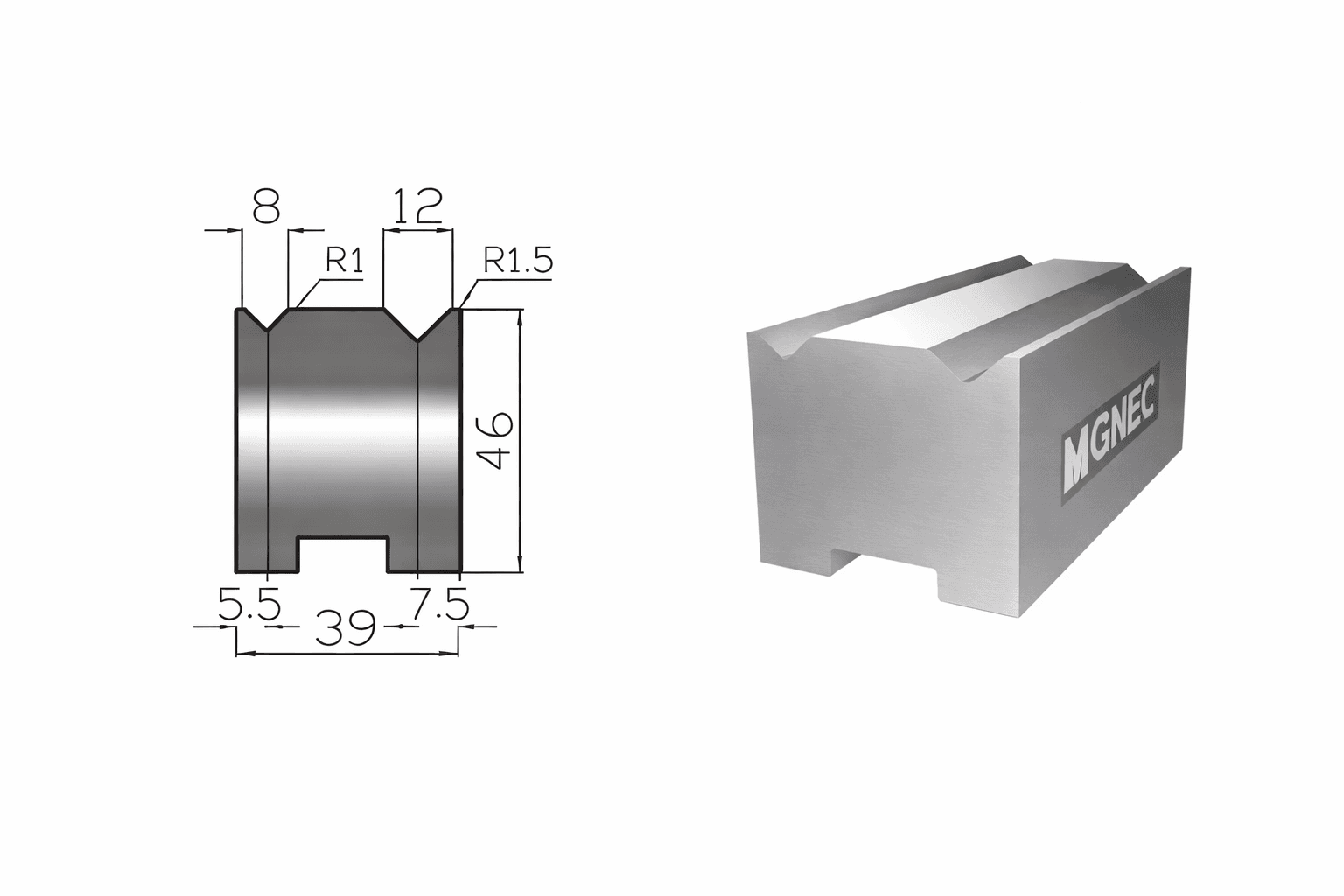

RAIL TYPE 2 V DIE
Product Range
| Model No | Bending Force | Bending Length | Capacity | Clearpass | Ram Stroke | Open Height | Depth Throat | Speed mm/Sec | Fast Clamp | Motor H.P. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Approach | Pressing | Return | ||||||||||
| MT-PBF-316 | 30 TON | 1600 | 1600 x 2 | 1250 | 125 | 300 | 200 | 100 | 6 | 65 | 8 | 3 |
| MT-PBF-625 | 60 TON | 2500 | 2500 x 2 | 2000 | 150 | 340 | 200 | 100 | 6 | 80 | 12 | 5 |
| MT-PBF-632 | 60 TON | 3200 | 3200 x 2.5 | 2700 | 150 | 340 | 200 | 100 | 6 | 80 | 16 | 5 |
| MT-PBF-825 | 80 TON | 2500 | 2500 x 2 | 2000 | 150 | 340 | 250 | 100 | 6 | 80 | 12 | 7.5 |
| MT-PBF-832 | 80 TON | 3200 | 3200 x 2.5 | 2700 | 150 | 340 | 250 | 100 | 6 | 80 | 16 | 7.5 |
| MT-PBF-1025 | 100 TON | 2500 | 2500 x 3 | 2000 | 150 | 370 | 250 | 100 | 7 | 80 | 12 | 10 |
| MT-PBF-1032 | 100 TON | 3200 | 3200 x 4 | 2700 | 150 | 370 | 250 | 100 | 7 | 80 | 16 | 10 |
| MT-PBF-1040 | 100 TON | 4000 | 4000 x 5 | 3200 | 150 | 370 | 250 | 100 | 7 | 80 | 20 | 10 |
| MT-PBF-1232 | 120 TON | 3200 | 3200 x 4 | 2700 | 150 | 370 | 300 | 100 | 6 | 80 | 16 | 10 |
| MT-PBF-1240 | 120 TON | 4000 | 4000 x 5 | 3200 | 150 | 370 | 300 | 100 | 6 | 80 | 20 | 10 |
| MT-PBF-1520 | 150 TON | 2000 | 2000 x 4 | 2000 | 200 | 430 | 300 | 100 | 6 | 80 | 8 | 10 |
| MT-PBF-1625 | 160 TON | 2500 | 2500 x 8 | 2000 | 200 | 430 | 300 | 100 | 6 | 80 | 12 | 15 |
| MT-PBF-1632 | 160 TON | 3200 | 3200 x 6 | 2700 | 200 | 430 | 300 | 100 | 6 | 80 | 16 | 15 |
| MT-PBF-1640 | 160 TON | 4000 | 4000 x 5 | 3200 | 200 | 430 | 300 | 100 | 6 | 80 | 20 | 15 |
| MT-PBF-2032 | 200 TON | 3200 | 3200 x 8 | 2700 | 200 | 430 | 350 | 100 | 6 | 80 | 16 | 20 |
* Capacities rated for MS (LTS 45 kg/mm²). Bending capacities stated are only representative and non-binding. Allow extra capacity under specific conditions. The right to change specifications and features without notice is reserved. Compliance with safety requirements as per local regulations is the responsibility of the user.

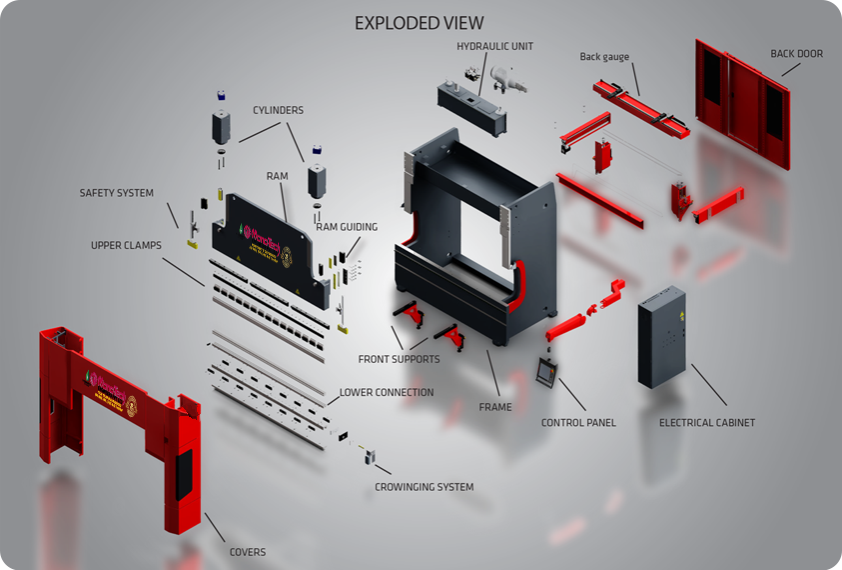

Design & Construction
- ✔Bending Capacity: 63 to 600 Ton (customized)
- ✔Bending Length: 1600 mm to 6200 mm (as per requirement)
- ✔Axis Configuration: Y1, Y2, X, + V (3+1 Axis) with optional X1, X2, R1, R2, Z1, Z2
- ✔Crowning System: Motorized or CNC-controlled hydraulic crowning
- ✔CNC Controller: CYBELEC CYBTOUCH 8 PS (Upgradable to CYBTOUCH 12 PS / VISI Touch / Delem / ESA)
- ✔Structure: Rigid mono-block welded frame with minimal deflection
- ✔Hydraulic Cylinders: Front-mounted cylinders for accurate movement
What Makes Our Design Unique?
At Monotech Engineers, we engineer our CNC Press Brakes with a laser-sharp focus on accuracy, durability, and user convenience. Our design stands apart from others due to:
- ✔FEA-Analyzed Mono-Block Frame: Minimizes deflection during heavy bending operations, ensuring accuracy and long service life.
- ✔Motorized/CNC Hydraulic Crowning System: Delivers uniform angle precision across the entire bending length.
- ✔Forged & Honed Hydraulic Cylinders: Precision-machined with imported seals for jerk-free ram movement and consistent performance.
- ✔Imported HAWE Hydraulics (Germany): Ensures High-frequency response valves for real-time accuracy and energy-efficient flow control.
- ✔Backgauge on Linear Motion Guides: Allows micrometric adjustment, precision alignment, and resistance to crash.
- ✔Tooling Compatibility: European standard Segment-wise punch and die sets designed to match European standards with quick-release clamping for fast tool changes.
- ✔Flexible Automation Options: From basic 3+1 Axis to 6+1 Axis configurations with expandable controller upgrades.

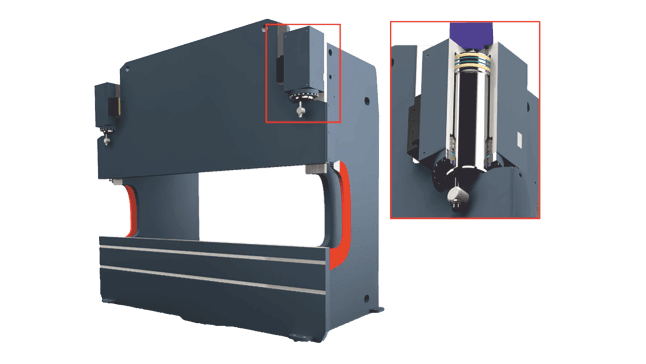

Hydraulic Cylinders With Imported Seals
Forged & Honed Cylinder, machined on high accuracy VMC Machines & having a round joint with the ram to absorb sudden jerks.
Monotech press brakes are designed to increase your productivity and decrease your per unit cost. Design innovations based on our years of experience have resulted in faster speeds on the approach, bending, return and back gauge. Monotech Press Brake features a rigid mono-block frame for minimum deflection under load. Synchronized dual cylinders and Hawe Germany valves assure smooth, stable ram motion for high-quality, precision bends.

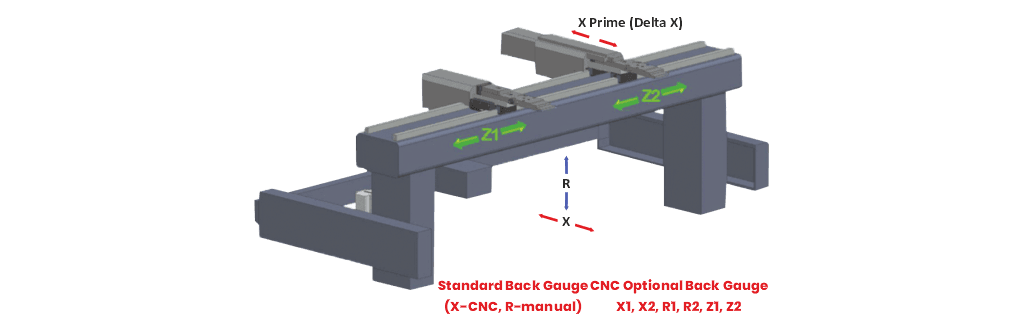

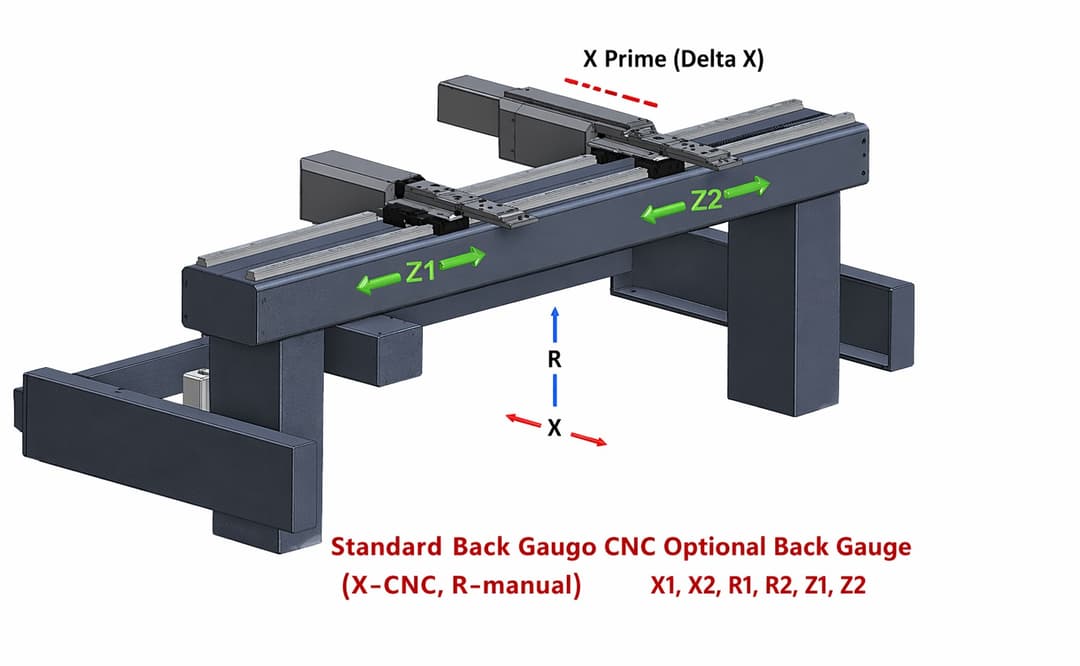

Strong Back Gauge System
Precise Reliable Strong
- ✔Performance: Precise, reliable, and strong operation.
- ✔Accuracy: Fast operation with high precision results.
- ✔Safety: Ensures safe and smooth movement.
- ✔Adjustability: Adjustment available at every point.
- ✔Durability: High resistance to crashes and impacts.
- ✔Maintenance: Designed for maintenance-free operation.

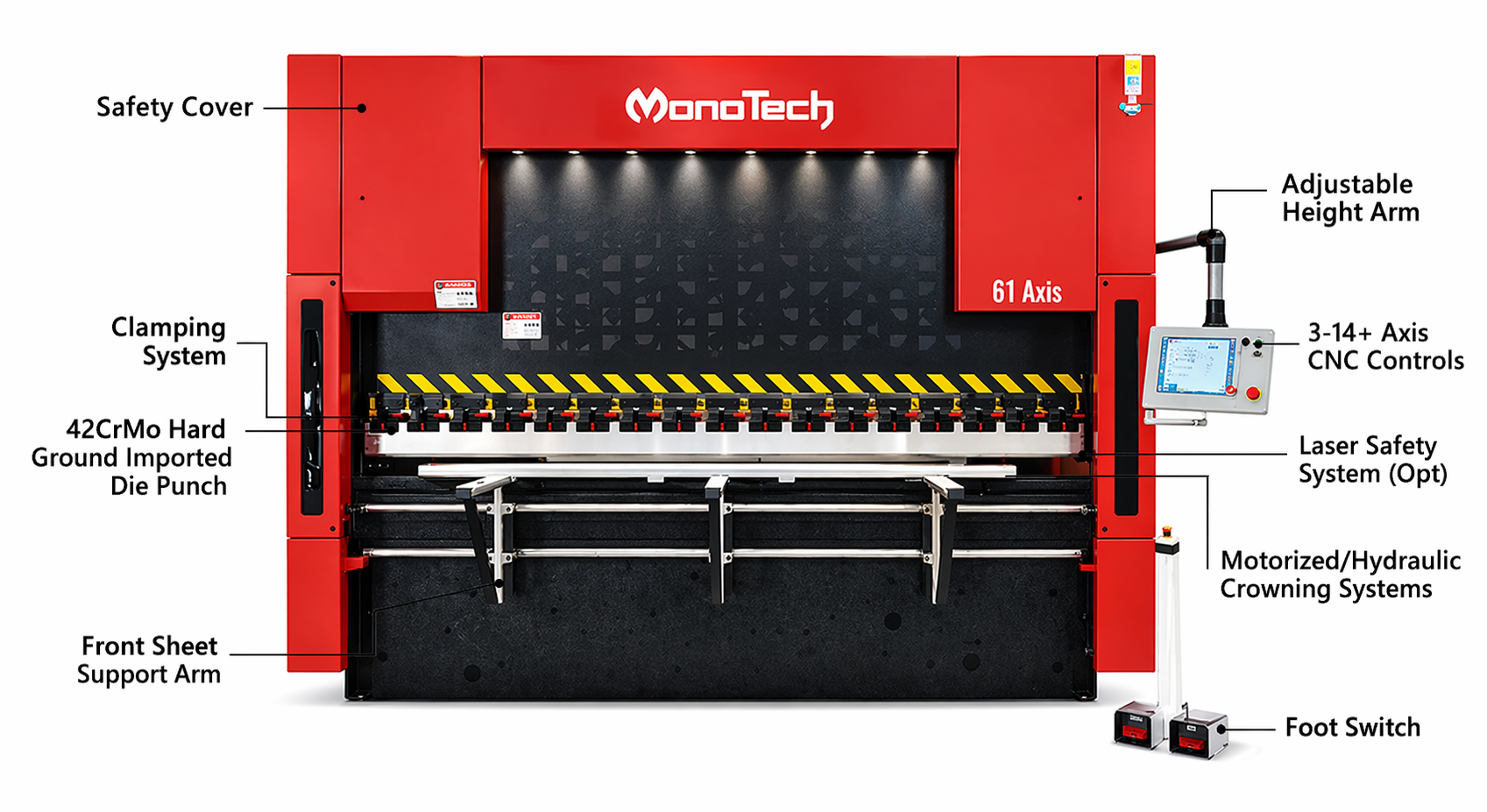

Key Features & Accessories
Performance-Driven Design
Fast & Accurate Bending
High-speed movement with pre-set approach, bending, and return speeds
Forged Cylinders & HAWE Hydraulics
Meets European Union safety and performance standards.
Chrome-Plated 42CrMo Tooling
Includes gooseneck, knife, sash, rail type 2V, and spring hemming dies
Laser & Mechanical Safety Systems
Prevent accidents and enhance operator confidence
Adjustable Front Sheet Supports & Foot Switches
Improve ergonomics and ease of use
Want to Know More?
Download our brochure or request more information to learn how Monotech can help you achieve your manufacturing goals.
The MONOTECH Advantage
Monotech Engineers operates with a modern, well-equipped manufacturing facility designed for precision engineering and heavy fabrication. Our infrastructure supports high-capacity production, ensuring seamless handling of raw materials, machining, assembly, and quality inspection — all under one roof. This enables faster turnaround, consistent quality, and reliable delivery timelines.
With over three decades of industry experience, Monotech Engineers has built a strong reputation in sheet metal machinery and industrial solutions. Our deep engineering expertise allows us to understand complex customer requirements and deliver machines that perform with precision, durability, and efficiency in demanding environments.
Our machines are widely used across diverse industries including automotive, fabrication, construction, and heavy engineering. From precision CNC machines to robust forming solutions, Monotech products are trusted for their performance, accuracy, and long operational life.
We believe in building long-term partnerships, not just delivering machines. Our growing base of satisfied clients reflects our commitment to quality, service, and continuous support. From installation to after-sales service, we ensure our customers operate with confidence and reliability.
Build Quality & Benefits
Performance-Driven Design
Fast & Accurate Bending
High-speed movement with pre-set approach, bending, and return speeds for maximum productivity and precision.
Forged Cylinders & HAWE Hydraulics
Equipped with premium forged cylinders and HAWE hydraulic systems that comply with European Union safety and performance standards.
Chrome-Plated 42CrMo Tooling
Comes with high-quality tooling including gooseneck, knife, sash, rail type 2V, and spring hemming dies for versatile bending operations.
Laser & Mechanical Safety Systems
Advanced laser guards and mechanical protection systems help prevent accidents and improve operator confidence during operation.
Adjustable Front Sheet Supports
Ergonomically designed front sheet supports provide better handling of large workpieces and improve operator comfort.
Industrial Foot Switch Controls
Heavy-duty foot switch controls ensure smooth machine operation with enhanced accessibility and ease of use.
Precision CNC Back Gauge
Servo-driven CNC back gauge system delivers accurate and repeatable positioning for complex and high-volume bending applications.

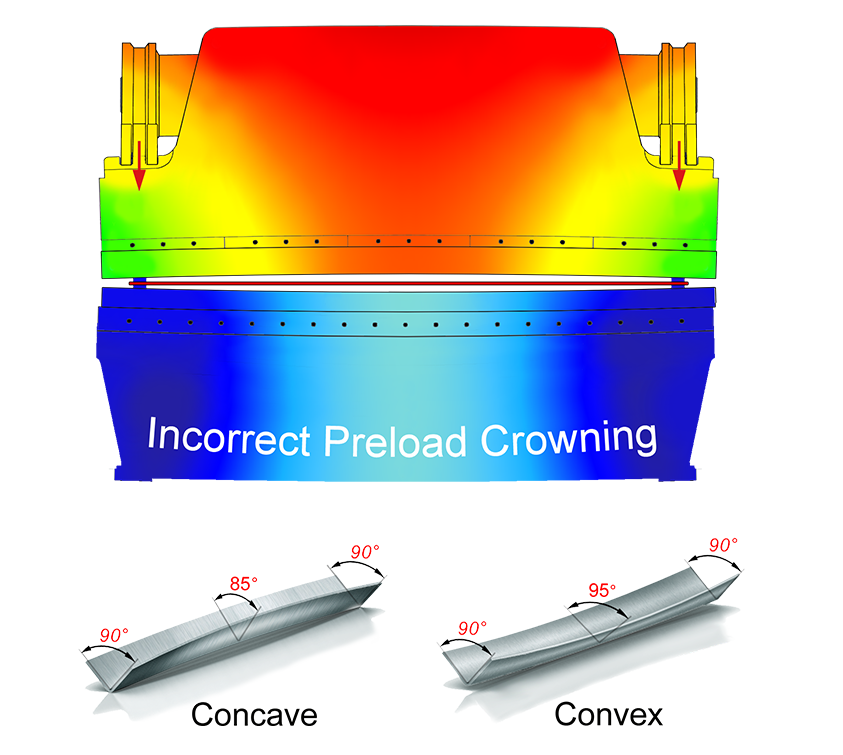

Hydraulic Crowning System
Ensures uniform bending angle accuracy across the full bending length by compensating for table deflection during operation.
Advanced CNC Controller
User-friendly CNC interface with programmable multi-axis controls for efficient setup, automation, and repeatability.
