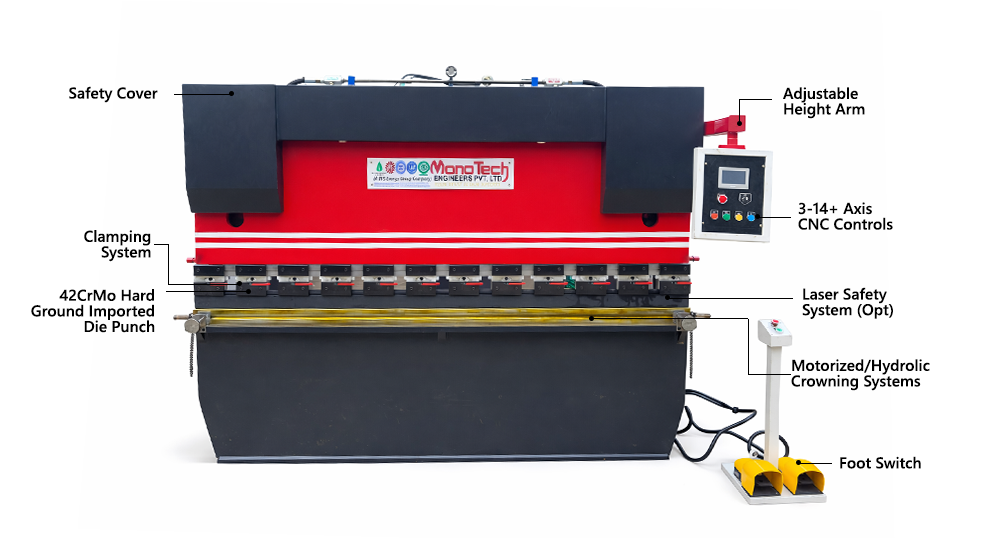

PLC Hydraulic Press Brake
A Global First. Electrically Controlled Precision. Only from Monotech
Product Overview
At Monotech Engineers Pvt Ltd, we have redefined what’s possible with a PLC-based press brake. Our world-first innovation gives manufacturers access to a 3-axis bending machine (X, Y1, Y2) where each hydraulic cylinder (Y1 & Y2) can be adjusted separately via electrical control — without any mechanical restriction. This revolutionary system, paired with a Schneider PLC for backgauge control, makes our PLC Press Brake the most advanced in its class, and a global exclusive.
Applications of CNC Press Brake
Our CNC Press Brakes are widely used across multiple industries for precision sheet metal bending.
Automobile
Used for manufacturing car body panels, frames, doors, and structural components.
Appliance Industry
Used in making refrigerators, ovens, washing machines, and home appliance panels.
Construction Industry
Used for roofing sheets, structural frames, and building components.
Electronics
Used for electrical panels, enclosures, and precision metal parts.
Aerospace
Used for aircraft panels, wing parts, and precision engineered components.
Operational Benefits
SASH PUNCH
GOOSENECK PUNCH
KNIFE PUNCH
4 V DIE
SPRING HEMMING DIE & PUNCH
RAIL TYPE 2 V DIE
Product Range
| Model | Bending Force | Capacity | Table Width | Clear Pass | Ram Stroke | Open Height | Depth | Motor H.P. | Speed App-Pre-Ret |
|---|---|---|---|---|---|---|---|---|---|
| MT-PBR-412 | 40 TON | 1200 x 4 | 150 | 900 | 100 | 250 | 200 | 5 | 35-9-60 |
| MT-PBR-415 | 40 TON | 1500 x 3 | 150 | 1100 | 100 | 250 | 200 | 5 | 35-9-55 |
| MT-PBR-420 | 40 TON | 2000 x 2.5 | 150 | 1500 | 100 | 250 | 200 | 5 | 35-9-55 |
| MT-PBR-425 | 40 TON | 2500 x 2 | 150 | 2000 | 100 | 250 | 200 | 5 | 35-9-55 |
| MT-PBR-430 | 40 TON | 3000 x 1.6 | 150 | 2500 | 100 | 250 | 200 | 5 | 35-9-55 |
| MT-PBR-615 | 60 TON | 1525 x 5 | 175 | 1150 | 125 | 330 | 200 | 5 | 25-6-50 |
| MT-PBR-620 | 60 TON | 2030 x 4 | 175 | 1500 | 125 | 330 | 200 | 5 | 25-6-50 |
| MT-PBR-623 | 60 TON | 2540 x 3 | 175 | 2000 | 125 | 330 | 200 | 5 | 25-6-50 |
| MT-PBR-630 | 60 TON | 3125 x 2.5 | 175 | 2500 | 125 | 330 | 200 | 5 | 25-6-50 |
| MT-PBR-815 | 80 TON | 1525 x 6 | 200 | 1150 | 150 | 330 | 250 | 7.5 | 37-6-41 |
| MT-PBR-820 | 80 TON | 2030 x 5 | 200 | 1500 | 150 | 330 | 250 | 7.5 | 37-6-41 |
| MT-PBR-825 | 80 TON | 2540 x 4 | 200 | 2000 | 150 | 330 | 250 | 7.5 | 37-6-41 |
| MT-PBR-830 | 80 TON | 3125 x 3 | 200 | 2500 | 150 | 330 | 250 | 7.5 | 37-6-41 |
| MT-PBR-840 | 80 TON | 4000 x 2.5 | 200 | 3500 | 150 | 330 | 250 | 7.5 | 37-6-41 |
| MT-PBR-1020 | 100 TON | 2030 x 6 | 200 | 1500 | 150 | 330 | 250 | 10 | 40-5-40 |
* Capacities rated for MS. (LTS 45g/mm²) Bending capacities stated are only representative and non binding. Allow extra capacity for special conditions. Right to change specification, features without notice reserved. Compliance with safety requirements as per local regulations is responsibility of the user.
Design & Construction
- ✔Bending Capacity: 40 to 600 Tons
- ✔Bending Length: 1250 mm to 6000 mm
- ✔Axis Configuration: 3 Axis – X (PLC controlled), Y1 & Y2 (Electrically adjustable via limit switches)
- ✔Y-Axis Adjustment: Independent Y1 & Y2 setting without mechanical restriction
- ✔Controller: Schneider PLC (handles backgauge positioning)
- ✔Backgauge: Automatic, equipped with ball screw, LM guide, and timing belt
- ✔Frame: Heavy-duty mono-block welded structure with FEA analysis
Our Breakthrough Innovation — First in the World
Most PLC press brakes restrict Y1 & Y2 adjustment mechanically — limiting precision and reducing machine life.
Monotech’s patented design changes everything.
- ✔Y1 & Y2 Adjusted Electrically: No mechanical linkage. Each cylinder moves freely and independently based on electrical signals.
- ✔Higher Accuracy, Longer Machine Life: Eliminates mechanical stress and misalignment issues.
- ✔Only from Monotech: No other manufacturer in the world offers this feature — it’s our in-house R&D innovation.
This innovation gives users true CNC-like accuracy at a PLC price, without sacrificing flexibility or control.
Why Monotech’s PLC Press Brake is One of a Kind?
Monotech Engineers Pvt Ltd is committed to delivering high-quality, reliable machines. Here’s why our PLC Press Brake stand out:
- ✔World’s Only PLC Press Brake with Independent Electrical Y1 & Y2 Adjustment
- ✔Gives CNC-Level Accuracy at a Fraction of CNC Cost
- ✔In-House Developed System — Proven, Tested, Patented
- ✔Best for Sheet Metal Job Shops, Cable Trays, Electrical Panels, and Enclosures
- ✔Budget-Friendly Automation – Simplified control with backgauge automation using Schneider PLC
- ✔Double Limit Switch Control – Precise cylinder movement adjustment without a complex controller
- ✔Made in India, Exported Globally – Serving over 44+ countries with CE and ISO 9001:2015 compliance
Key Features & Accessories
Performance-Driven Design
Control & Axis Configuration
3 Axis Control: X (via Schneider PLC), Y1 & Y2 (via electrically adjusted limit switches)
Backgauge System
- Mounted on LM guides
- Ball screw with timing belt
- Crash-resistant, maintenance-free
Y1 & Y2 Precision Control: Electrically adjusted stroke stoppers — no mechanical tie
Structure & Components
- FEA-analyzed frame for stability under heavy loads
- Honed, forged cylinders with high-precision piston movement
- HAWE or Rexroth hydraulics
- Motors: Siemens / ABB / CG
- Electricals: Schneider Electric (standard)
- Tooling: European standard compatible punches & dies (optional quick-release clamps)
Operator-Centric Features
- Adjustable front sheet support arms on linear guides
- Foot switch operation
- Optional laser or mechanical safety devices
- Easy setup with minimal training
Want to Know More?
Download our brochure or request more information to learn how Monotech can help you achieve your manufacturing goals.
The MONOTECH Advantage
Monotech Engineers operates with a modern, well-equipped manufacturing facility designed for precision engineering and heavy fabrication. Our infrastructure supports high-capacity production, ensuring seamless handling of raw materials, machining, assembly, and quality inspection — all under one roof. This enables faster turnaround, consistent quality, and reliable delivery timelines.
With over three decades of industry experience, Monotech Engineers has built a strong reputation in sheet metal machinery and industrial solutions. Our deep engineering expertise allows us to understand complex customer requirements and deliver machines that perform with precision, durability, and efficiency in demanding environments.
Our machines are widely used across diverse industries including automotive, fabrication, construction, and heavy engineering. From precision CNC machines to robust forming solutions, Monotech products are trusted for their performance, accuracy, and long operational life.
We believe in building long-term partnerships, not just delivering machines. Our growing base of satisfied clients reflects our commitment to quality, service, and continuous support. From installation to after-sales service, we ensure our customers operate with confidence and reliability.
Build Quality & Benefits

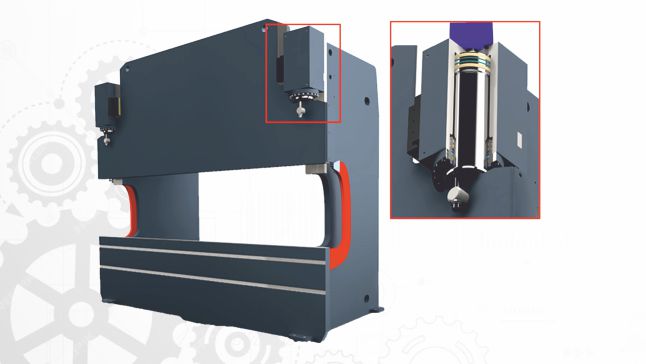

Heavy-Duty Frame Structure
Our PLC Hydraulic Press Brake Machines are built with a robust, welded steel frame designed to handle continuous industrial operations with high stability and strength. The structure is stress-relieved for enhanced durability, ensuring long service life, reduced vibration, and reliable bending accuracy over time.
Efficient PLC Control System
The machine is equipped with an advanced PLC-based control system that allows smooth and user-friendly operation. Operators can easily control bending functions, stroke settings, and machine movements with precision, making the process simple, efficient, and dependable for daily production needs.
Accurate Bending Performance
The PLC Hydraulic Press Brake is designed to deliver precise and uniform bending results across different sheet thicknesses and profiles. Its synchronized hydraulic system ensures consistent ram movement, helping achieve accurate bends with minimal error and improved product quality.
Hydraulic Power & Smooth Operation
Powered by a high-performance hydraulic system, the machine ensures smooth pressure control and reliable bending force throughout the operation. This results in stable machine performance, reduced manual effort, and improved efficiency for medium to heavy-duty fabrication work.
Accurate Bending Performance
The PLC Hydraulic Press Brake is designed to deliver precise and uniform bending results across different sheet thicknesses and profiles. Its synchronized hydraulic system ensures consistent ram movement, helping achieve accurate bends with minimal error and improved product quality.
Hydraulic Power & Smooth Operation
Powered by a high-performance hydraulic system, the machine ensures smooth pressure control and reliable bending force throughout the operation. This results in stable machine performance, reduced manual effort, and improved efficiency for medium to heavy-duty fabrication work.
Back Gauge Positioning System
The machine features a reliable back gauge system for accurate positioning of the workpiece during bending. This helps maintain repeatability in production, reduces setup time, and improves overall dimensional consistency, especially in batch manufacturing applications.
Operator-Friendly Functionality
With its simple control interface and easy parameter setting, the PLC Hydraulic Press Brake is highly convenient for operators. It reduces complexity in machine handling and allows quick adjustments, making it suitable for workshops looking for productivity with ease of use.
Tooling Versatility
Our PLC Hydraulic Press Brake supports a wide range of punches and dies, enabling it to perform various bending applications across different materials and job requirements. This flexibility makes the machine ideal for both standard fabrication tasks and customized bending jobs.
Safety & Reliable Performance
Safety features are integrated to ensure secure machine operation and operator protection. The machine is built for dependable performance under demanding shop-floor conditions, offering long-term reliability, low maintenance requirements, and smooth production workflow.
