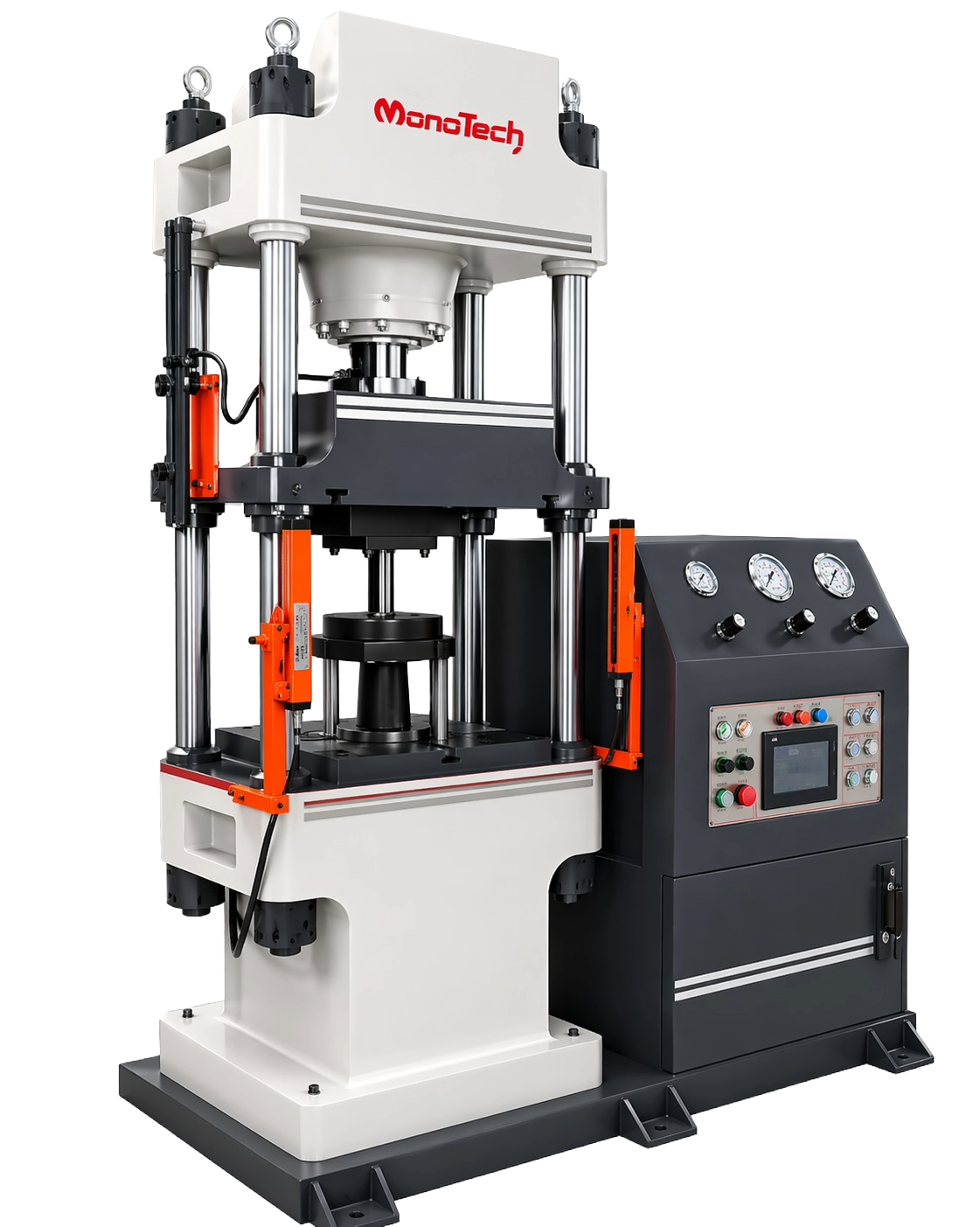

Hydraulic Deep Draw Machine
Product Overview
At Monotech Engineers Pvt Ltd, we design Hydraulic Deep Draw Machines that deliver exceptional forming performance with high precision, reliability, and efficiency. Engineered for demanding industrial applications, our machines convert metal sheets into complex, seamless components with superior accuracy and repeatability. With a robust structure, advanced hydraulic systems, and user-friendly controls, they ensure smooth operation, consistent output quality, and long service life—maximizing productivity while minimizing downtime.
Applications of Hydraulic Deep Draw Machine
Hydraulic Deep Draw Machines are widely used across multiple industries for forming complex sheet metal components with high precision.
Deep Drawn Components
Used for manufacturing seamless parts like cups, cans, and cylindrical components with uniform thickness and high accuracy.
Automotive Industry
Ideal for producing fuel tanks, body panels, filters, and other deep drawn automotive components.
Electrical & Electronics
Used for forming enclosures, junction boxes, battery casings, and precision metal housings.
Kitchenware & Utensils
Perfect for manufacturing stainless steel sinks, cookware, and household metal products.
Aerospace & Precision Engineering
Suitable for high-precision components requiring strength, accuracy, and superior surface finish.

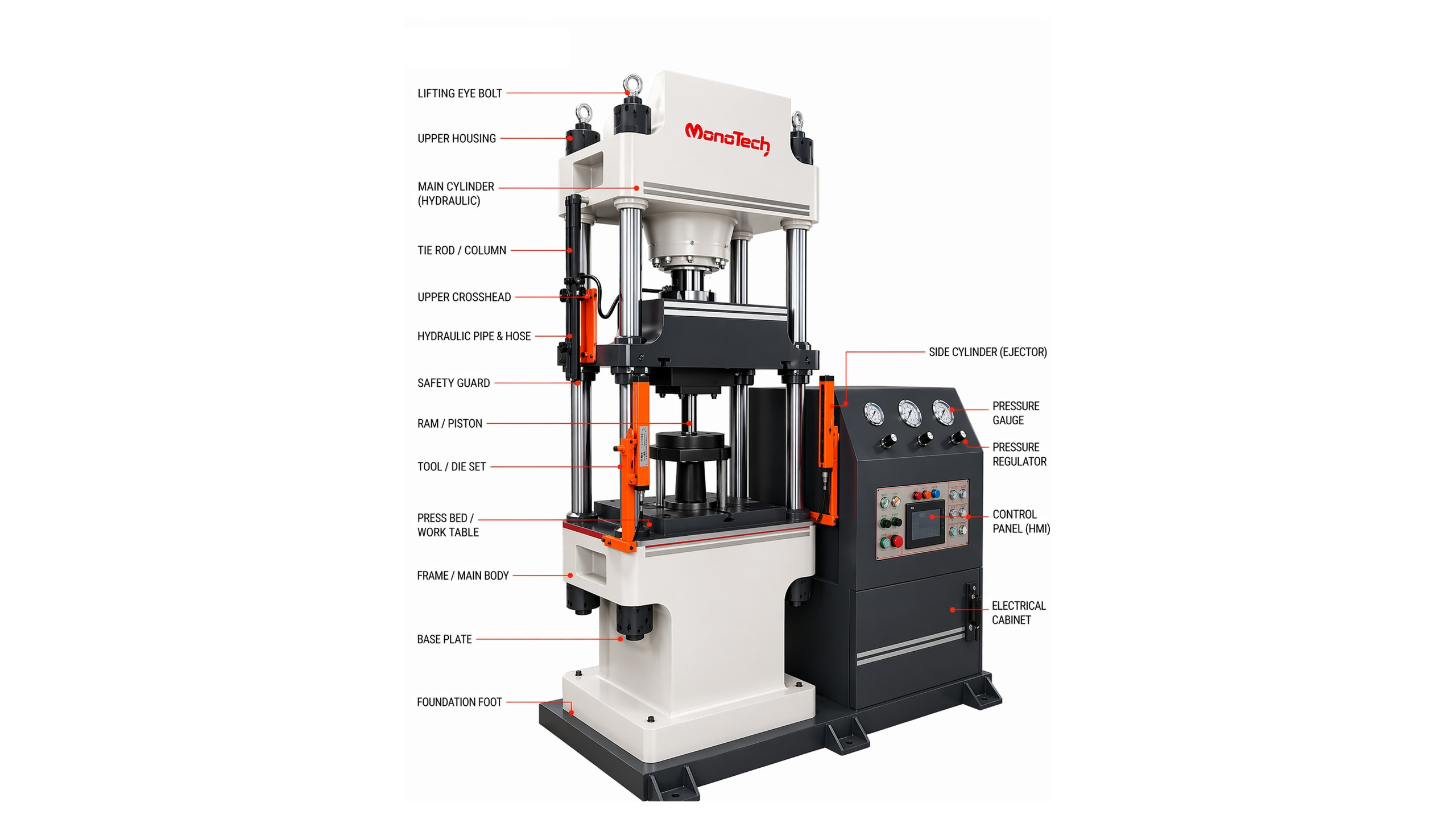

Design & Construction
- ✔Heavy-Duty Fabricated Frame – High Rigidity & Stability: The machine is built with a robust, stress-relieved fabricated steel structure, ensuring maximum rigidity and minimal deflection during high-tonnage operations. This enhances accuracy, durability, and long-term performance.
- ✔High-Precision Hydraulic System: Equipped with advanced hydraulic components, the system delivers consistent pressure and smooth motion control. It ensures uniform deep drawing, reduces shock loads, and improves component quality.
- ✔Chrome-Plated Guide Columns – Smooth & Accurate Movement: The machine features precision ground and hard chrome-plated columns that provide excellent guidance and alignment of the moving platen, ensuring smooth operation and reduced wear.
- ✔Advanced PLC / HMI Control System: Integrated with a user-friendly PLC and touchscreen HMI, operators can easily set parameters like pressure, stroke, and dwell time—improving control, repeatability, and operational efficiency.
- ✔Centralized Lubrication System: Automatic or centralized lubrication ensures all critical moving parts receive proper lubrication, reducing friction, minimizing maintenance, and extending machine life.
- ✔Compact & Ergonomic Design: Designed for operator convenience, the machine offers easy accessibility, safe operation, and optimized space utilization in industrial environments.
What Makes Our Design Unique?
- ✔Precision-Controlled Forming: Rigid frame construction, accurate ram alignment, and controlled hydraulic pressure ensure uniform deep drawing results with excellent surface finish.
- ✔Advanced Pressure Control System: The hydraulic system allows precise control of pressure, speed, and dwell time—ensuring consistent results across different materials and thicknesses.
- ✔Smooth & Stable Operation: Optimized hydraulic circuits minimize vibration and shock, enabling smooth ram movement and defect-free forming.
- ✔Heavy-Duty, Low-Maintenance Build: Robust machine structure, high-quality hydraulic components, and durable tooling ensure long service life with minimal maintenance.
- ✔High Repeatability & Accuracy: Precision-guided columns and controlled stroke movement guarantee repeatable performance for batch production.
- ✔Operator-Friendly Interface: Simple controls, easy parameter settings, and safety-focused design make the machine efficient and convenient for daily operations.
Key Features & Accessories
Performance-Driven Design
High-Precision Deep Drawing
Accurate pressure and stroke control for consistent, defect-free forming
Heavy-Duty Hydraulic System
Stable pressure delivery ensures smooth and reliable operation
Advanced PLC / HMI Control
Easy parameter setting for pressure, stroke, and dwell time
Rigid Fabricated Structure
Ensures high strength, minimal vibration, and long machine life
Safety Guards & Interlocks
Enhanced operator safety with reliable protection systems
Energy Efficient Operation
Optimized hydraulic system reduces power consumption
Precision Guide Columns
Ensures perfect alignment and repeatable forming accuracy
Want to Know More?
Download our brochure or request more information to learn how Monotech can help you achieve your manufacturing goals.
The MONOTECH Advantage
Monotech Engineers operates with a modern, well-equipped manufacturing facility designed for precision engineering and heavy fabrication. Our infrastructure supports high-capacity production, ensuring seamless handling of raw materials, machining, assembly, and quality inspection — all under one roof. This enables faster turnaround, consistent quality, and reliable delivery timelines.
With over three decades of industry experience, Monotech Engineers has built a strong reputation in sheet metal machinery and industrial solutions. Our deep engineering expertise allows us to understand complex customer requirements and deliver machines that perform with precision, durability, and efficiency in demanding environments.
Our machines are widely used across diverse industries including automotive, fabrication, construction, and heavy engineering. From precision CNC machines to robust forming solutions, Monotech products are trusted for their performance, accuracy, and long operational life.
We believe in building long-term partnerships, not just delivering machines. Our growing base of satisfied clients reflects our commitment to quality, service, and continuous support. From installation to after-sales service, we ensure our customers operate with confidence and reliability.
Build Quality & Benefits
Heavy-Duty Frame Structure
Our Hydraulic Deep Draw Machine is built with a high-strength, fabricated steel frame designed to handle continuous heavy-duty forming operations. The structure is stress-relieved to eliminate internal stresses, ensuring long-term rigidity, stability, and accurate alignment of all critical components—resulting in consistent performance over years of operation.
Precision Hydraulic Forming System
The core strength of the machine lies in its advanced hydraulic system. Equipped with high-quality cylinders and synchronized control, it delivers uniform pressure distribution across the forming area. This ensures smooth deep drawing, minimal defects, and highly repeatable performance even for complex components.
Advanced Control & Automation
Integrated with PLC/HMI-based controls, the machine allows precise setting of pressure, stroke length, and dwell time. This automation reduces operator dependency, minimizes errors, and enhances overall productivity with consistent output quality.
Hydraulic System Efficiency
Designed for smooth and energy-efficient operation, the hydraulic system maintains stable pressure and controlled movement throughout the cycle. Optimized circuits reduce power consumption, lower operational costs, and extend machine life.
Advanced Control & Automation
Integrated with PLC/HMI-based controls, the machine allows precise setting of pressure, stroke length, and dwell time. This automation reduces operator dependency, minimizes errors, and enhances overall productivity with consistent output quality.
Hydraulic System Efficiency
Designed for smooth and energy-efficient operation, the hydraulic system maintains stable pressure and controlled movement throughout the cycle. Optimized circuits reduce power consumption, lower operational costs, and extend machine life.
Component Quality & Durability
Manufactured using premium-grade components, including hardened tooling interfaces and precision guide systems, the machine ensures long service life with minimal maintenance. This guarantees consistent performance, reduced downtime, and higher operational reliability.
