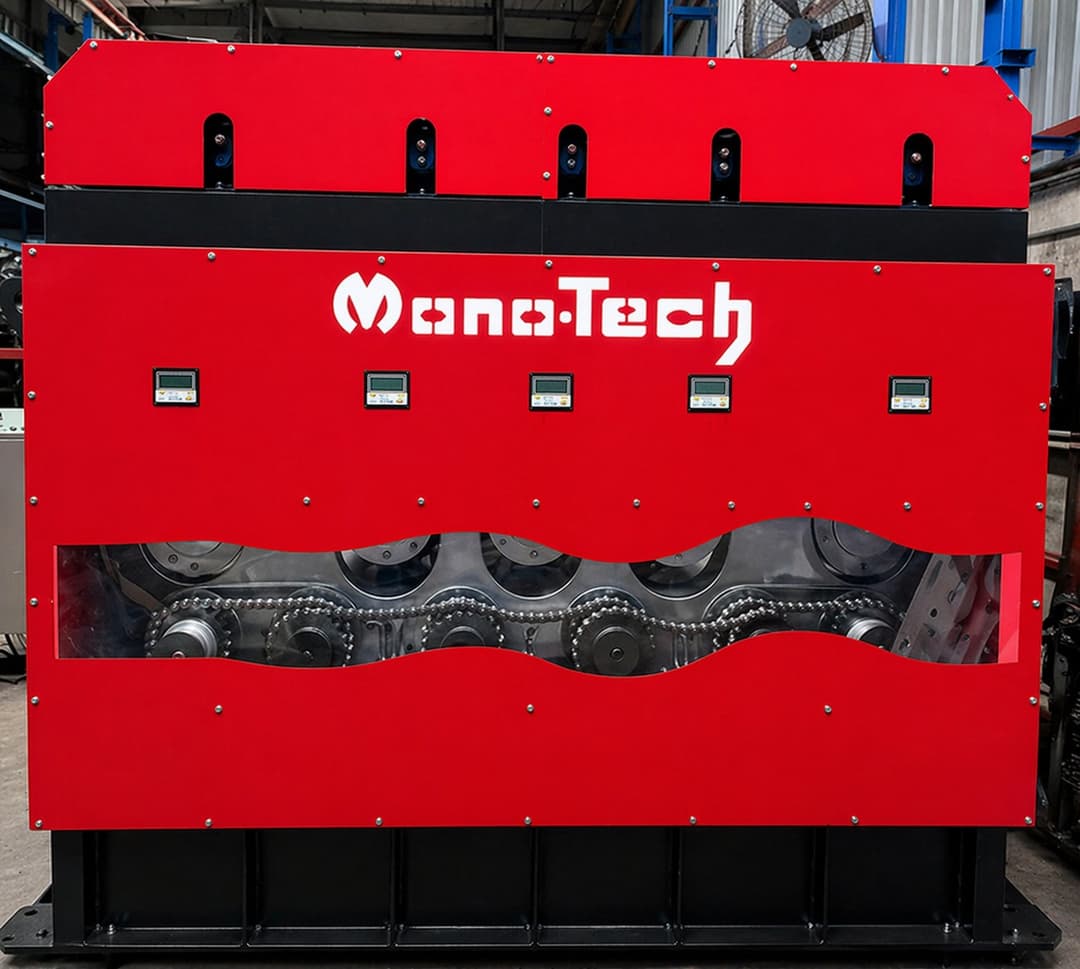

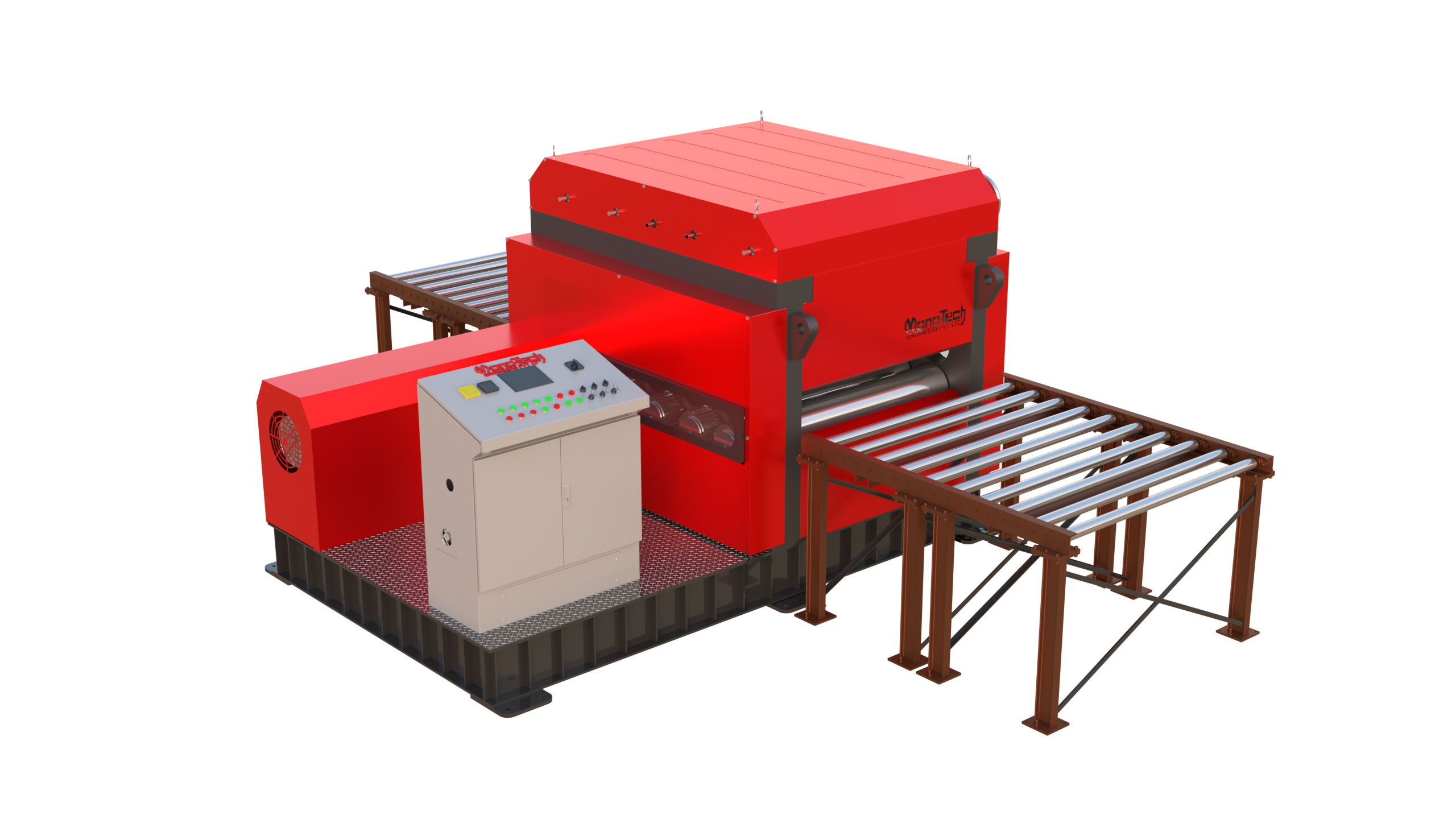

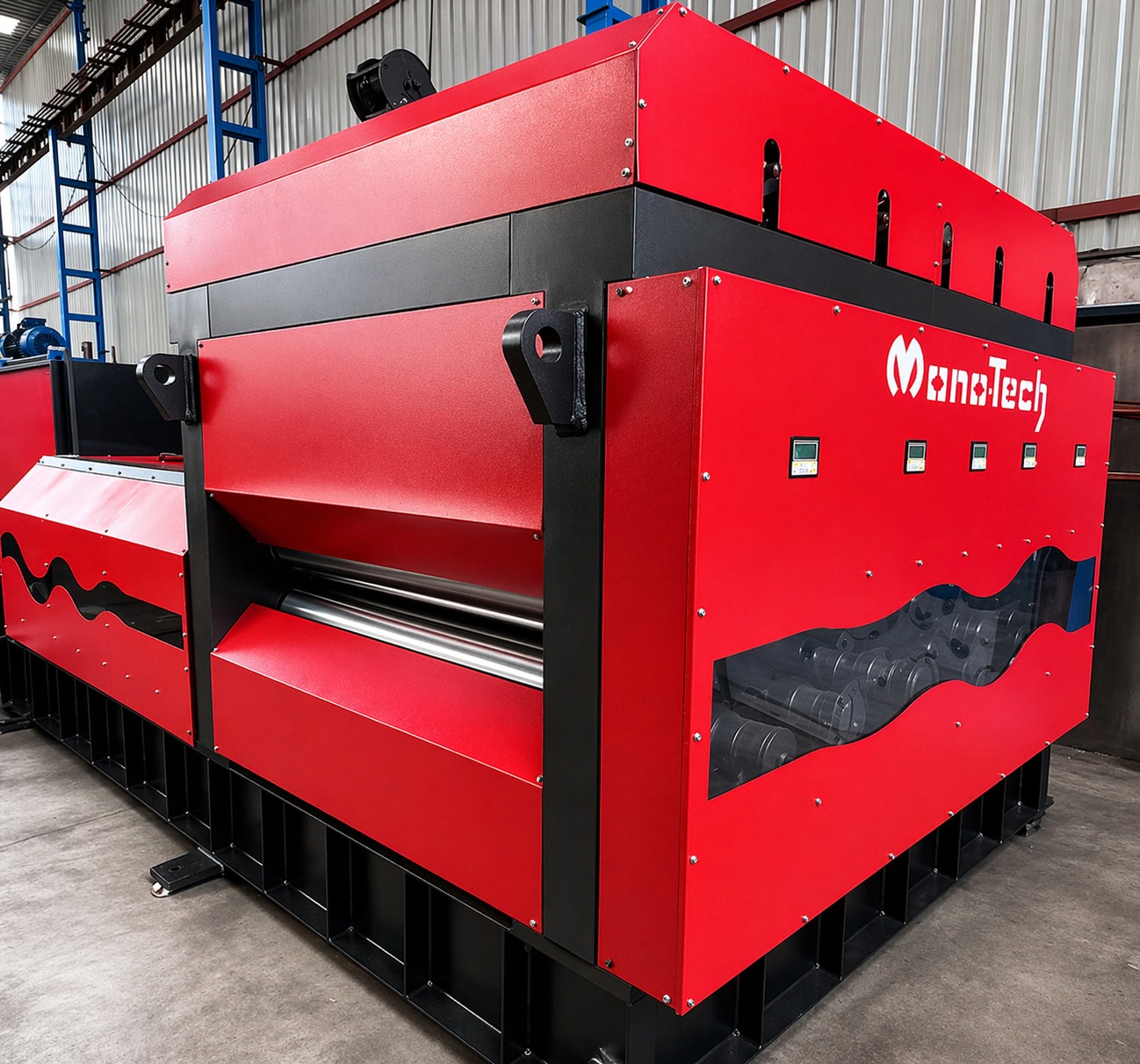

Fully Automatic Straightening Machine
Product Overview
Monotech Engineers Pvt. Ltd. presents the Fully Automatic Straightening Machine engineered to correct coil set, cross bow, and edge wave on mixed quality scrap sheets and strips with minimal operator input. A high stiffness frame, precision ground work rolls, and a PLC/HMI driven automation suite with servo penetration and sensor feedback deliver repeatable flatness, high throughput, and full traceability for service centers and fabrication lines. Available for widths 300–1600 mm and thickness ranges 0.5–8 mm (MS), with custom models for stainless, aluminum, and high strength grades, turnkey lines include decoiler, loop control, servo feeder, shear, and stacking automation to streamline end to end processing.
Applications of Fully Automatic Straightening Machine

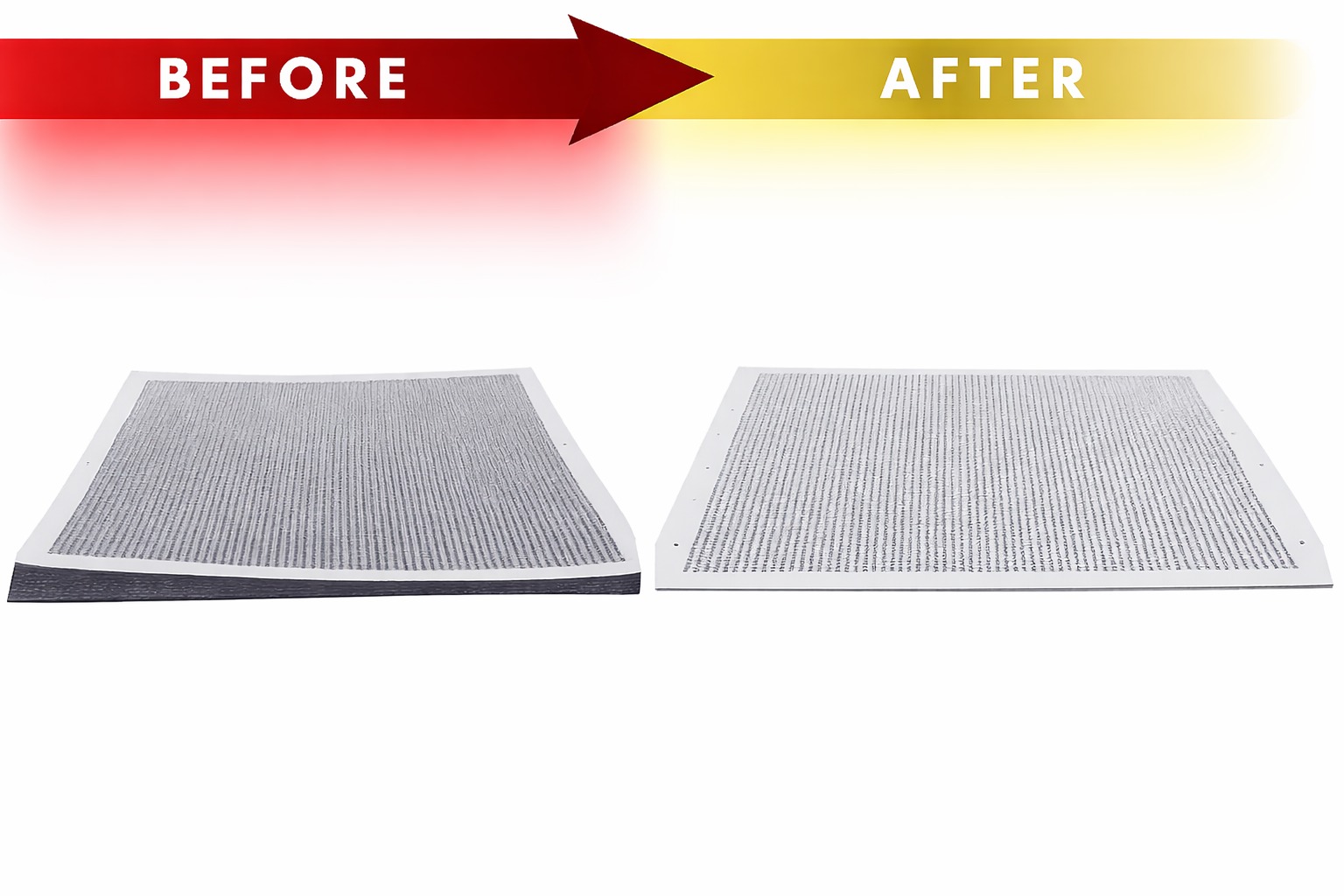

Plate & Sheet Straightening
Accurate leveling of metal sheets and plates to eliminate waviness, buckling, and residual stress

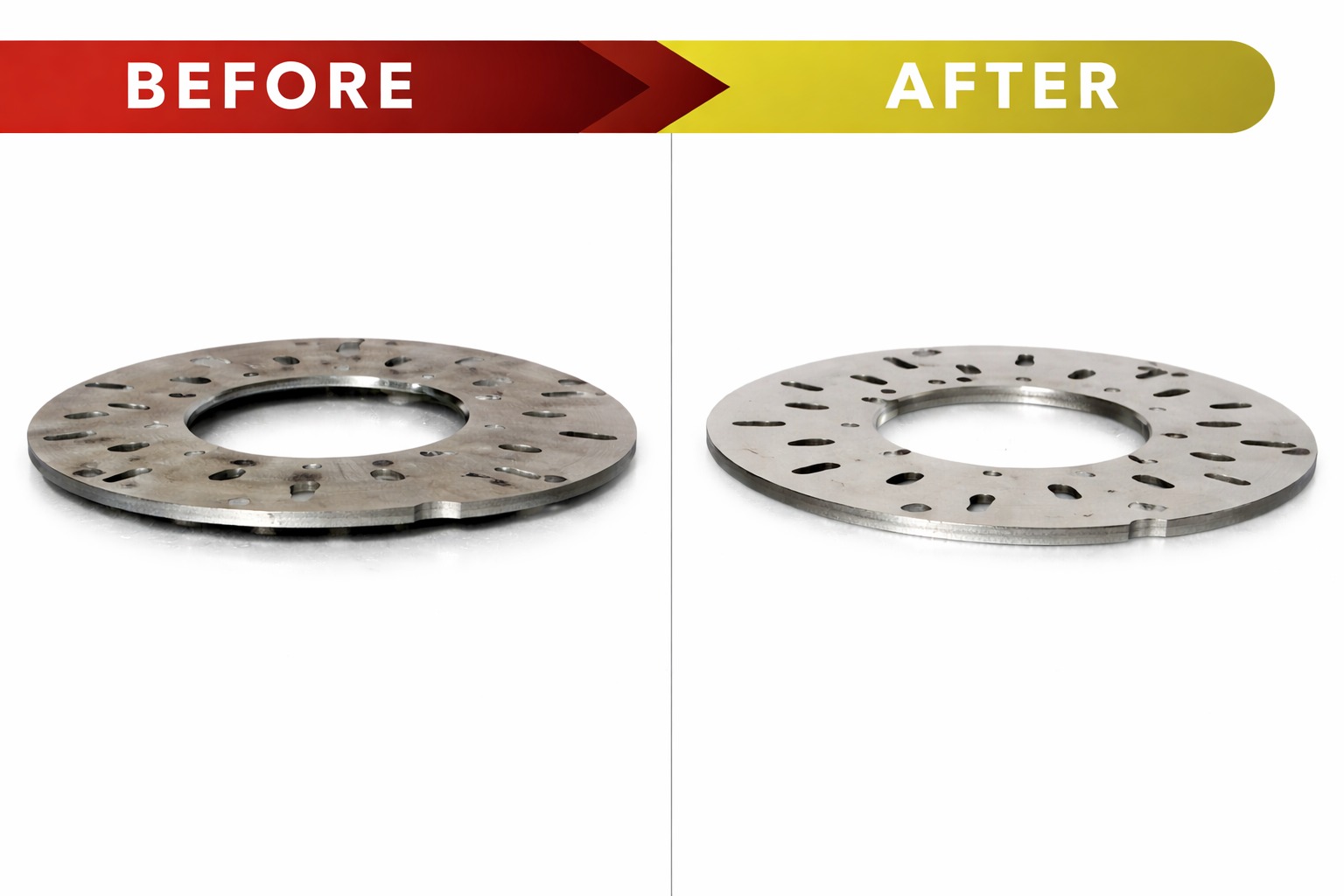

Laser / Plasma Cut Part Flattening
Restores flatness of thermally distorted components after laser or plasma cutting for better assembly accuracy.
Pre-Welding Preparation
Ensures perfectly flat components for high-quality robotic and manual welding operations.
Precision Component Correction
Corrects deformation in fabricated parts to meet tight dimensional tolerances.
Heavy Plate Processing
Efficient straightening of thick plates used in heavy engineering, construction, and infrastructure applications.
Operational Benefits
Design & Construction
- ✔Automation core: Industrial PLC/HMI runs closed loop control of roll penetration, crown compensation, speed, and pass schedules; one touch recipe start triggers an auto threading sequence to minimize setup time and scrap.
- ✔Work roll cassette: 7/9/11 precision ground, induction hardened alloy steel rolls with synchronized entry/exit pinch rolls ensure stable feeding and contact; optional chrome finish supports coated stock.
- ✔Backup system: Multi row backup bearings beneath each work roll limit deflection to preserve flatness uniformity across the strip width, enhancing downstream quality.
- ✔Drives: An electro mechanical main drive with helical gearbox and VFD maintains consistent surface speed, while servo actuators position penetration and left/right crown trim with high repeatability.
- ✔Structure: A stress relieved welded frame with heavy side plates and tie bars reduces vibration and supports long term geometric accuracy under continuous duty.
- ✔Sensors: Load/current monitoring with optional laser or roller flatness sensing at exit, entry edge guides, and loop control provide the inputs required for fully automatic pacing and adaptive correction.
What Makes Our Design Unique?
- ✔One touch flatness: Auto mode selects penetration curves, speed, and crown from the recipe and adapts using feedback to handle scrap variability without frequent operator intervention.
- ✔Quality assurance: The HMI logs flatness settings, alarms, production counters, and energy data, enabling batch wise traceability and continuous improvement.
- ✔Surface preservation Polished, hardened rolls and an optimized wrap path limit print through; chrome rolls and PU pinch options further protect sensitive surfaces.
- ✔Rapid changeovers Recipe management with barcode/ID recall, teach mode capture, and automatic roll back to safe position accelerates threading, maintenance, and repeat jobs.
Control & Handling
- ✔HMI Workflows: User-friendly interface with material selection and recipe management for thickness, yield, crown, passes, and speed. Live charts track load, flatness, and energy use, with alarm history and maintenance scheduling.
- ✔Assisted Setup: Auto-recommendations for crown and penetration based on material properties; teach mode stores proven parameters for quick reuse.
- ✔Recipe Management: Pre-set and recallable material recipes ensure consistency and reduce setup time.
- ✔Remote Monitoring: Secure connectivity for live diagnostics, alarm logs, and predictive maintenance alerts.
- ✔Training & SOPs: On-site commissioning, safety sessions, operator/maintenance SOPs, and QA documentation templates ensure safe, consistent adoption.
- ✔Error-proofing & Safety: Interlocks, guided workflows, and alarm-driven prompts prevent operator errors and material damage.
- ✔Data and Analytics: Automatic logging of runs, deviations, and KPIs supports quality control and process optimization.
- ✔Operator Ergonomics: Intuitive multilingual touch interface with simplified navigation reduces fatigue and error.
Key Features & Accessories
Performance-Driven Design
Auto threading:
Sequenced pinch/feeder motions and edge guide alignment reduce start up time and material waste for each batch.
Adaptive control:
Closed loop servo penetration and independent left/right crown trim mitigate edge wave and center buckle dynamically during production.
Line pacing
Coordinated speed control links decoiler, loop, feeder, shear, and stacker to sustain continuous throughput and stable flatness.
Safety
Dual channel E stop, light curtains or safety rope, interlocked guards, overload protection, and safe torque off drives protect operators while preserving uptime.
Want to Know More?
Download our brochure or request more information to learn how Monotech can help you achieve your manufacturing goals.
The MONOTECH Advantage
Monotech Engineers operates with a modern, well-equipped manufacturing facility designed for precision engineering and heavy fabrication. Our infrastructure supports high-capacity production, ensuring seamless handling of raw materials, machining, assembly, and quality inspection — all under one roof. This enables faster turnaround, consistent quality, and reliable delivery timelines.
With over three decades of industry experience, Monotech Engineers has built a strong reputation in sheet metal machinery and industrial solutions. Our deep engineering expertise allows us to understand complex customer requirements and deliver machines that perform with precision, durability, and efficiency in demanding environments.
Our machines are widely used across diverse industries including automotive, fabrication, construction, and heavy engineering. From precision CNC machines to robust forming solutions, Monotech products are trusted for their performance, accuracy, and long operational life.
We believe in building long-term partnerships, not just delivering machines. Our growing base of satisfied clients reflects our commitment to quality, service, and continuous support. From installation to after-sales service, we ensure our customers operate with confidence and reliability.
Build Quality & Benefits
Heavy-Duty Precision Engineered Structure
The Fully Automatic Straightening Machine is built with a high-strength, welded steel frame designed for continuous, high-load industrial operations. The structure undergoes stress-relieving treatment to ensure long-term stability, minimal deflection, and vibration-free performance, even in demanding production environments.
Advanced CNC / PLC Control System
Equipped with intelligent CNC/PLC controls, the machine allows precise programming of parameters such as material thickness, roller gap, pressure, and speed. Pre-set programs can be stored and recalled, enabling seamless operation, high repeatability, and reduced setup time.
High-Precision Roller Technology
The machine incorporates hardened and precision-ground rollers with optimized geometry to ensure uniform contact and pressure distribution. This minimizes surface damage while delivering superior straightening accuracy across a wide range of materials.
High-Speed & Continuous Operation
Designed for high productivity, the machine supports continuous and high-speed straightening processes. Automated feeding and synchronized operations significantly increase throughput, making it ideal for large-scale production environments.
High-Precision Roller Technology
The machine incorporates hardened and precision-ground rollers with optimized geometry to ensure uniform contact and pressure distribution. This minimizes surface damage while delivering superior straightening accuracy across a wide range of materials.
High-Speed & Continuous Operation
Designed for high productivity, the machine supports continuous and high-speed straightening processes. Automated feeding and synchronized operations significantly increase throughput, making it ideal for large-scale production environments.
Intelligent Automation & Process Consistency
Automation eliminates operator dependency, reducing human error and ensuring consistent output quality across batches. The system continuously maintains optimal straightening parameters, delivering reliable and repeatable results.
Energy Efficient Performance
Optimized drive systems and intelligent control mechanisms ensure efficient energy usage without compromising performance. This results in lower operational costs and improved sustainability compared to conventional systems.
Wide Material Handling Capability
Capable of handling laser-cut, plasma-cut, and thermally distorted sheets across a wide thickness range. Suitable for high-precision applications in automotive, infrastructure, heavy engineering, and fabrication industries.
Low Maintenance & Smart Diagnostics
Designed with minimal wear components and equipped with intelligent diagnostics, the machine ensures reduced maintenance requirements. Real-time monitoring helps in quick fault detection, minimizing downtime and improving operational efficiency.
TSafety & Industrial Reliability
Integrated with advanced safety features such as emergency stops, overload protection, and automated fault alerts. Built to deliver safe, stable, and reliable performance in high-demand industrial environments.
