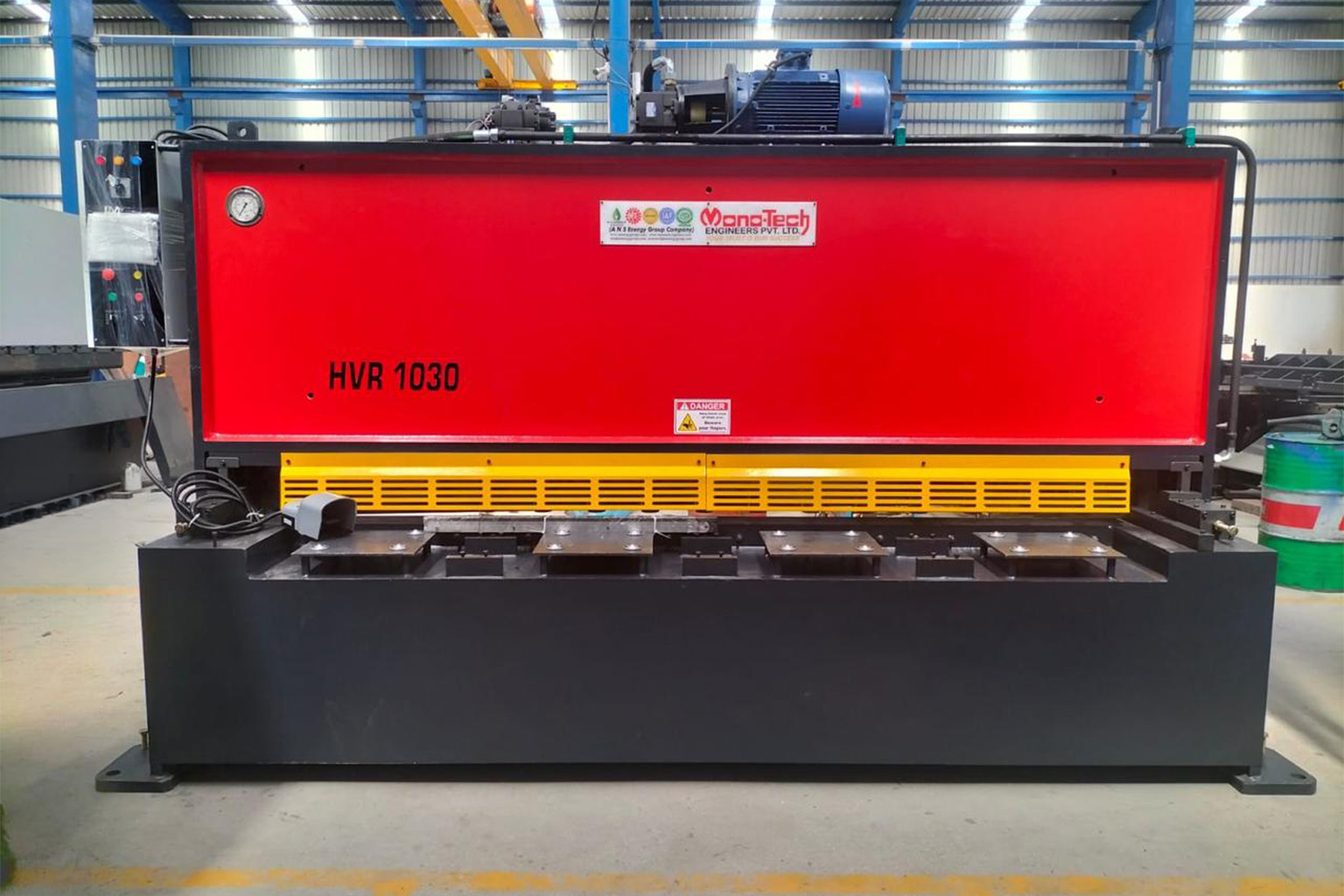

NC Hydraulic Shearing Machine
Precision Meets Productivity — Built for Sheet Metal Cutting Excellence
Product Overview
At Monotech Engineers Pvt Ltd, we design NC Shearing Machines that are the ideal blend of performance, precision, and usability. Engineered for heavy-duty applications, our machines cut steel and aluminum sheets with exceptional accuracy and consistency. Designed with years of manufacturing experience and customer feedback, our NC shears now offer an intuitive control system, enhanced automation, and premium-grade components that reduce downtime and improve operator efficiency.
Applications of NC Hydraulic Shearing Machine
Our CNC Press Brakes are widely used across multiple industries for precision sheet metal bending.
Sheet & Plate Cutting
Accurate cutting of metal sheets and plates to required sizes with clean edges and minimal distortion.
Fabrication Industry
Ideal for cutting raw materials used in fabrication of structures, frames, enclosures, and industrial components.
Pre-Welding Preparation
Ensures precise cutting of plates before welding, improving joint quality and reducing rework.
Automotive & Engineering Components
Used for cutting components with tight tolerances required in automotive and precision engineering applications.
Heavy Metal Processing
Efficient cutting of thick metal sheets used in heavy engineering, construction, and infrastructure projects.
Product Range
| Model | Cutting Length mm | Normal Rake Angle (M.S) | Maximmum Rake Angle (M.S) | Normal Rake Angle (S.S) | Maximum Rake Angle (S.S) | Variable Rake Angle | Stroke/Minute Min & Max. Rake Angle | Hold Downs | Power HP. |
|---|---|---|---|---|---|---|---|---|---|
| MT-HVR-315 | 1500 | 3 | 4 | 2 | 3 | 0.5-3° | 24 / 12 | 9 | 5 |
| MT-HVR-325 | 2500 | 3 | 4 | 2 | 3 | 0.5-3° | 20 / 10 | 13 | 5 |
| MT-HVR-330 | 3000 | 3 | 4 | 2 | 3 | 0.5-3° | 18 / 9 | 17 | 7.5 |
| MT-HVR-415 | 1500 | 4 | 6 | 3 | 4 | 0.5-3° | 22 / 11 | 9 | 5 |
| MT-HVR-425 | 2500 | 4 | 6 | 3 | 4 | 0.5-3° | 18 / 9 | 13 | 7.5 |
| MT-HVR-430 | 3000 | 4 | 6 | 3 | 4 | 0.5-3° | 16 / 8 | 17 | 10 |
| MT-HVR-615 | 1500 | 6 | 8 | 4 | 6 | 0.5-3° | 20 / 10 | 9 | 7.5 |
| MT-HVR-625 | 2500 | 6 | 8 | 4 | 6 | 0.5-3° | 16 / 8 | 13 | 10 |
| MT-HVR-630 | 3000 | 6 | 8 | 4 | 6 | 0.5-3° | 14 / 7 | 17 | 15 |
| MT-HVR-815 | 1500 | 8 | 10 | 4 | 6 | 0.5-3° | 18 / 9 | 9 | 10 |
| MT-HVR-825 | 2500 | 8 | 10 | 4 | 6 | 0.5-3° | 14 / 7 | 13 | 15 |
| MT-HVR-830 | 3000 | 8 | 10 | 4 | 6 | 0.5-3° | 12 / 6 | 17 | 20 |
| MT-HVR-840 | 4000 | 8 | 10 | 4 | 6 | 0.5-3° | 10 / 5 | 21 | 25 |
| MT-HVR-850 | 5000 | 8 | 10 | 4 | 6 | 0.5-3° | 8 / 4 | 25 | 25 |
| MT-HVR-860 | 6000 | 8 | 10 | 4 | 6 | 0.5-3° | 6 / 3 | 30 | 30 |

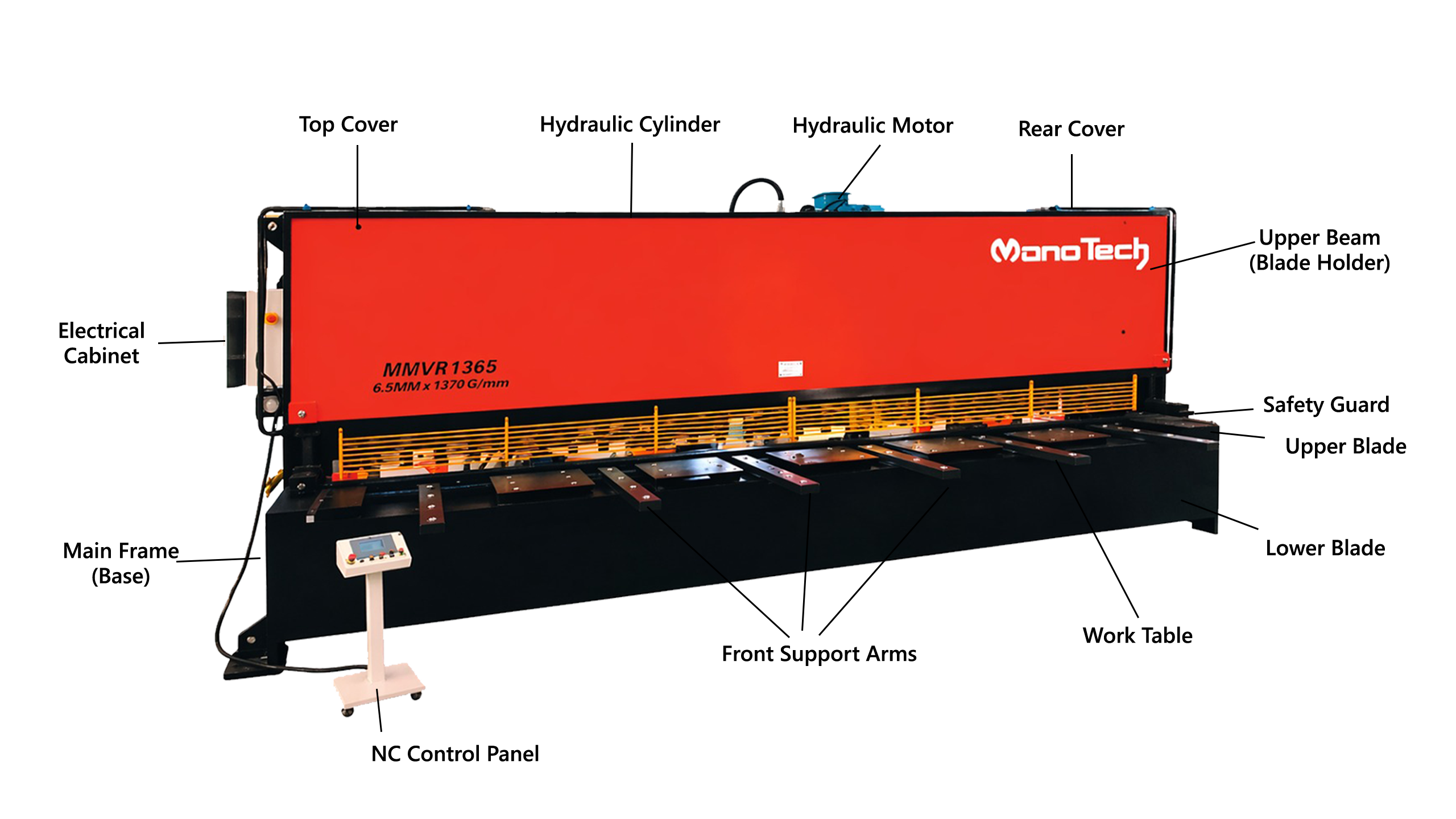

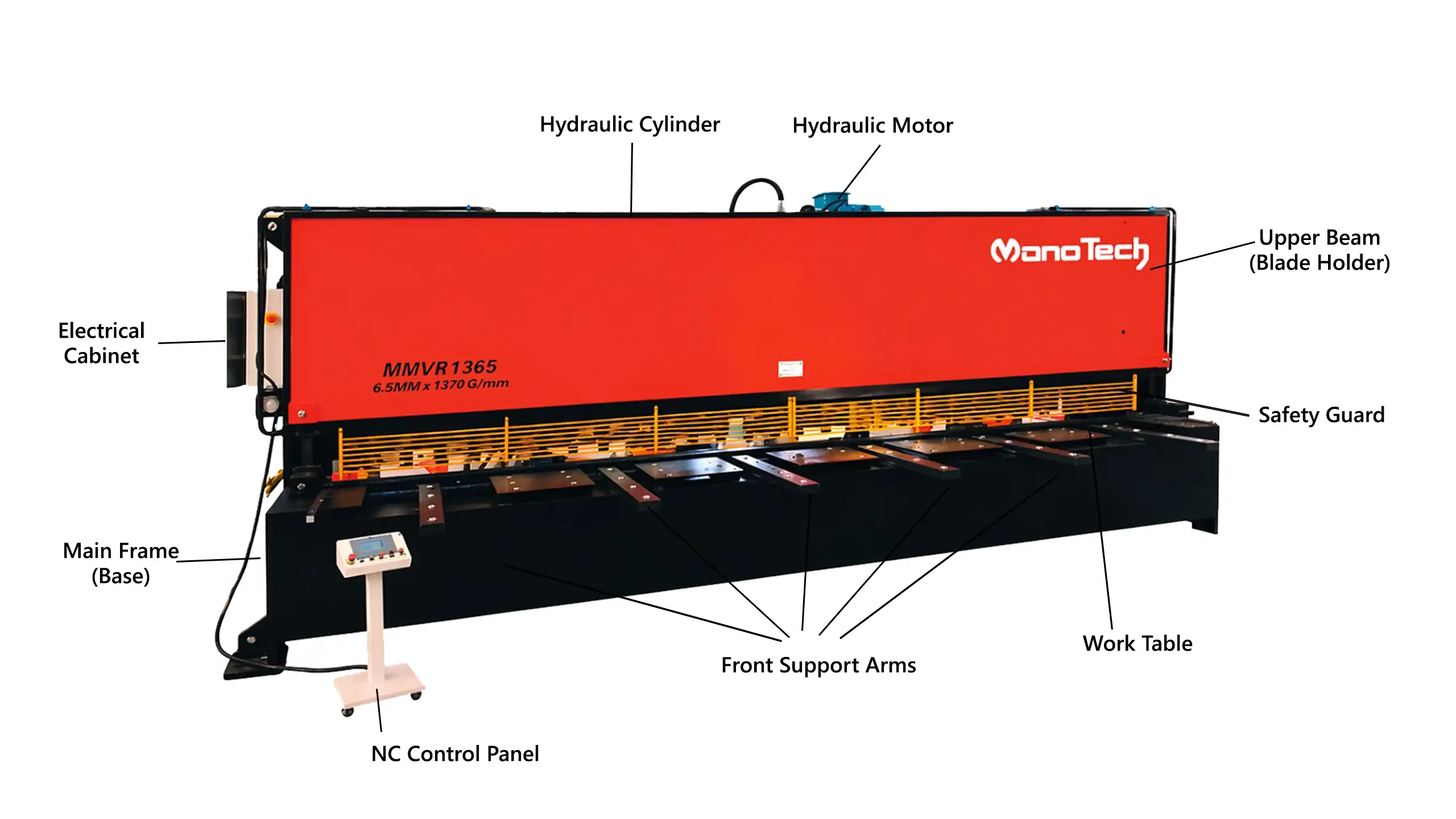

Design & Construction
- ✔7" Delta Touchscreen Controller – Simple, Smart & Intuitive: All Monotech NC Shearing Machines come equipped with a 7-inch touchscreen controller from Delta — a globally trusted brand for industrial automation. The user-friendly interface allows quick programming of sheet thickness, sizes, and number of strokes. It simplifies operation, reduces training time, and enhances precision across batches
- ✔Auto Rake Angle Adjustment: Gone are the days of manual rake angle settings via selector switches. With Monotech’s intelligent NC control system, operators simply enter the sheet thickness, and the machine automatically configures the ideal rake angle — maximizing blade life and minimizing breakdowns caused by incorrect settings.
- ✔Smart Production Programming: Our advanced controller enables you to set various sheet thicknesses, dimensions, and desired quantities. The machine follows your production plan seamlessly throughout the day using its integrated stroke counter and memory — improving throughput and reducing operator fatigue.
- ✔Four-Edge Reversible Blades: We use D2 HCHCr blades with four usable edges. Once one edge wears out, the blade can be rotated — increasing longevity and reducing maintenance costs. These are ideal for industrial settings requiring continuous high-volume cutting.
- ✔Manual Blade Gap Adjustment with Visual Guide: Adjusting the blade gap is easy and fast thanks to clearly marked scales and a guided setup. It takes less than 20 seconds, ensuring you're ready for the next sheet without wasting production time.
- ✔Right Angle & Ball Transfer Support: For increased accuracy and convenience, the machine includes a built-in right-angle guide and ball transfer units on the table — making it effortless to insert and align large sheets quickly and accurately.
- ✔Energy Efficient Operation: Unlike hydraulic systems, our NC shears are designed to deliver high cutting force while consuming less power, resulting in cost savings for manufacturers over time.
What Makes Our Design Unique?
Monotech’s NC Hydraulic Shearing Machine is engineered to deliver high cutting accuracy, smooth operation, and long-term reliability. Here’s what makes it superior:
Precision-Guided Cutting: Rigid frame construction, accurate blade alignment, and controlled backgauge movement ensure clean and consistent shearing results.
- ✔NC-Controlled Accuracy: The NC system enables precise backgauge setting for repeat jobs, reducing manual error and improving productivity.
- ✔Smooth Hydraulic Performance: Advanced hydraulic operation ensures stable blade movement, low vibration, and efficient cutting across different sheet thicknesses.
- ✔Heavy-Duty, Low-Maintenance Build: Robust machine body, quality hydraulic components, and durable blades provide long service life with minimal maintenance.
- ✔Operator-Friendly Design: Simple controls, quick setting adjustments, and safe working features make the machine easy to operate in daily production.
This design gives users the perfect balance of precision, speed, durability, and ease of operation for modern sheet metal cutting applications.
Specifications & Range
- ✔Cutting Thickness: 3 mm to 30 mm (customizable)
- ✔Cutting Width: 1500 mm to 9000 mm
- ✔Blade Material: D2 HCHCr (four-edge, reversible for extended life)
- ✔Blade Gap Adjustment: Manual with scale (easy and quick — takes only ~20 seconds)
- ✔Back Gauge Range: Programmable, NC-controlled, with stroke counter
- ✔Front Gauge: Optional motorized gauges for high-speed aluminum production
- ✔Rake Angle: Automatically adjustable via controller
- ✔Cutting Stroke: Programmable for multiple sheet sizes and thicknesses
Key Features & Accessories
Performance-Driven Design
High-Speed Precision Shearing
Pre-set approach and return speeds for faster cycle times
Hardened Cutting Blades
Long life and optimal edge finish across MS, SS, and Aluminum
Anti-Twist & Anti-Bow Systems
Maintain dimensional integrity during cutting
Safety Sensors & Guards
mechanical safety options for operator protection
Adjustable Front Support Arms
Assist with long sheets and ergonomic operation
Automatic Backgauge
NC-controlled, ensures precision movement and accuracy
Want to Know More?
Download our brochure or request more information to learn how Monotech can help you achieve your manufacturing goals.
The MONOTECH Advantage
Monotech Engineers operates with a modern, well-equipped manufacturing facility designed for precision engineering and heavy fabrication. Our infrastructure supports high-capacity production, ensuring seamless handling of raw materials, machining, assembly, and quality inspection — all under one roof. This enables faster turnaround, consistent quality, and reliable delivery timelines.
With over three decades of industry experience, Monotech Engineers has built a strong reputation in sheet metal machinery and industrial solutions. Our deep engineering expertise allows us to understand complex customer requirements and deliver machines that perform with precision, durability, and efficiency in demanding environments.
Our machines are widely used across diverse industries including automotive, fabrication, construction, and heavy engineering. From precision CNC machines to robust forming solutions, Monotech products are trusted for their performance, accuracy, and long operational life.
We believe in building long-term partnerships, not just delivering machines. Our growing base of satisfied clients reflects our commitment to quality, service, and continuous support. From installation to after-sales service, we ensure our customers operate with confidence and reliability.
Build Quality & Benefits
Heavy-Duty Frame Structure
Our NC Hydraulic Shearing Machine is built with a high-strength, welded steel frame designed to withstand continuous heavy-duty cutting operations. The structure undergoes stress-relieving treatment to eliminate internal stresses, ensuring long-term structural stability and durability. Precision engineering guarantees accurate alignment of all critical components, delivering consistent cutting performance over years of operation.
Precision Hydraulic Cutting System
The core of the machine lies in its advanced hydraulic cutting mechanism. Equipped with high-quality hydraulic cylinders and synchronized control, it ensures uniform force distribution across the entire cutting length. This results in clean, burr-free cuts, reduced material deformation, and highly repeatable performance even for demanding applications.
NC Control & Automation
The machine is integrated with an advanced NC control system that enables programmable operations and precise back gauge positioning. Operators can easily input cutting parameters such as sheet length and batch quantity, allowing automated and highly accurate operations. This reduces manual intervention, minimizes errors, and significantly improves overall productivity.
Back Gauge System
The NC-controlled back gauge system ensures precise positioning of the sheet for every cut. With high-speed motorized movement and linear guide mechanisms, it delivers accurate and repeatable positioning. This enhances cutting efficiency and ensures consistency in batch production.
NC Control & Automation
The machine is integrated with an advanced NC control system that enables programmable operations and precise back gauge positioning. Operators can easily input cutting parameters such as sheet length and batch quantity, allowing automated and highly accurate operations. This reduces manual intervention, minimizes errors, and significantly improves overall productivity.
Back Gauge System
The NC-controlled back gauge system ensures precise positioning of the sheet for every cut. With high-speed motorized movement and linear guide mechanisms, it delivers accurate and repeatable positioning. This enhances cutting efficiency and ensures consistency in batch production.
Hydraulic System Efficiency
The machine is equipped with a high-performance hydraulic system designed for smooth and energy-efficient operation. Advanced hydraulic circuits provide stable pressure and controlled blade movement, reducing energy consumption while maintaining optimal cutting performance. This leads to lower operational costs and extended machine life.
Blade Quality & Durability
Fitted with hardened and ground high-quality blades, the machine ensures superior cutting precision and extended tool life. The blades are designed to maintain sharpness over long periods, reducing the need for frequent maintenance and ensuring consistent cutting quality.
Safety & Reliability
Safety is integrated at every level with features such as emergency stop systems, protective guards, and overload protection. These ensure operator safety while maintaining uninterrupted production. The machine is designed to deliver reliable performance even in demanding industrial environments.
