PLC Hydraulic Press Brake

A Global First. Electrically Controlled Precision. Only from Monotech

At Monotech Engineers Pvt Ltd, we have redefined what’s possible with a PLC-based press brake. Our world-first innovation gives manufacturers access to a 3-axis bending machine (X, Y1, Y2) where each hydraulic cylinder (Y1 & Y2) can be adjusted separately via electrical control — without any mechanical restriction. This revolutionary system, paired with a Schneider PLC for backgauge control, makes our PLC Press Brake the most advanced in its class, and a global exclusive.

Design & Construction

  • Bending Capacity: 40 to 600 Tons
  • Bending Length: 1250 mm to 6000 mm
  • Axis Configuration: 3 Axis – X (PLC controlled), Y1 & Y2 (Electrically adjustable via limit switches)
  • Y-Axis Adjustment: Independent Y1 & Y2 setting without mechanical restriction
  • Controller: Schneider PLC (handles backgauge positioning)
  • Backgauge: Automatic, equipped with ball screw, LM guide, and timing belt
  • Frame: Heavy-duty mono-block welded structure with FEA analysis

Our Breakthrough Innovation — First in the World

Most PLC press brakes restrict Y1 & Y2 adjustment mechanically — limiting precision and reducing machine life.

Monotech’s patented design changes everything.

  • Y1 & Y2 Adjusted Electrically: No mechanical linkage. Each cylinder moves freely and independently based on electrical signals.
  • Higher Accuracy, Longer Machine Life: Eliminates mechanical stress and misalignment issues.
  • Only from Monotech: No other manufacturer in the world offers this feature — it’s our in-house R&D innovation.

This innovation gives users true CNC-like accuracy at a PLC price, without sacrificing flexibility or control.

Product Range

Model Bending Force Capacity Table Width Clear Pass Ram Stroke Open Height Depth Motor H.P. Speed App-Pre-Ret
MT-PBR-412 40 1200 x 4 150 900 100 250 200 5 35-9-60
MT-PBR-415 40 1500 x 3 150 1100 100 250 200 5 35-9-55
MT-PBR-420 40 2000 x 2.5 150 1500 100 250 200 5 35-9-55
MT-PBR-425 40 2500 x 2 150 2000 100 250 200 5 35-9-55
MT-PBR-430 40 3000 x 1.6 150 2500 100 250 200 5 35-9-55
MT-PBR-615 60 1525 x 5 175 1150 125 330 200 5 25-6-50
MT-PBR-620 60 2030 x 4 175 1500 125 330 200 5 25-6-50
MT-PBR-623 60 2540 x 3 175 2000 125 330 200 5 25-6-50
MT-PBR-630 60 3125 x 2.5 175 2500 125 330 200 5 25-6-50
MT-PBR-815 80 1525 x 6 200 1150 150 330 250 7.5 37-6-41
MT-PBR-820 80 2030 x 5 200 1500 150 330 250 7.5 37-6-41
MT-PBR-825 80 2540 x 4 200 2000 150 330 250 7.5 37-6-41
MT-PBR-830 80 3125 x 3 200 2500 150 330 250 7.5 37-6-41
MT-PBR-840 80 4000 x 2.5 200 3500 150 330 250 7.5 37-6-41
MT-PBR-1020 100 2030 x 6 200 1500 150 330 250 10 40-5-40
MT-PBR-1025 100 2540 x 5 200 2000 150 330 250 10 40-5-40
MT-PBR-1030 100 3125 x 4 200 2500 150 330 250 10 40-5-40
MT-PBR-1040 100 4000 x 3 200 3000 150 330 250 10 40-5-40
MT-PBR-1225 120 2540 x 6 200 2000 150 330 300 10 41-6-41
MT-PBR-1230 120 3125 x 5 200 2500 150 330 300 10 41-6-41
MT-PBR-1240 120 4000 x 4 200 3000 150 330 300 10 41-6-41
MT-PBR-1625 160 2540 x 8 200 2000 200 375 300 15 40-6-40
MT-PBR-1630 160 3125 x 6 200 2500 200 375 300 15 40-6-40
MT-PBR-1640 160 4000 x 5 200 3000 200 375 300 15 40-6-40
MT-PBR-2025 200 2540 x 10 250 2000 200 375 300 20 37-5-37
MT-PBR-2030 200 3125 x 8 250 2500 200 375 300 20 37-5-37
MT-PBR-2040 200 4000 x 6 250 3000 200 375 300 20 37-5-37
MT-PBR-2525 250 2540 x 13 300 2000 200 375 300 25 40-5-40
MT-PBR-2530 250 3125 x 10 300 2500 200 375 300 25 40-5-40
MT-PBR-2540 250 4000 x 8 300 3000 200 375 300 25 40-5-40
MT-PBR-3030 300 3125 x 13 300 2500 200 425 300 30 36-5-36
MT-PBR-3040 300 4000 x 10 300 3000 200 425 300 30 36-5-36
MT-PBR-4030 400 3125 x 16 300 2500 250 450 350 40 34-5-34
MT-PBR-4040 400 4000 x 13 300 3000 250 450 350 40 34-5-34
MT-PBR-5030 500 3125 x 20 400 2500 250 450 400 50 28-5-28
MT-PBR-5040 500 4000 x 16 400 3000 250 450 400 50 28-5-28

Why Monotech’s PLC Press Brake is One of a Kind?

Monotech Engineers Pvt Ltd is committed to delivering high-quality, reliable machines. Here’s why our PLC Press Brake stand out:

  • World’s Only PLC Press Brake with Independent Electrical Y1 & Y2 Adjustment
  • Gives CNC-Level Accuracy at a Fraction of CNC Cost
  • In-House Developed System — Proven, Tested, Patented
  • Best for Sheet Metal Job Shops, Cable Trays, Electrical Panels, and Enclosures
  • Budget-Friendly Automation – Simplified control with backgauge automation using Schneider PLC
  • Double Limit Switch Control – Precise cylinder movement adjustment without a complex controller
  • Made in India, Exported Globally – Serving over 44+ countries with CE and ISO 9001:2015 compliance

With Monotech, you’re investing not just in a machine, but in consistent cutting accuracy, long-term value, and dependable support.

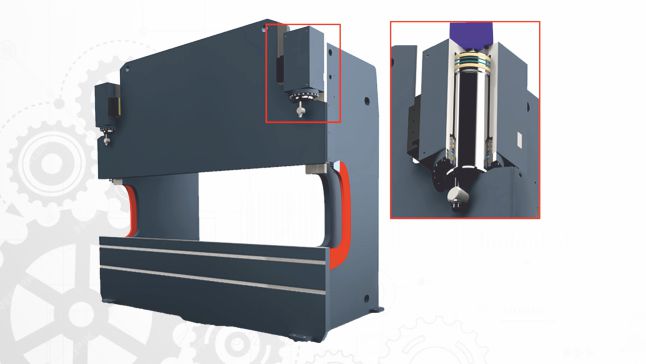

Benefits of Monotech Front Cylinder Press Brake

  • Accurate Bends due to Direct Force in direction of Gravity
  • Less Maintenance, Longer Life than Conventional Press Brake
  • Double Bed for Mechanically Crowning from centre
  • Heavier Cylinder mounted directly on the Ram
  • Operator friendly, Easily to use
  • Cylinder Rod Forged & Honed on accurate machines for Long Life
  • Back Gauge on Ball Screw with Guide Support
  • 3 Axis Hand adjustable Finger Gauge mounted on LM Guide
  • X movement through Servo Motor & Servo Drive

Press Brake Tooling

About

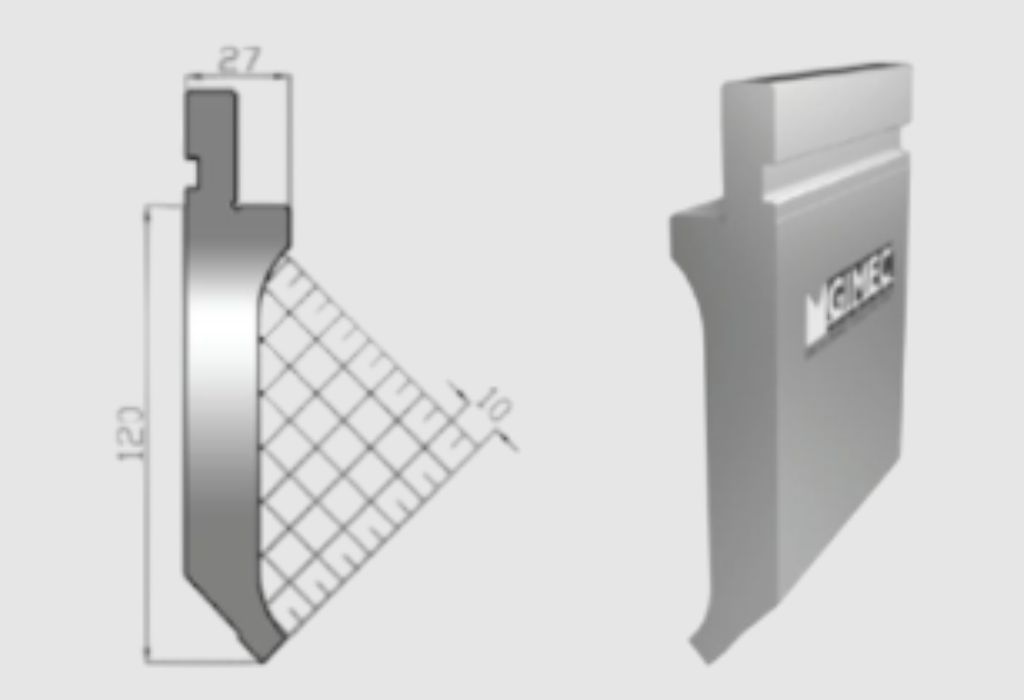

SASH PUNCH
About

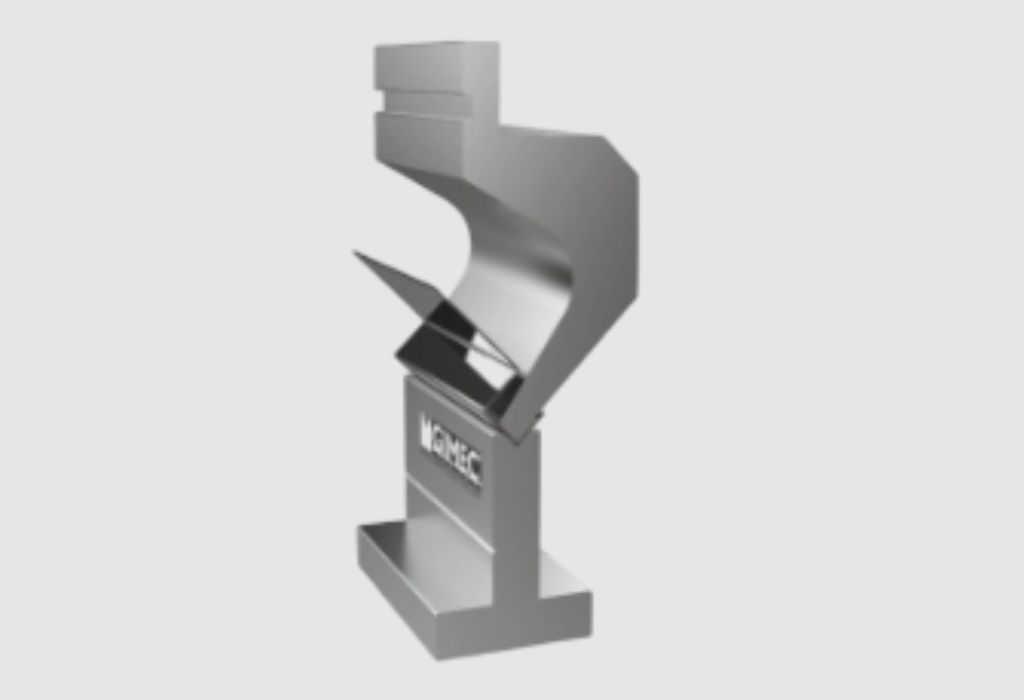

GOOSENECK PUNCH
About

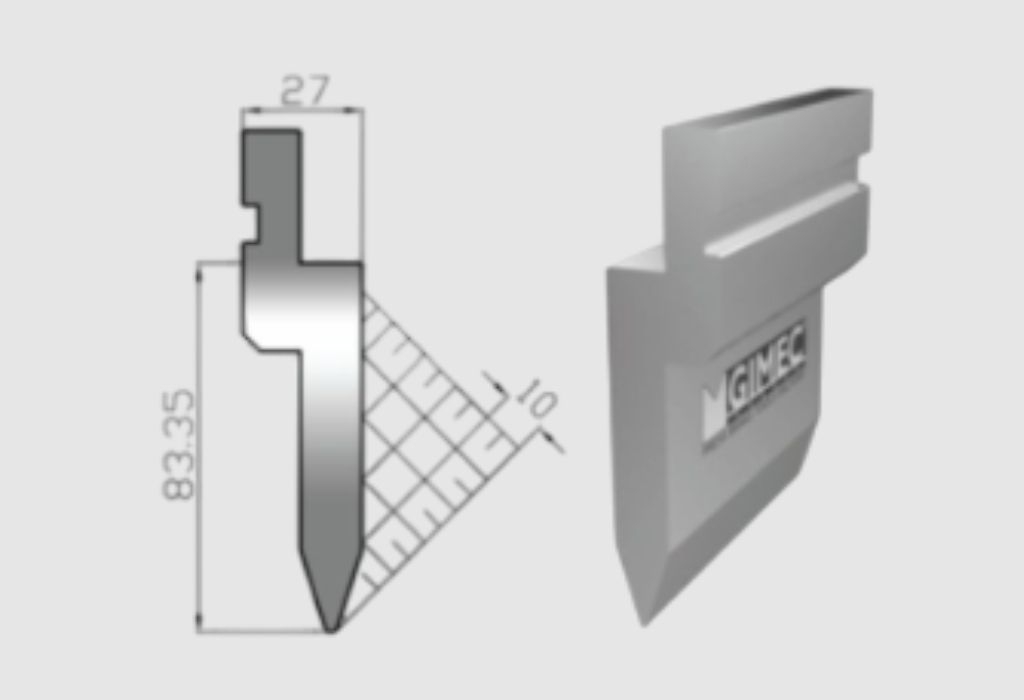

KNIFE PUNCH
About

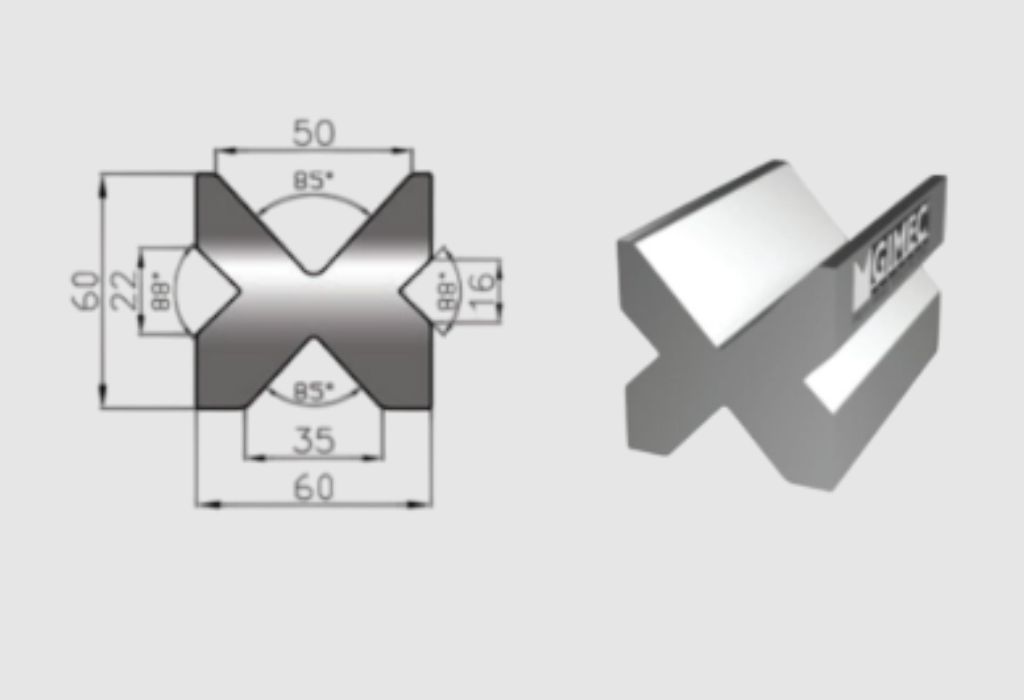

4 V DIE
About
SPRING HEMMING DIE & PUNCH
About

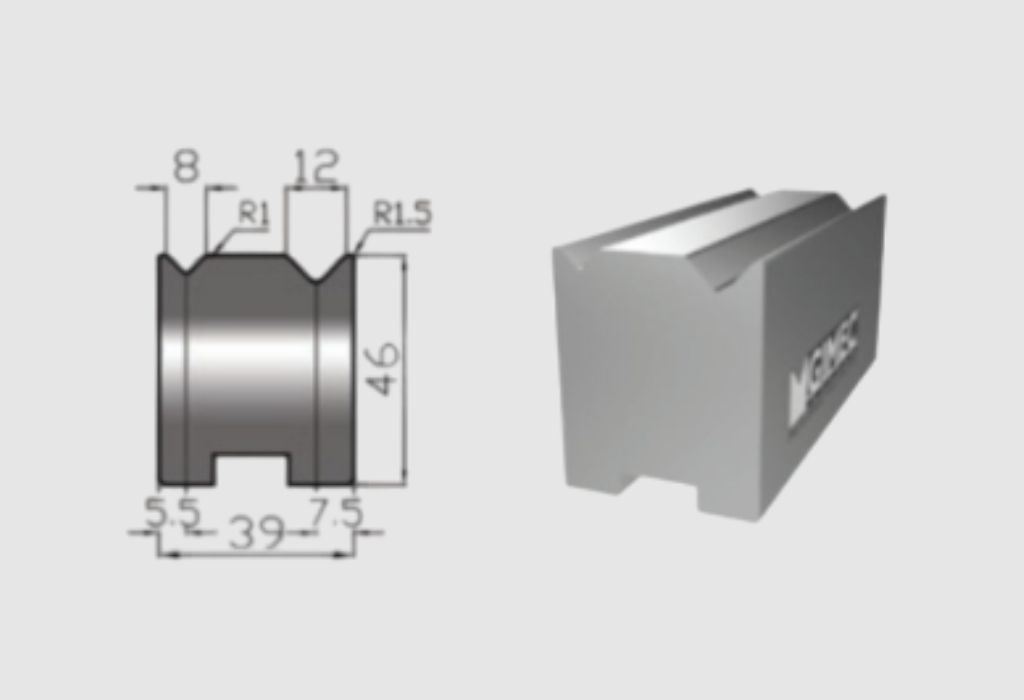

RAIL TYPE 2 V DIE

Key Features & Specifications

Performance-Driven Design
1

Control & Axis Configuration

3 Axis Control: X (via Schneider PLC), Y1 & Y2 (via electrically adjusted limit switches)

Backgauge System

  • Mounted on LM guides
  • Ball screw with timing belt
  • Crash-resistant, maintenance-free

Y1 & Y2 Precision Control: Electrically adjusted stroke stoppers — no mechanical tie

2

Structure & Components

  • FEA-analyzed frame for stability under heavy loads
  • Honed, forged cylinders with high-precision piston movement
  • HAWE or Rexroth hydraulics
  • Motors: Siemens / ABB / CG
  • Electricals: Schneider Electric (standard)
  • Tooling: European standard compatible punches & dies (optional quick-release clamps)
3

Operator-Centric Features

  • Adjustable front sheet support arms on linear guides
  • Foot switch operation
  • Optional laser or mechanical safety devices
  • Easy setup with minimal training

Faq's

Conventional PLC machines use a single mechanical stopper to control both Y1 and Y2. Our machine uses independent electrical control, allowing you to set both cylinders separately, ensuring perfect angle accuracy.

Yes — our system offers CNC-like accuracy, without the CNC controller cost. It is the most accurate PLC press brake available.

No. This machine does not use feedback scales. The accuracy is achieved through electrical stroke limiters, innovatively designed by Monotech.

Yes, the Schneider PLC controls the X-axis (backgauge) electronically.

No. This technology is developed by Monotech Engineers Pvt Ltd and is exclusively available in our machines

Our PLC Press Brake uses a Schneider PLC system for controlling the backgauge position.

We use a Double Limit Switch system to set and fine-tune the cylinder stroke range manually.

Yes, it is ideal for batch production and regular bending operations with consistent performance

Absolutely. All Monotech machines can be customized based on your sheet size and thickness requirements.

We provide tooling compatible with Indian and European standards including Sash/gooseneck Punch and multi-V/ 2V die sets.
