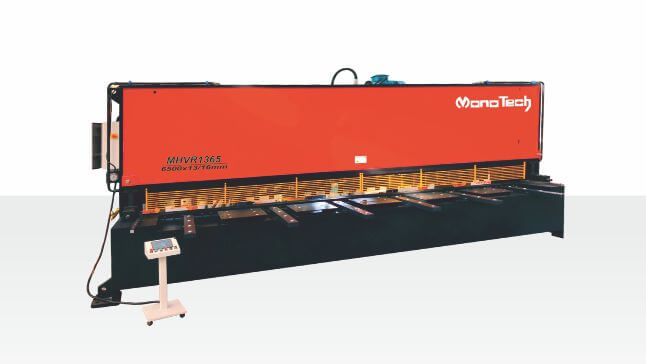

NC Shearing Machine

At Monotech Engineers Pvt Ltd, we design NC Shearing Machines that are the ideal blend of performance, precision, and usability. Engineered for heavy-duty applications, our machines cut steel and aluminum sheets with exceptional accuracy and consistency. Designed with years of manufacturing experience and customer feedback, our NC shears now offer an intuitive control system, enhanced automation, and premium-grade components that reduce downtime and improve operator efficiency.

Specifications & Range

Cutting Thickness: 3 mm to 30 mm (customizable)
Cutting Width: 1500 mm to 9000 mm
Blade Material: D2 HCHCr (four-edge, reversible for extended life)
Blade Gap Adjustment: Manual with scale (easy and quick — takes only ~20 seconds)
Back Gauge Range: Programmable, NC-controlled, with stroke counter
Front Gauge: Optional motorized gauges for high-speed aluminum production
Rake Angle: Automatically adjustable via controller
Cutting Stroke: Programmable for multiple sheet sizes and thicknesses

What Sets Monotech NC Shearing Machines Apart?

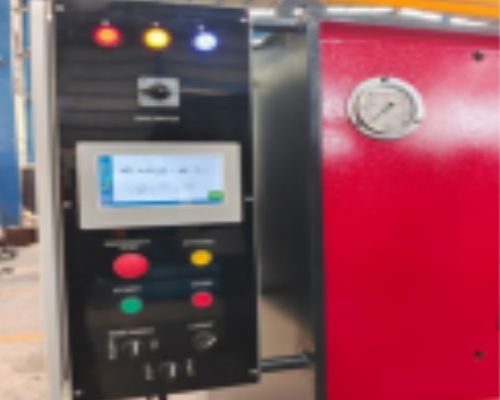

7" Delta Touchscreen Controller – Simple, Smart & Intuitive

All Monotech NC Shearing Machines come equipped with a 7-inch touchscreen controller from Delta — a globally trusted brand for industrial automation. The user-friendly interface allows quick programming of sheet thickness, sizes, and number of strokes. It simplifies operation, reduces training time, and enhances precision across batches

Auto Rake Angle Adjustment

Gone are the days of manual rake angle settings via selector switches. With Monotech’s intelligent NC control system, operators simply enter the sheet thickness, and the machine automatically configures the ideal rake angle — maximizing blade life and minimizing breakdowns caused by incorrect settings.

Smart Production Programming

Our advanced controller enables you to set various sheet thicknesses, dimensions, and desired quantities. The machine follows your production plan seamlessly throughout the day using its integrated stroke counter and memory — improving throughput and reducing operator fatigue.

Four-Edge Reversible Blades

We use D2 HCHCr blades with four usable edges. Once one edge wears out, the blade can be rotated — increasing longevity and reducing maintenance costs. These are ideal for industrial settings requiring continuous high-volume cutting.

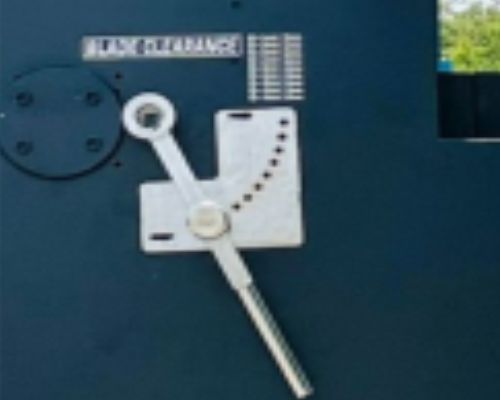

Manual Blade Gap Adjustment with Visual Guide

Adjusting the blade gap is easy and fast thanks to clearly marked scales and a guided setup. It takes less than 20 seconds, ensuring you're ready for the next sheet without wasting production time.

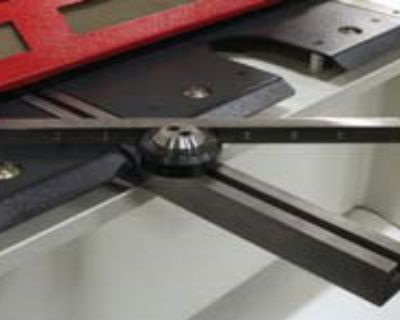

Right Angle & Ball Transfer Support

For increased accuracy and convenience, the machine includes a built-in right-angle guide and ball transfer units on the table — making it effortless to insert and align large sheets quickly and accurately.

Energy Efficient Operation

Unlike hydraulic systems, our NC shears are designed to deliver high cutting force while consuming less power, resulting in cost savings for manufacturers over time.

Product Range

Model	Cutting Length mm	Normal Rake Angle (M.S)	Maximum Rake Angle (M.S)	Normal Rake Angle (S.S)	Maximum Rake Angle (S.S)	Variable Rake Angle	Stroke/Minute Min & Max. Rake Angle	Hold Downs	Power HP.
MT- HVR- 315	1500	3	4	2	3	0.5-3°	24 / 12	9	5
MT- HVR- 325	2500	3	4	2	3	0.5-3°	20 / 10	13	5
MT- HVR- 330	3000	3	4	2	3	0.5-3°	18 / 9	17	7.5
MT- HVR- 415	1500	4	6	3	4	0.5-3°	22 / 11	9	5
MT- HVR- 425	2500	4	6	3	4	0.5-3°	18 / 9	13	7.5
MT- HVR- 430	3000	4	6	3	4	0.5-3°	16 / 8	17	10
MT- HVR- 615	1500	6	8	4	6	0.5-3°	20 / 10	9	7.5
MT- HVR- 625	2500	6	8	4	6	0.5-3°	16 / 8	13	10
MT- HVR- 630	3000	6	8	4	6	0.5-3°	14 / 7	17	15
MT- HVR- 815	1500	8	10	4	6	0.5-3°	18 / 9	9	10
MT- HVR- 825	2500	8	10	4	6	0.5-3°	14 / 7	13	15
MT- HVR- 830	3000	8	10	4	6	0.5-3°	12 / 6	17	20
MT- HVR- 840	4000	8	10	4	6	0.5-3°	10 / 5	21	25
MT- HVR- 850	5000	8	10	4	6	0.5-3°	8 / 4	25	30
MT- HVR- 860	6000	8	10	4	6	0.5-3°	6 / 3	30	30
MT- HVR- 1015	1500	10	13	6	8	0.5-3°	16 / 8	9	10
MT- HVR- 1025	2500	10	13	6	8	0.5-3°	12 / 6	13	15
MT- HVR- 1030	3000	10	13	6	8	0.5-3°	10 / 5	17	15
MT- HVR- 1040	4000	10	13	6	8	0.5-3°	8 / 4	21	20
MT- HVR- 1050	5000	10	13	6	8	0.5-3°	6 / 3	25	25
MT- HVR- 1060	6000	10	13	6	8	0.5-3°	6 / 3	30	30
MT- HVR- 1315	1500	13	16	8	10	1-4°	14 / 7	9	15
MT- HVR- 1325	2500	13	16	8	10	1-4°	10 / 5	13	20
MT- HVR- 1330	3000	13	16	8	10	1-4°	8 / 4	17	25
MT- HVR- 1340	4000	13	16	8	10	1-4°	6 / 3	21	25
MT- HVR- 1350	5000	13	16	8	10	1-4°	6 / 3	25	30
MT- HVR- 1360	6000	13	16	8	10	1-4°	4 / 2	30	40
MT- HVR- 1615	1500	16	20	10	13	1-4°	12 / 6	9	20
MT- HVR- 1625	2500	16	20	10	13	1-4°	8 / 4	13	25
MT- HVR- 1630	3000	16	20	10	13	1-4°	6 / 3	17	30
MT- HVR- 1640	4000	16	20	10	13	1-4°	6 / 3	21	30
MT- HVR- 1650	5000	16	20	10	13	1-4°	4 / 2	25	35
MT- HVR- 1660	6000	16	20	10	13	1-4°	4 / 2	30	40
MT- HVR- 2025	2500	20	25	13	16	1-4°	6 / 3	13	40
MT- HVR- 2030	3000	20	25	13	16	1-4°	6 / 3	17	40
MT- HVR- 2040	4000	20	25	13	16	1-4°	4 / 2	21	50
MT- HVR- 2050	5000	20	25	13	16	1-4°	4 / 2	25	60
MT- HVR- 2060	6000	20	25	13	16	1-4°	4 / 2	30	40
MT- HVR- 2525	2500	25	30	16	20	1-4°	6 / 2	13	60
MT- HVR- 2530	3000	25	30	16	20	1-4°	4 / 2	17	60
MT- HVR- 2540	4000	25	30	16	20	1-4°	4 / 2	21	75
MT- HVR- 2550	5000	25	30	16	20	1-4°	2 / 2	25	75
MT- HVR- 2560	6000	25	30	16	20	1-4°	2 / 2	30	75

Why Choose Monotech’s NC Shearing Machine?

Monotech Engineers Pvt Ltd is committed to delivering high-quality, reliable machines. Here’s why our NC Shearing Machines stand out:

Customized Build for Every Need – From blade length to cutting power, we tailor everything to your job requirements.
Proven Expertise Since 1991 – 33+ years, 9000+ machines, and a legacy of trust.
In-House Manufacturing & R&D – Faster delivery, higher control, and consistent innovation.
End-to-End Support – From installation and training to spares and AMCs, we’re always by your side.
Export Ready – CE-certified, ISO 9001:2015-compliant machines trusted globally.

With Monotech, you’re investing not just in a machine, but in consistent cutting accuracy, long-term value, and dependable support.

Optional Enhancements

Motorized Front Gauges: Ideal for aluminum sheet industries requiring faster front-end alignment.
Sheet Support Systems: For easier handling of wide or thin sheets.

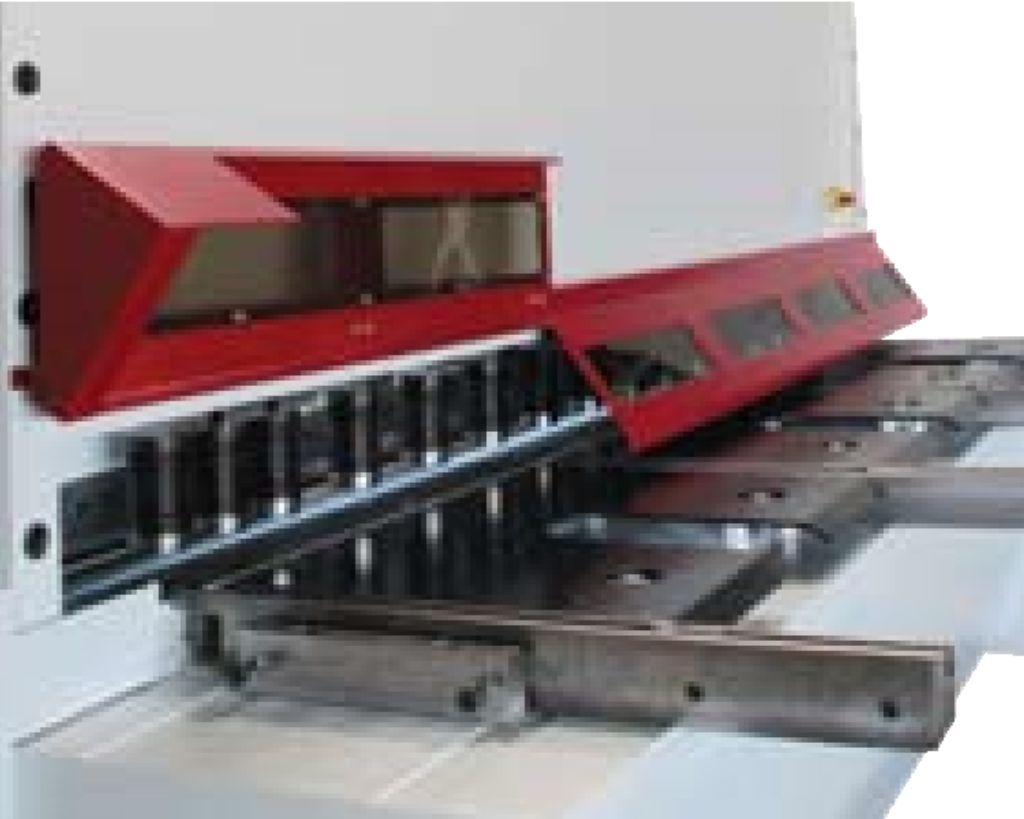

Advanced Safety Features: Light curtains and mechanical guards for enhanced operator protection.
Hold Down Covers: Ideal for thin sheets, to prevent marks coming due to hold down cylinders.
T Slotted front Support arms with Scale & Flip Stop
Angle Gauge

1000 mm lift-up front finger guard with electrically interlocked safety switch

T-slotted front support arms with scale and flip-stop

Angle gauge

Controller For Shearing

Easy Operating

7 Digital Touch Color Display
Delta Pic Controller

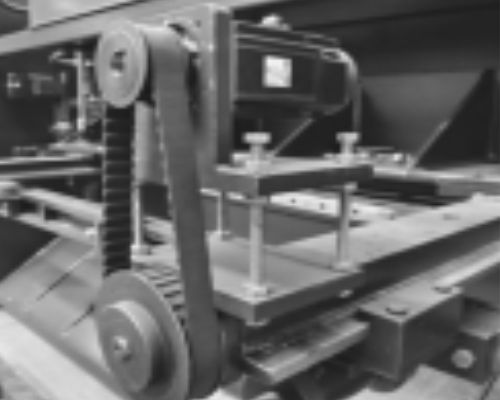

X-Axis Motorized Back Gauge
Open Loop Stepper Motor
Harden Ball Screw
Automatic Rake Angle Adjustment

Cutting Length Timer
Auto Program Function
10 Program Storage Stroke Counter
Stroke Length
Adjustment

High-Speed Precision Shearing

Pre-set approach and return speeds for faster cycle times

Hardened Cutting Blades

Long life and optimal edge finish across MS, SS, and Aluminum

Anti-Twist & Anti-Bow Systems

Maintain dimensional integrity during cutting

Safety Sensors & Guards

mechanical safety options for operator protection

Adjustable Front Support Arms

Assist with long sheets and ergonomic operation

Automatic Backgauge

NC-controlled, ensures precision movement and accuracy

Faq's

What is an NC Shearing Machine and how does it work?

An NC (Numerically Controlled) Shearing Machine is a programmable sheet metal cutting machine that uses a controller to automate cutting dimensions, rake angle, and stroke count. Operators can set thickness, length, and number of cuts on the Delta 7" touchscreen, making it ideal for repetitive batch production with high accuracy.

What materials can be cut with Monotech NC Shearing Machines?

Our NC shearing machines are designed to cut mild steel, stainless steel, aluminum, and other sheet metals. With automatic rake angle adjustment and blade gap control, clean and burr-free cuts are achievable across various material types and thicknesses

What is the maximum cutting capacity of your NC shearing machines?

We manufacture NC shearing machines for sheet thicknesses from 3 mm up to 30 mm and cutting widths from 1500 mm to 9000 mm, depending on customer requirements.

What type of blades are used in your NC shearing machines?

Our machines come standard with high-durability D2 HCHCr blades that are 4-edge reversible, offering extended life. Optional blades made of EN31 or EN8 are available for specialized cutting needs.

Can the rake angle and stroke length be adjusted automatically?

Yes, Monotech NC shearing machines offer automatic rake angle adjustment and auto stroke length settings through the built-in controller. This enhances blade life, reduces breakdowns, and improves cut precision.

Does the machine support programmable batch cutting?

Absolutely. Operators can input multiple sheet thicknesses, dimensions, and the number of cuts per batch. The built-in stroke counter and intelligent logic handle the sequence with minimal supervision.

Is blade gap adjustment automatic or manual?

Blade gap adjustment is manual but very simple and fast, aided by marked settings and a scale. The operator can complete the adjustment in under 20 seconds.

What kind of controller is used in your NC Shearing Machines?

We use a user-friendly 7-inch Delta touchscreen controller, allowing intuitive input and full customization of cutting programs.

What optional features are available with the NC Shearing Machine?

Optional features include:

Motorized front gauges for high-speed aluminum cutting
Special protective hold-down covers to prevent marks on thinner sheets
Ball transfer tables for effortless sheet feeding
Custom blade materials (EN31, EN8) based on your application

Do you provide installation and training?

Yes, we provide complete installation, on-site training for operators, and technical support post-sale. Annual Maintenance Contracts (AMCs) are also available for long-term service assurance.
