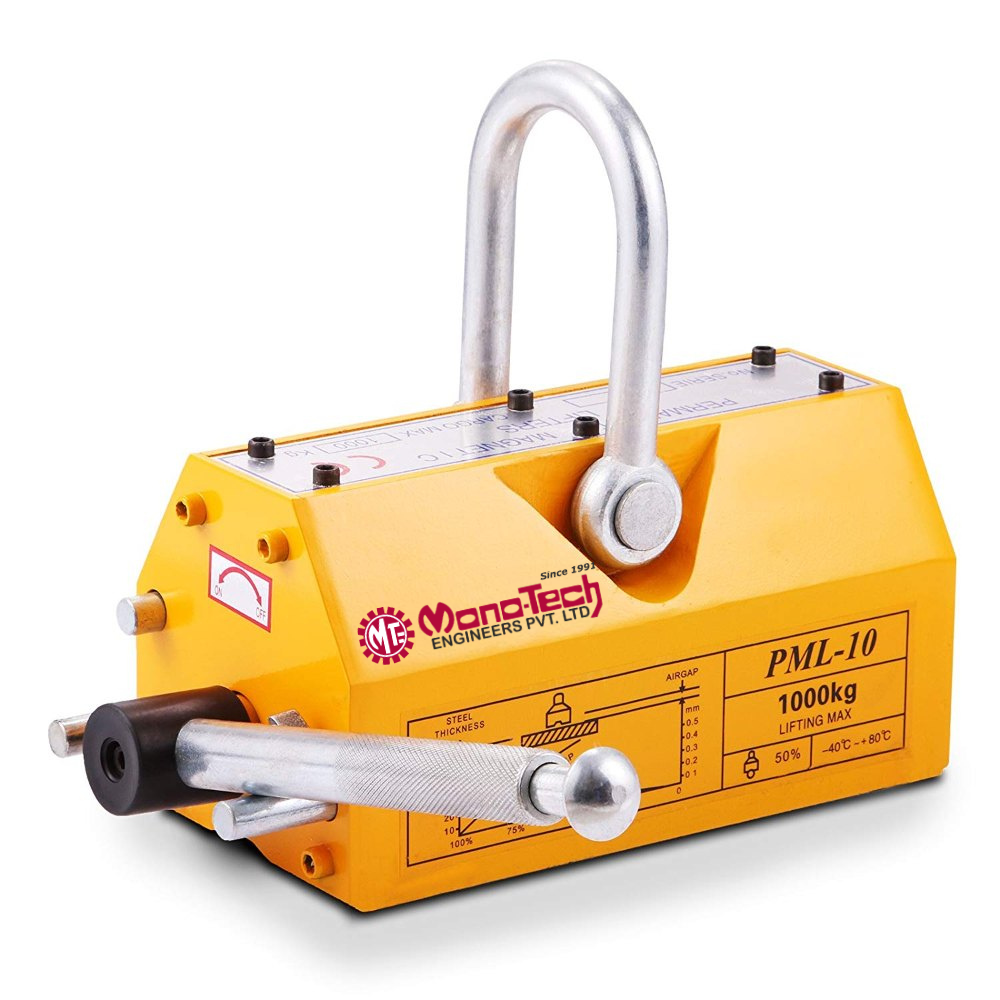

Permanent Lifting Magnet
Features
- Small and compact size, enabling easy handling.
- Powered by strong Rare Earth NdFeB magnets.
- Actuating Lever.
- Labour and time saving.
- Suitable for both round and flat components.
- Finds a major application near flame cutting and during fabrication job.
- Used for handling steel plates, blocks, rounds, press moulds and die tools loading/unloading in machines
Application
- Used for handling steel plates, blocks, rounds, press moulds and die tools loading/unloading in machines.
- Finds a major application near flame cutting and during fabrication job.
Rated Capacity |
Dimension |
|
|
Job Size Range |
||||||
Flat (Kgs.) |
Dia (Kgs.) |
L |
W |
H |
R |
SW (Kgs.) |
TFL (Kgs.) |
L |
W |
(Ø) |
100 |
45 |
135 |
70 |
140 |
160 |
4 |
300 |
1200 |
800 |
40-100 |
200 |
90 |
175 |
70 |
140 |
160 |
6 |
600 |
1200 |
800 |
40-100 |
300 |
125 |
195 |
90 |
170 |
210 |
9 |
900 |
2000 |
1200 |
40-160 |
500 |
225 |
255 |
100 |
210 |
180 |
18 |
1500 |
2500 |
1500 |
40-200 |
1000 |
450 |
355 |
142 |
290 |
375 |
43 |
3000 |
3000 |
2000 |
60-350 |
2000 |
900 |
445 |
182 |
335 |
430 |
88 |
6000 |
3500 |
2000 |
80-400 |
3000 |
1350 |
470 |
260 |
425 |
750 |
175 |
9000 |
3500 |
2000 |
80-400 |
LIFTING MAGNETS - SHEET LIFTER
Features
- Simple, easy, flexible, economical and light weight.
- Can swivel 150º and lift sheets vertically and horizontally.
- Optimum flux density- lifts thick & thin sheets.
- Magnet always on.
Application
- Usefull on shop floor for stacking of steel sheets upto sizes 1000 X 2000mm.
- Loading/Unloading of plates from planner, boring, milling machines.
- Most suitable near flame cutting machines.
